Partiron

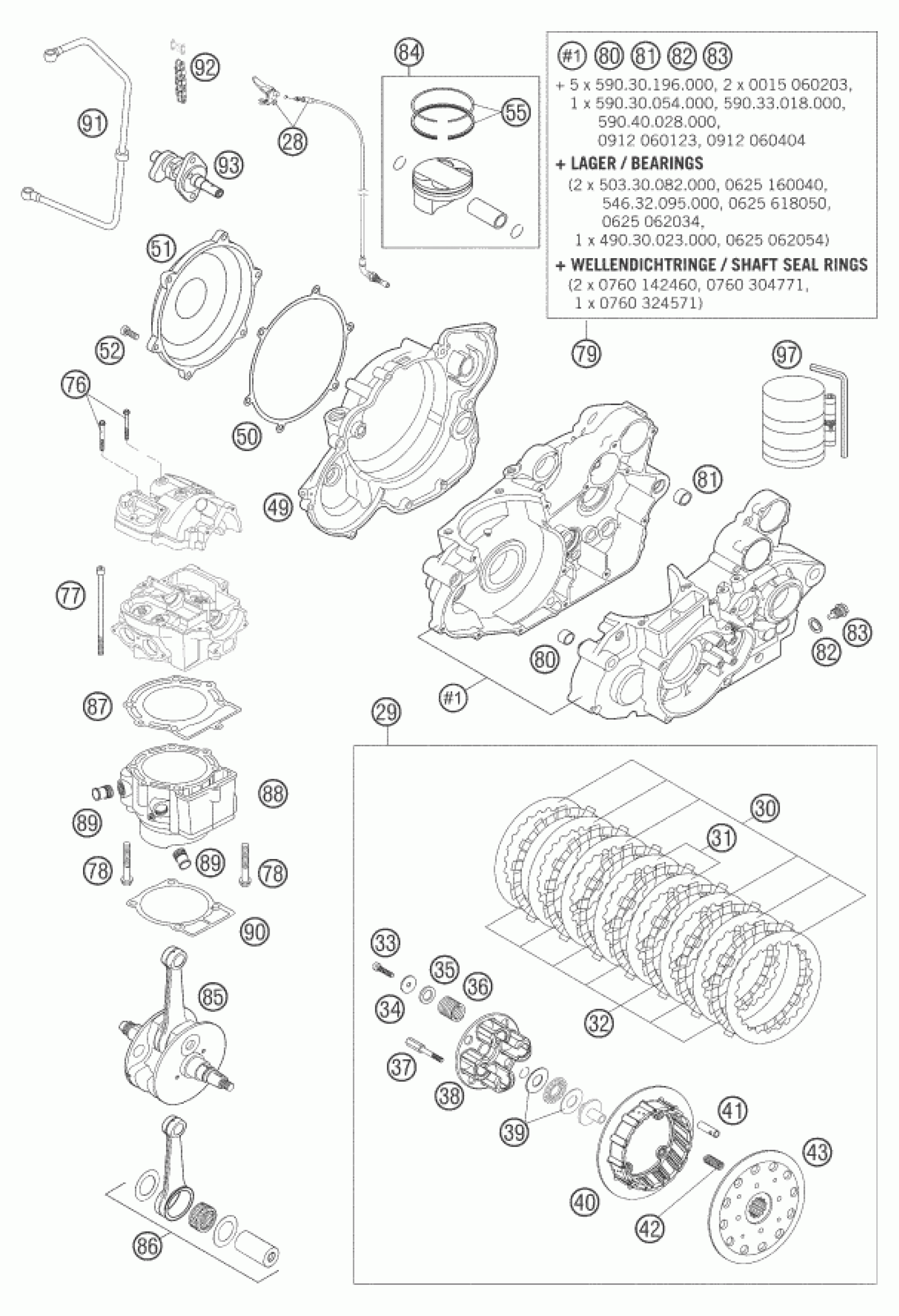

KTM 540 SXS RACING 2005 Other Diagram

#

Description
Price

29

% ANTIHOPPING CLUTCH 05

59032000100

Unavailable

30

INTERMEDIATE DISC 1MM 2002

59032010100

Unavailable

31

INTERMEDIATE DISC 1,4MM 2002

59032010200

Unavailable

32

LINING DISC 2MM 04

59032011100

Unavailable

34

WASHER 5,5X20X1,5

59032006100

Unavailable

35

ADJUST. SHIM 12,5X20X1 05

59032006200

Unavailable

35

ADJUST. SHIM 12,5X20X2 05

59032006300

Unavailable

35

ADJUST. SHIM 12,5X20X1,5 05

59032006400

Unavailable

36

CLUTCH SPRING APTC 2004

59032005100

Unavailable

37

SAFETY SCREW APTC 2004

59032007100

Unavailable

38

PRESSURE CAP APTC 2004

59032003400

Unavailable

39

AXIAL WASHER AS1226 12X26X1

54637098200

Unavailable

40

OUTER CLUTCH APTC 2004

59032002450

Unavailable

41

DRIVING SLEEVE APTC 2004

59032004100

Unavailable

42

OPENING SPRING APTC 04

59032004200

Unavailable

43

INNER HUB APTC 2004

59032002400

Unavailable

49

* INNER CLUTCH COVER CPL. 04

SXS04450244

Unavailable

50

GASKET FOR OUTER CLUTCH COVER

SXS04450036

Unavailable

51

OUTER CLUTCH COVER 04

SXS04450235

Unavailable

55

PISTONRING SET 03

SXS03530017

Unavailable

76

AH SCREW DIN0912-M 6X55 12.9

0912060551

Unavailable

77

AH SCREW DIN 912 M10X150 10.9

0912101503

Unavailable

79

ENGINE CASE CPL. 540 SXS 04

SXS04530006

Unavailable

80

DOWEL 17 X 13 X 12

51030026100

Unavailable

81

DOWEL 17 X 19 X 12

59030024000

Unavailable

82

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

83

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

84

PISTON CPL. D=100MM 04

SXS04530016

Unavailable

85

CRANKSHAFT STROKE=68 L=121

SXS03530020

Unavailable

86

CON. ROD REP. SET 03

SXS03530021

Unavailable

87

CYLINDER HEAD GASKET D=100

SXS03530014

Unavailable

88

CYLINDER D=100MM, L=76MM

SXS03530010

Unavailable

89

HOSE CONNECTOR M20X1,5

SXS04530014

Unavailable

90

CYLINDER BASE GASKET

SXS03530012

Unavailable

91

OIL PIPE 01

59838035000

Unavailable

92

TIMING CHAIN 94 ROLLS 02

59836013000

Unavailable

93

CAMSHAFT 8/06

59036010100

Unavailable

97

PISTON RING COMPRESSOR CPL. 03

60029015000

Unavailable
