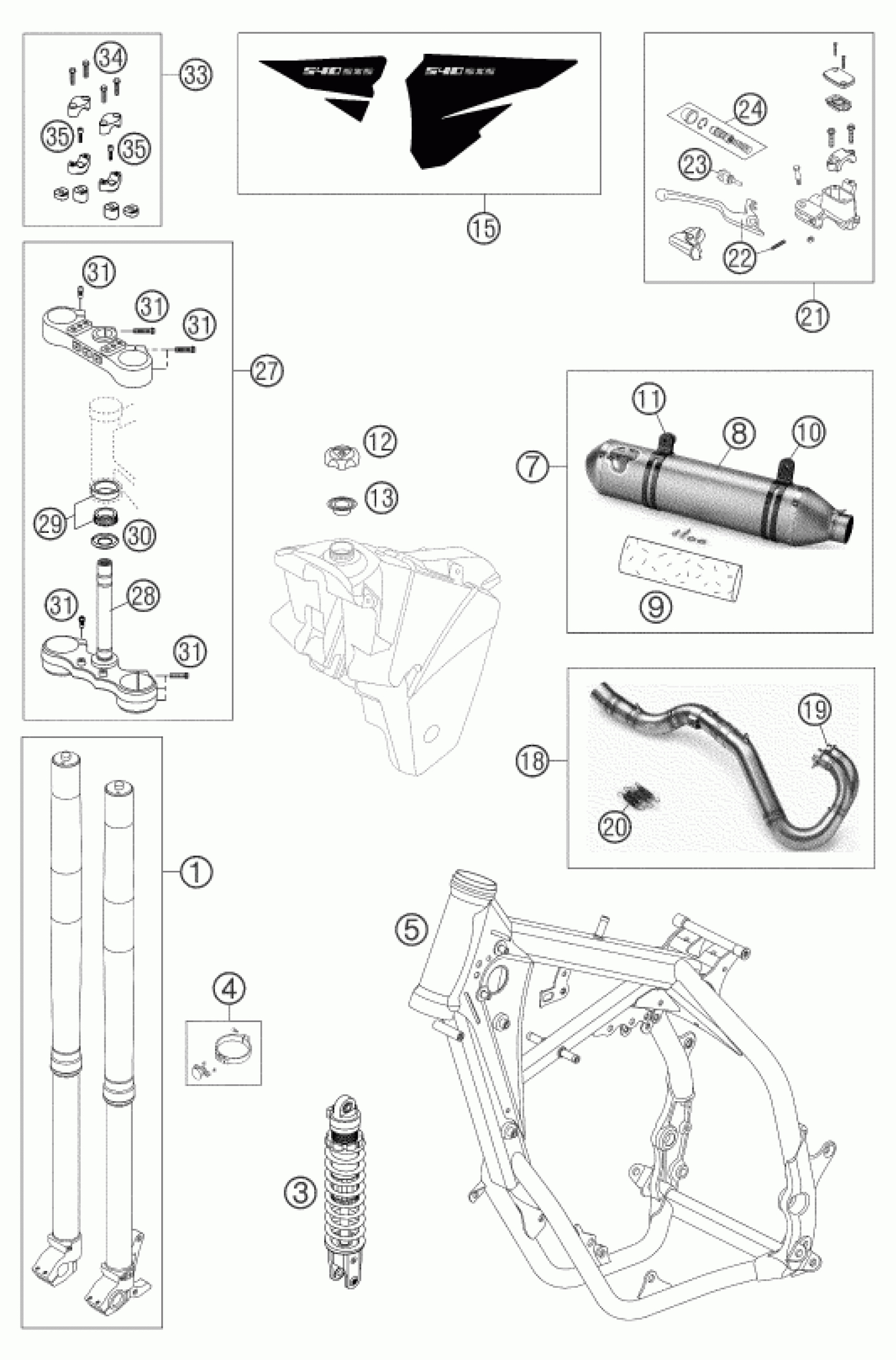

KTM 540 SXS RACING 2004 NEW PARTS Diagram

#

Description
Price

1

FORK 4860 MXMA 48MM 04

1418Y762

Unavailable

3

% MONOSHOCK 5018 PDS SXS

1218Y780

Unavailable

4

% FACTORY START

SXS04540100

Unavailable

5

FRAME 450/540 SXS 04

SXS04450050

Unavailable

7

% SILENCER TITAN SXS 2004

SXS04540502

Unavailable

8

REPAIR KIT

SXS02540507

Unavailable

9

STFFING YARN-KIT L=560MM 02

SXS02540505

Unavailable

10

CLAMP FRONT

SXS02540503

Unavailable

11

% CLAMP F.SILENC. CARBON REAR

SXS02540504

Unavailable

12

SXS FUEL TANK CAP

SXS03540700

Unavailable

13

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

15

DISPLACEME. STICKER 540 SXS 04

59008191700

Unavailable

18

FACTORY HEADERS TITAN SXS 04

SXS04540500

Unavailable

19

EXHAUST FLANGE 03

SXS02540506

Unavailable

20

EXHAUST-SPRING WITH RUBBER 02

57305016000

Unavailable

21

HAND BRAKE CYLINDER CPL. SX 05

54813001000

Unavailable

22

HAND BRAKE LEVER + SPRING '05

54813002000

Unavailable

23

ADJUSTING SCREW CPL. SX 2005

54813007000

Unavailable

24

REP.SET PISTON D=10MM SX 05

54813008000

Unavailable

27

* TRIP.CLAMP KIT MLD CPL.20MM

59501099020

Unavailable

28

FORK TUBE L=244 '91

50101033100

Unavailable

29

TAPERED ROLLER BEARING CPL.

54201081000

Unavailable

30

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

31

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

33

% HANDLEBAR SUPPORT CPL.D=28MM

59501039044

Unavailable

34

HH COLLAR SCREW M 8X25 WS=10

0015080253

Unavailable

35

AH SCREW DIN6912-M10X25,10.9

0912100250

Unavailable

35

AH SCREW DIN6912-M10X35 10.9

0912100356

Unavailable

35

AH SCREW DIN6912-M10X45 10.9

0912100456

Unavailable
