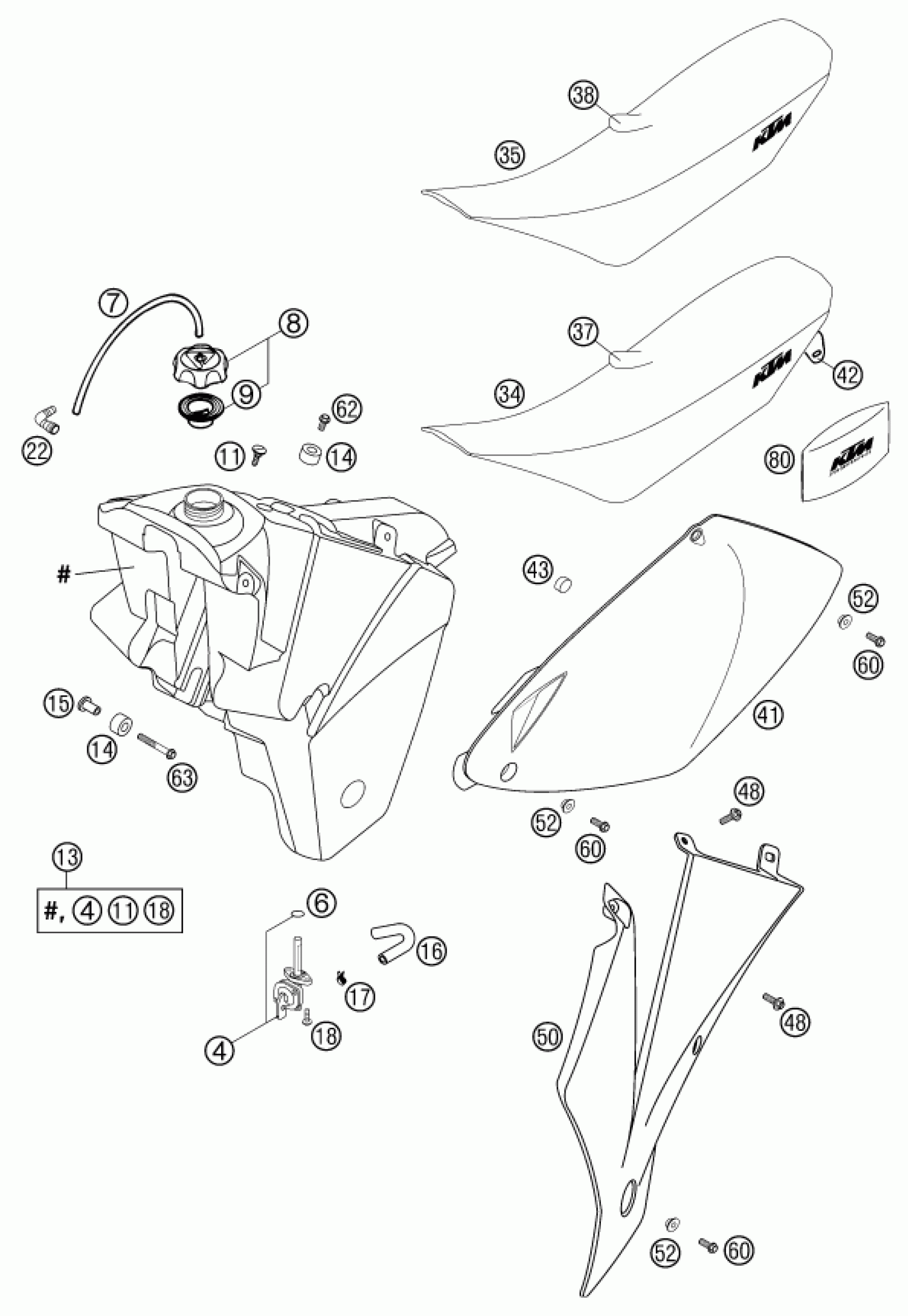

KTM 540 SXS RACING 2003 TANK, SEAT Diagram

#

Description
Price

6

O-RING 13,00X2,30

0770130023

Unavailable

4

GAS COCK MIKUNI ON/OFF 2001

50307005000

Unavailable

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

FILLER CAP CPL. WITH VALVE

59007008044

Unavailable

9

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

11

SCREW SEAT FASTENING D=6X23/18

50307011000

Unavailable

13

FUEL TANK CPL. SX 6,5L 03

5900711300004

Unavailable

14

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

15

SUPORT BUSHING TANKROLLER

59003001055

Unavailable

16

FUEL HOSE 7,5X13MM

59007016000

Unavailable

17

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

18

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

22

ANGLE PIECE 90 DEGREE M10X1

51030022000

Unavailable

34

SEAT BLACK WITH KTM-LOGO 03

50307140200

Unavailable

35

SEAT BLACK WITH KTM-LOGO 03

54807040000

Unavailable

37

SEAT COVER BLACK 03

50307140250

Unavailable

38

SEAT COVER BLACK 03

54807040050

Unavailable

41

SIDE COVER L/S ORANGE 03

5030804100004

Unavailable

0

SIDE COVER R/S ORANGE 03

5030804200004

Unavailable

42

SEAT BRACKET L/S-R/S '98

50307041000

Unavailable

43

RUBBER FOR SIDE COVER '98

50308042055

Unavailable

48

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

50

SPOILER L/S ORANGE SX 2001

5030815000004

Unavailable

0

SPOILER R/S ORANGE SX 2001

5030815100004

Unavailable

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

60

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

62

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

63

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

80

ORIGINAL EQUIPMENT TOOL KIT

59029099000

Unavailable
