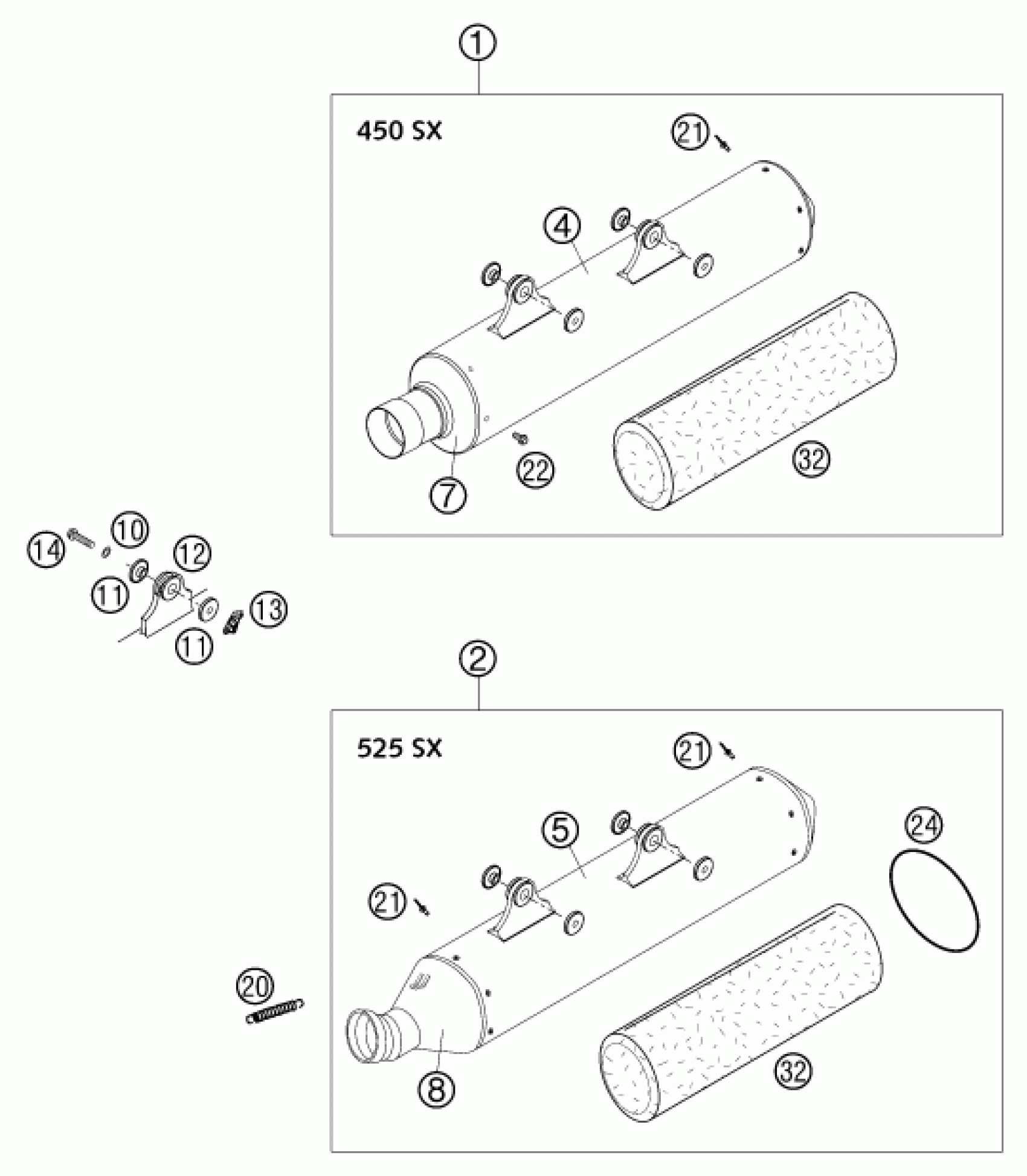

KTM 540 SXS RACING 2003 EXHAUST SYSTEM Diagram

#

Description
Price

1

SILENCER 450 SX 03

59405079000

Unavailable

2

SILENCER 400/520 SX 2002

59005079200

Unavailable

4

SILENCER HOUSING CPL. SX 03

59405079050

Unavailable

5

SILENCER HOUSING SX 2002

59005079150

Unavailable

7

SILENCENER CONNECT. CAP CPL.03

59405079009

Unavailable

8

SILENC.CONNECTING CAP CPL.2000

59005081052

Unavailable

10

spring washer DIN 137 B - 6

0137060003

Unavailable

11

BUSHING 7,5X12X28X7,8 '96

54605069000

Unavailable

12

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

13

clip nut M6

54603048100

Unavailable

14

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

21

DUMMY RIVET 4,8X10,0 NIRO

0011481002

Unavailable

22

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

24

O-RING 82,14X3,53 SILICONE

0770223601

Unavailable

32

STUFF.YARN 550GRAM L=550MM SX

59005078550

Unavailable
