Partiron

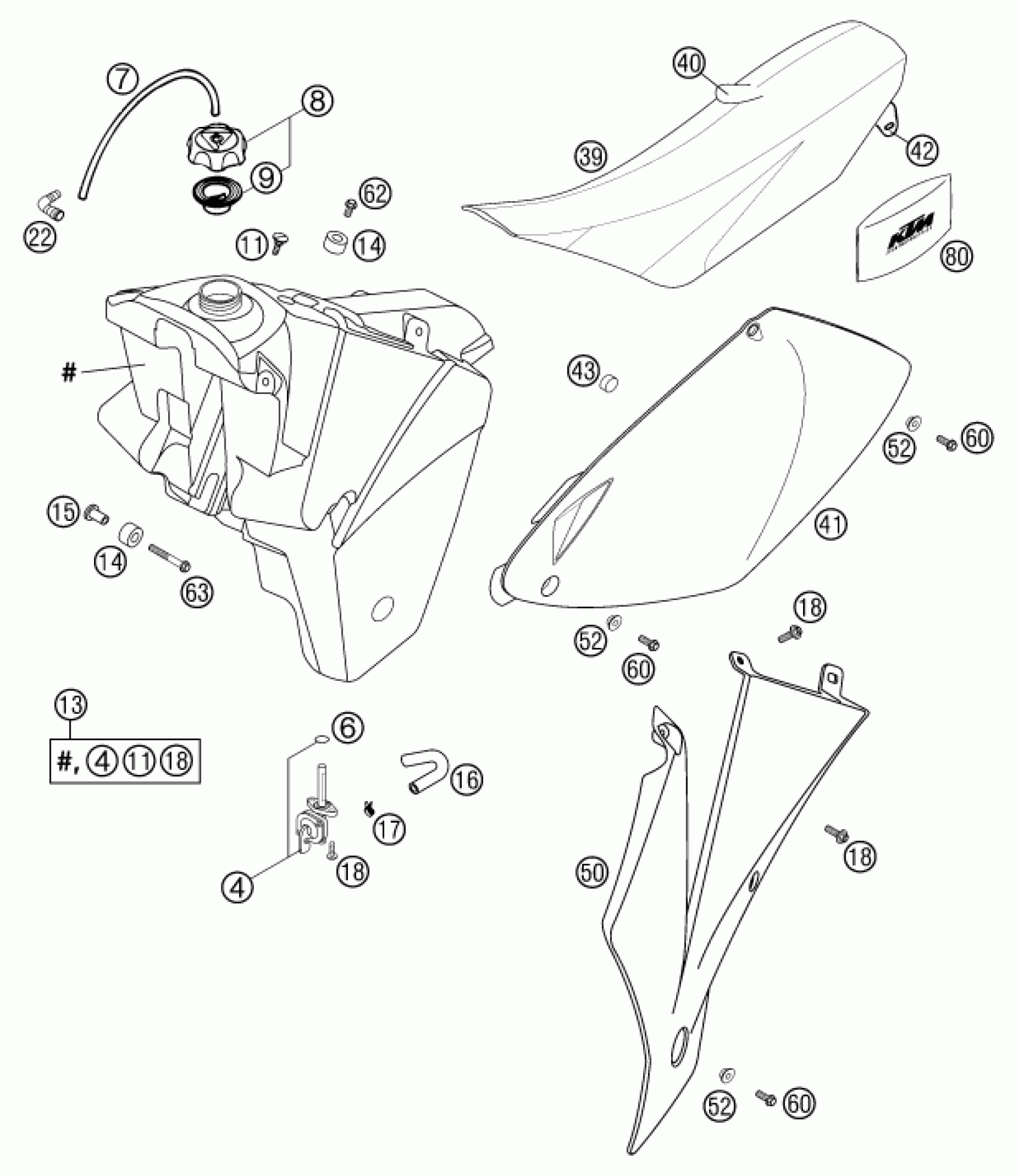

KTM 540 SXS RACING 2002 TANK, SEAT Diagram

#

Description
Price

4

GAS COCK MIKUNI ON/OFF 2001

50307005000

Unavailable

6

O-RING 13,00X2,30

0770130023

Unavailable

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

FILLER CAP CPL. WITH VALVE

59007008044

Unavailable

9

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

11

SCREW SEAT FASTENING D=6X23/18

50307011000

Unavailable

13

FUEL TANK CPL.7,5L. RAC.SX2001

59007113000

Unavailable

14

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

15

SUPORT BUSHING TANKROLLER

59003001055

Unavailable

16

FUEL HOSE 7,5X13MM

59007016000

Unavailable

17

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

18

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

22

ANGLE PIECE 90 DEGREE M10X1

51030022000

Unavailable

39

SEAT SX 2002

50307140100

Unavailable

40

SEAT COVER SX 2002

50307140150

Unavailable

41

SIDE COVER L/S BLACK '99

5030804100030

Unavailable

0

SIDE COVER R/S BLACK '99

5030804200030

Unavailable

42

SEAT BRACKET L/S-R/S '98

50307041000

Unavailable

43

RUBBER FOR SIDE COVER '98

50308042055

Unavailable

50

SPOILER L/S ORANGE SX 2001

5030815000004

Unavailable

0

SPOILER R/S ORANGE SX 2001

5030815100004

Unavailable

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

60

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

62

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

63

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

80

ORIGINAL EQUIPMENT TOOL KIT

59029099000

Unavailable
