FRONT FORK DISASSEMBLED

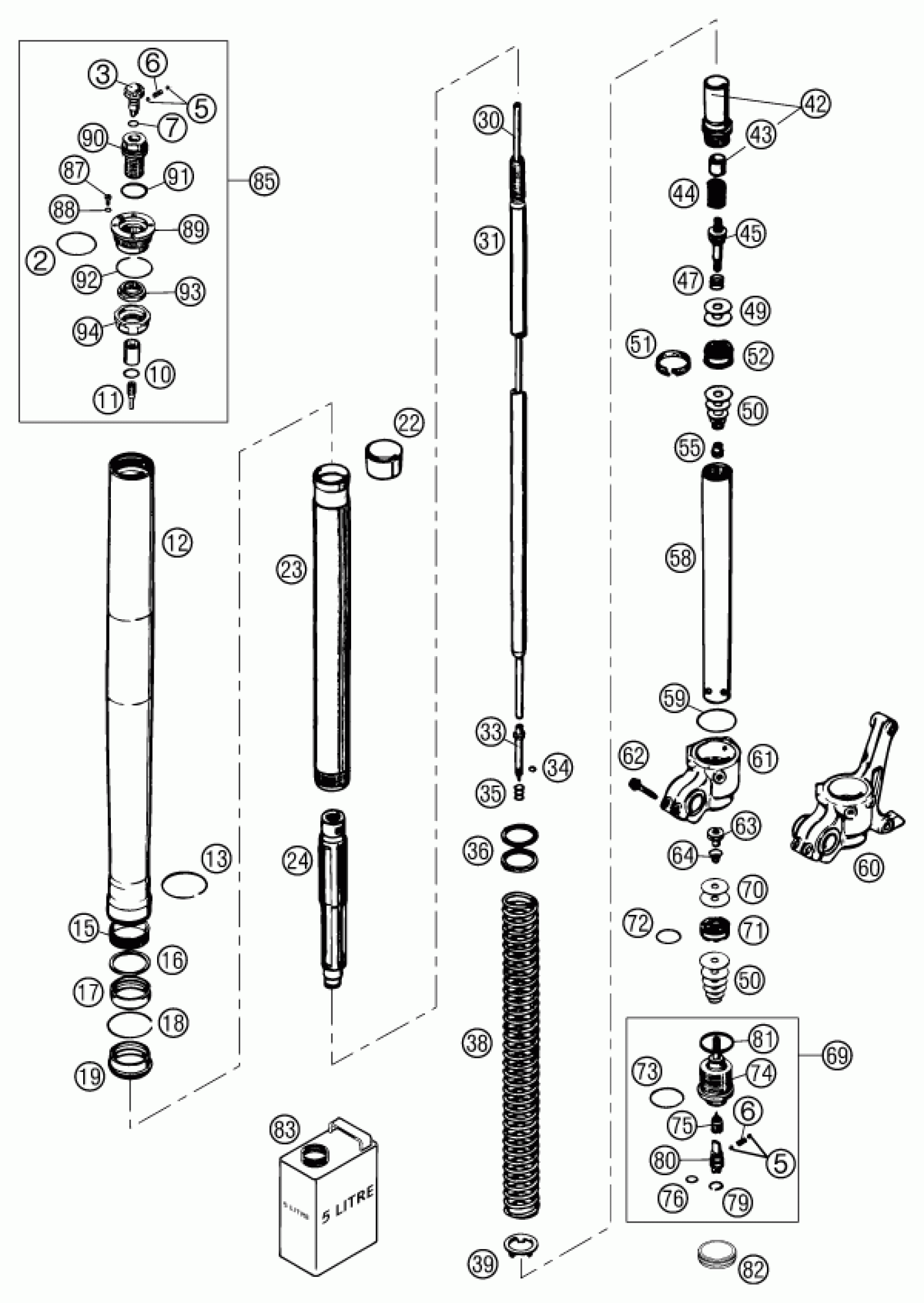

KTM 540 SXS RACING 2002 FRONT FORK DISASSEMBLED Diagram
#
2
O-ring 45x2 NBR70 siliconized
46810340
Unavailable
3
Adjuster rebound
48600018
Unavailable
5
Steel ball d3
40540603
Unavailable
6
Spring (1,7) l7,9
48600028
Unavailable
7
O-ring 6x1,5 NBR70
48600044
Unavailable
10
O-ring 12x1,5 NBR70
48600043
Unavailable
11
Tube tap d4x25
48600019
Unavailable
12
OUTER TUBE L=577mm D=54/60MM
48600001
Unavailable
13
Round-wire snap ring 48x2
48600016
Unavailable
15
DU-BUSH 48 X 52 X 20
48600007
Unavailable
16
Supportwasher 50x57,6x1,5
48600013
Unavailable
17
OIL SEAL RING 48 X 57,7 X 9,
48600057
Unavailable
18
Snap ring SB58x1,5 acc drawing
48600070
Unavailable
19
DUST STRIPPER D48
48600159
Unavailable
22
DU-BUSH 47 X 49 X 20
48600008
Unavailable
23
INNER TUBE D=48MM L=590MM
48600002
Unavailable
24
HYDR.STOP L=200MM D=32,4 CPL.
48600011S
Unavailable
30
ADJUSTMENT TUBE L=512MM
48600014
Unavailable
31
PISTONR. D=14MM L=546MM M11X1
48600023
Unavailable
33
* REBOUND NEEDLE
48600150
Unavailable
34
O-ring 3x1,5 NBR70
48600046
Unavailable
35
Spring (7,2) 4-23 needle
48600033
Unavailable
36
Preload bush 42x26,5x2,5
48600036
Unavailable
36
Preload bush 26,5x42x5
48600037
Unavailable
36
Preload bush 26,5x42x1,5
48600053
Unavailable
38
SPRING 3,6N/MM SET
91410011S
Unavailable
38
SPRING 3,8N/MM SET D=4,9MM
91410012S
Unavailable
38
SPRING 4,0N/MM SET D=5,0MM
91410013S
Unavailable
38
SPRING 4,2N/MM SET D=5,0MM
91410014S
Unavailable
38
SPRING 4,4N/MM SET D=5,1MM
91410015S
Unavailable
38
SPRING 4,6N/MM SET
91410016S
Unavailable
38
SPRING 4,8N/MM SET
91410017S
Unavailable
39
Spring retainer 33,5x43x3
48600021
Unavailable
42
SCREW SLEEVE M29,3X1+BUSH
43570132S
Unavailable
43
Guide bushing 14x16x12
46810651
Unavailable
44
REBOUND SPRING D=14,6MM L=22MM
48600015
Unavailable
45
TAB REBOUND
48600151
Unavailable
47
Spring (11,7) 1,5-8 valve
35480377
Unavailable
49
CHECK VALVE 8X24X0,1
48600062
Unavailable
49
SHIM 6X8X0,3
40541416
Unavailable
49
Shim 6x8x0,1
40541414
Unavailable
50
Shim 6x24x0,10 delta
48600116
Unavailable
50
Shim 6x14x0,10
40540401
Unavailable
50
Shim 6x16x0,10
40540402
Unavailable
50
Shim 6x18x0,10
40540403
Unavailable
50
Shim 6x11x0,20
40541402
Unavailable
50
SHIM 6X14X0,15
40540405
Unavailable
50
SHIM 6X16X0,15
40540406
Unavailable
50
SHIM 6X16X0,25
40540414
Unavailable
50
Shim 6x10x0,30
40540447
Unavailable
50
Shim 6x24x0,10
48600063
Unavailable
50
Shim 6x22x0,10
48600064
Unavailable
50
Shim 6x20x0,10
48600065
Unavailable
50
SHIM 6X18X0,25
40540415
Unavailable
51
Pistonring 26x28x5
48600060
Unavailable
52
Piston 6,05x27,65x12 rebound
48600042
Unavailable
55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
Unavailable
58
TUBE 29,3X1X390 D=8,5MM
48600081
Unavailable
59
O-ring 46x2 NBR70 siliconized
48600048
Unavailable
60
AXLE CLAMP L/S USD 48 2002
48600006
Unavailable
61
AXLE CLAMP R/S USD 48 2002
48600005
Unavailable
62
HH COLLAR SCREW M 8X30
50600061
Unavailable
63
CHECK VALVE NUT M6X0,5
40541241
Unavailable
64
Spring (8,5) l6,5 valve
40541278
Unavailable
69
TAP COMPRESSION CPL.
48600152S
Unavailable
70
Shim 8x24x0,40
48600061
Unavailable
71
Piston 6x27,8x9 compression
48600047
Unavailable
72
O-ring 21x2 NBR70
46811499
Unavailable
73
O-ring 24x2 NBR70
35480320
Unavailable
74
TAP COMPRESSION
48600152
Unavailable
75
NEEDLE COMPRESSION M10X1
48600153
Unavailable
76
O-ring 8x2 NBR70
48600049
Unavailable
79
Round-wire snap ring 12x1 DIN7
48600051
Unavailable
80
Adjustment screw slot compress
48600034
Unavailable
81
Copper disc 29,5x33,5x1
48600004
Unavailable
82
Rubber cap 35x10 NBR80
48600141
Unavailable
83
FORKOIL REZ 71 SAE 5
40540882
Unavailable
85
PRE-LOAD ADJUSTER CPL.(1 PC.)
48600075S
Unavailable
87
VENT SCREW M4X8
48600076
Unavailable
88
O-ring 3x1,5 NBR70
48600046
Unavailable
89
SCREW CAP M51X1,5
48600075
Unavailable
90
ADAPTER FOR REB. MENDING
48600073
Unavailable
91
O-ring 26x2 NBR90
48600077
Unavailable
92
Round-wire snap ring 49x1,5
46810010
Unavailable
93
Locking nut M25x1 LH h7 WAF32
48600072
Unavailable
94
Carrier ring spring fork
48600071
Unavailable
