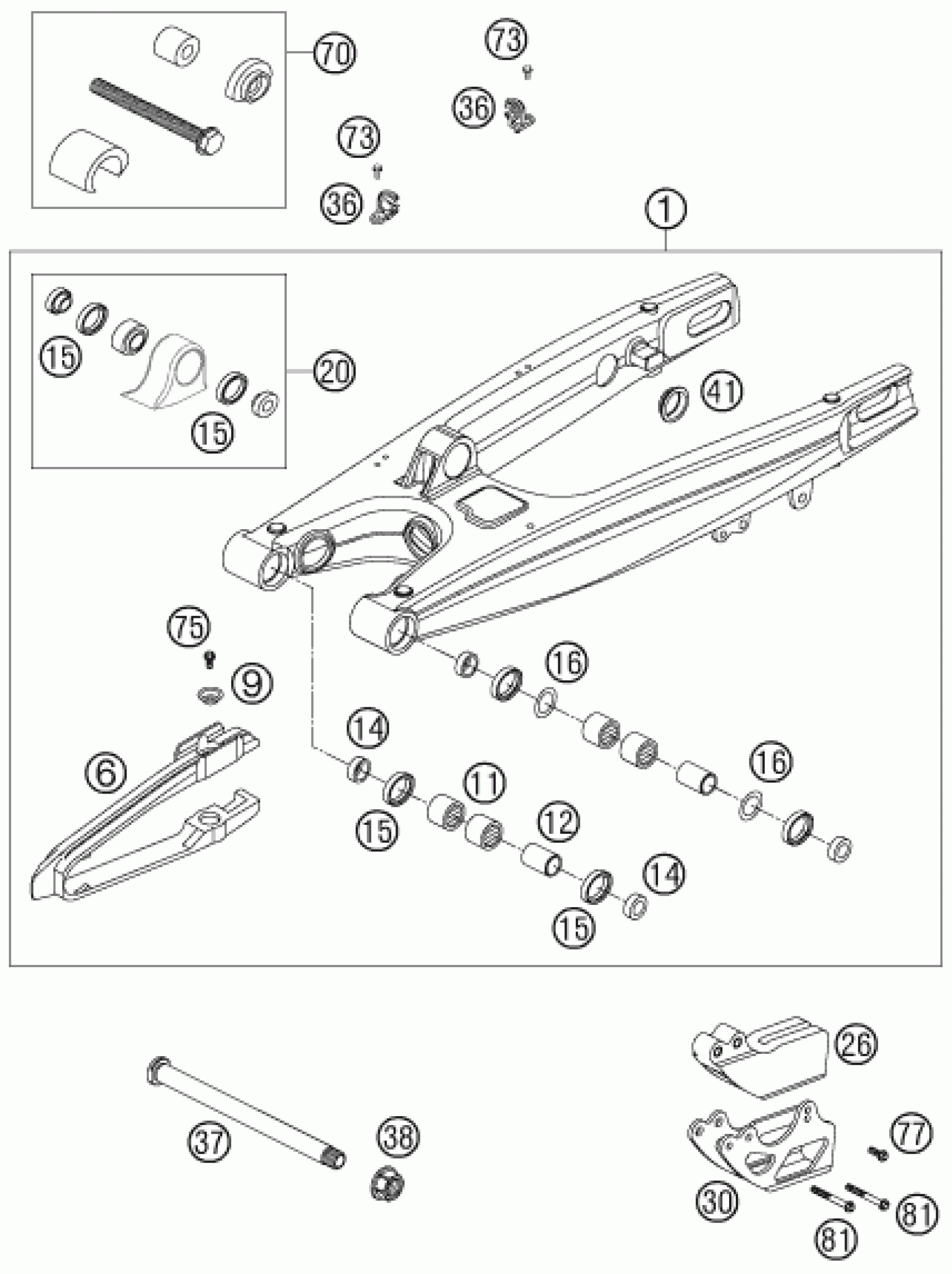

KTM 540 SXS 2006 SWING ARM Diagram

#

Description
Price

1

SWINGARM CPL. 05

59404230144

Unavailable

6

CHAIN GUARD 05

50304066100

Unavailable

9

BUCKET

72210079000

Unavailable

11

NEEDLE BEARING HK2212V

59004031100

Unavailable

12

Bearing sleeve 17x22x38.7 03

59404032000

Unavailable

14

Bucket f. shaft seal ring 03

54804034000

Unavailable

15

radial shaft seal 25x32x7

0760253270

Unavailable

16

STOP DISK 22,2X31,7X1

54603036000

Unavailable

20

PIVOT BEARING+BUSH. PDS '99

50304090044

Unavailable

26

CHAIN GUIDE REAR '94

54607066100

Unavailable

30

RETAINING PLATE CPL.

54607070144

Unavailable

36

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

Unavailable

37

SWINGARM BOLT M16X1,5 07

77304037000

Unavailable

38

Nut with flange M16X1,5 WS=19

54804038000

Unavailable

41

CLOSING COVER ROUND 03

58404041100

Unavailable

70

TOOL BEARING MOUNTING PDS

50329000044

Unavailable

73

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

75

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

77

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

81

HH COLLAR SCREW M 6X50 WS=8

0015060503

Unavailable
