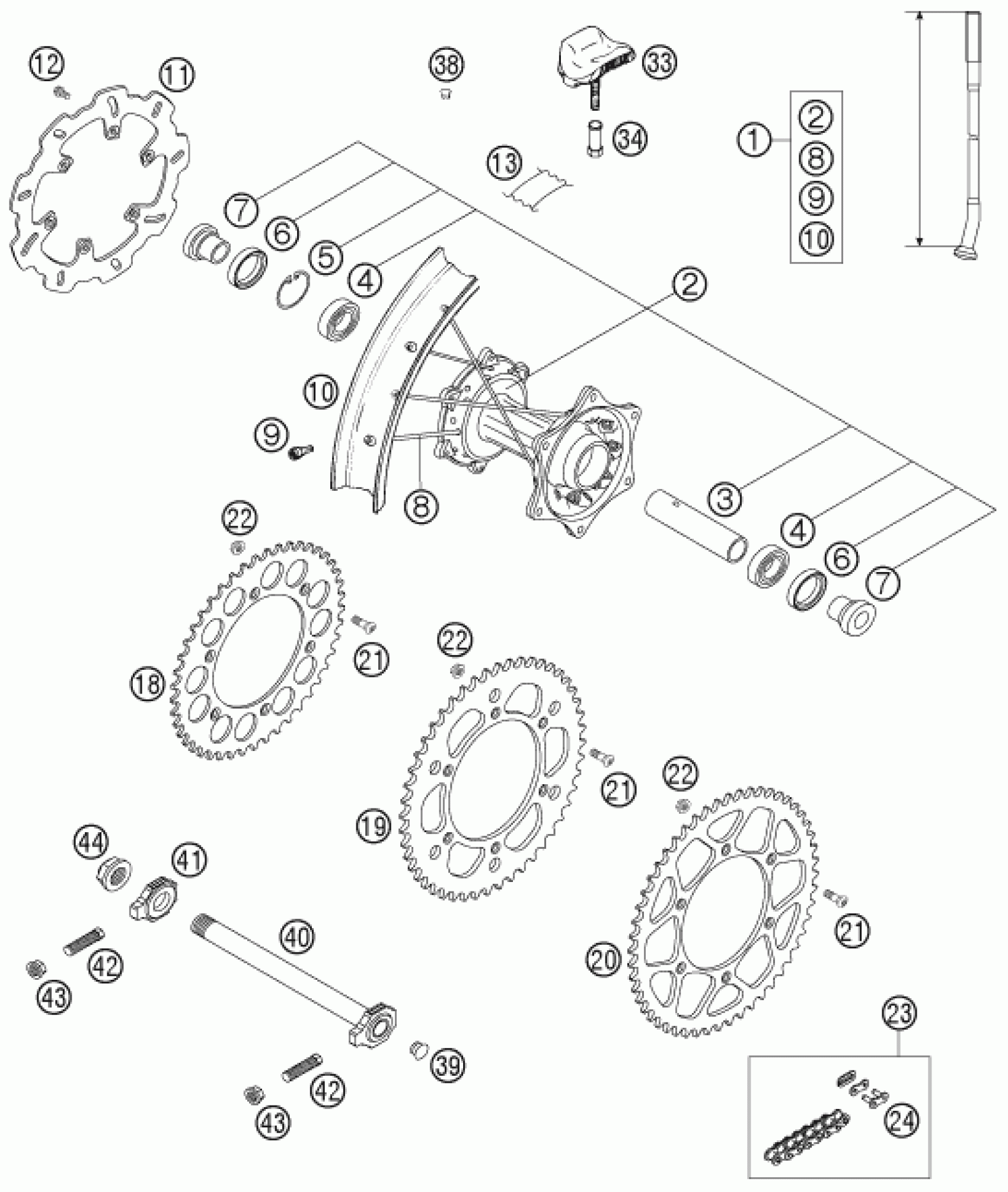

KTM 540 SXS 2006 REAR WHEEL Diagram

#

Description
Price

1

REAR W. CPL. 2,15X19 EXCEL 06

5481000184430

Unavailable

2

REAR WHEEL HUB CPL. SX,EXC03

5481001004491

Unavailable

3

BUSH. SPACER TUBE 121,5MM 01

59010011000

Unavailable

4

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Radial shaft seal 32X47X7 BSL

0760324771

Unavailable

7

BUSHING FOR HUB

54610016000

Unavailable

8

SPOKE M5X207-10G 19'' DDE

50310072207

Unavailable

9

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

10

REAR RIM 2,15X19''EXCELAL4BLK

5461007010030

Unavailable

11

WAVE BRAKE DISC REAR D=220 MM

54810060200

Unavailable

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

13

Tube protector 18" and 19"

50310073200

Unavailable

18

REAR SPROCKET 38-T

58310051038

Unavailable

18

REAR SPROCKET 40-T

58310151040

Unavailable

18

REAR SPROCKET 42-T

58310051042

Unavailable

18

REAR SPROCKET 45-T

58310151045

Unavailable

19

REAR SPROCKET 48-T

58310151048

Unavailable

19

REAR SPROCKET 49-T

58310151049

Unavailable

20

REAR SPROCKET 50-T

58310151050

Unavailable

20

REAR SPROCKET 51-T

58310151051

Unavailable

20

REAR SPROCKET 52-T

58310151052

Unavailable

21

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

22

Self locking nut M8 10.9

54310086200

Unavailable

23

CHAIN 5/8X1/4'' MX ORANGE

5031016511804

Unavailable

24

Connecting link for 5031016511

50310166000

Unavailable

33

RIM LOCK VM3 (2.15'')

54010100100

Unavailable

34

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

Unavailable

40

Thru axle rear wheel cmpl. 07

77310085044

Unavailable

41

Chain tension adjuster, right

50310084000

Unavailable

42

screw M10x1.25x50 WS10

50304040100

Unavailable

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

44

Hexagon nut M20x1.5

50310099000

Unavailable
