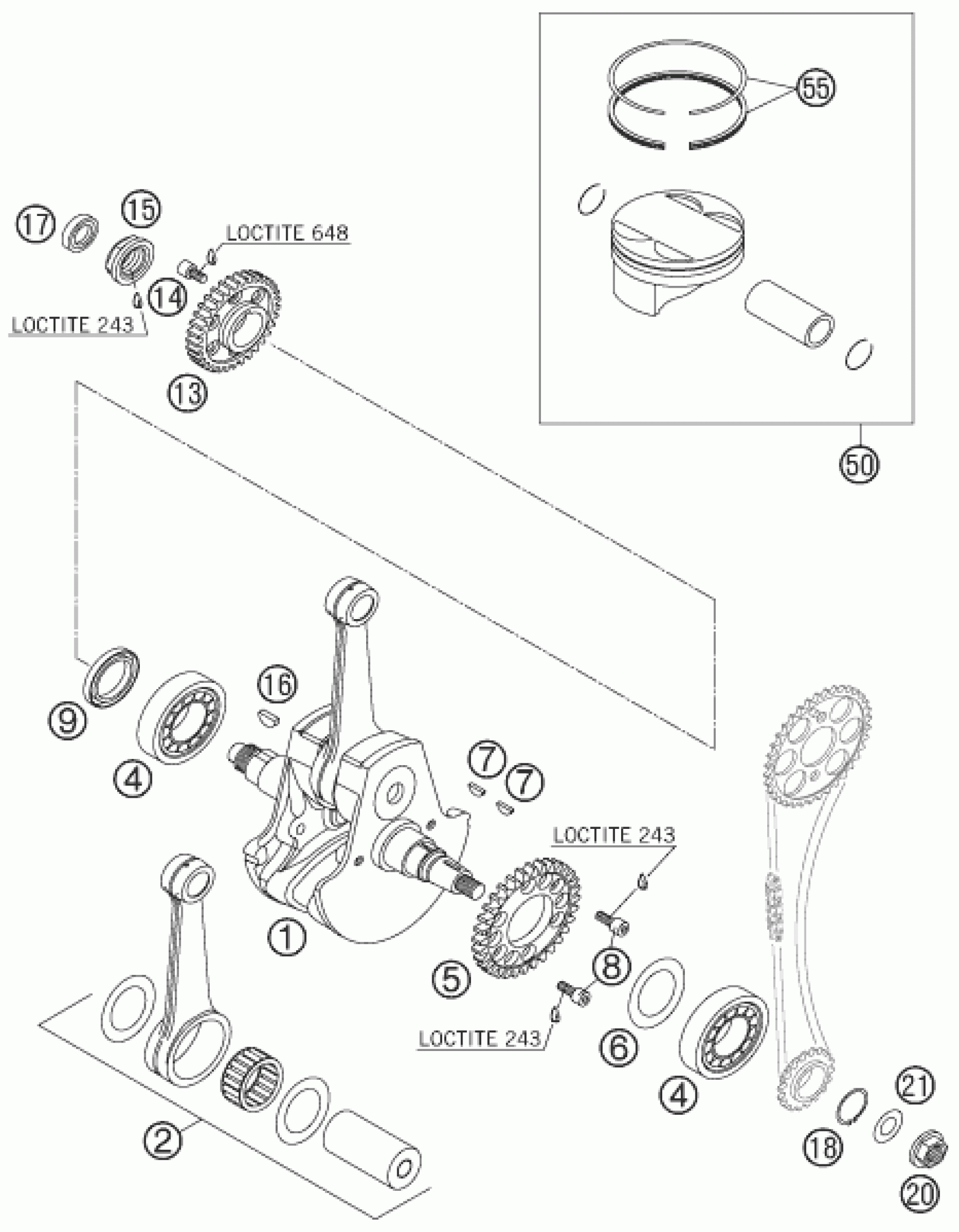

KTM 540 SXS 2006 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT

SXS05530020

Unavailable

4

CYL.ROLLBEAR.NJ206ECP/C3HVC058

80030019000

Unavailable

5

DRIVE GEAR 32-T F.BALANC.SHAFT

59030055000

Unavailable

6

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

2

CON. ROD REP. SET 03

SXS03530021

Unavailable

6

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

6

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

7

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

8

AH SCREW DIN7984-M 6X16

0984060162

Unavailable

9

SH.SEAL RING 30X47X7 BSL VITON

0760304772

Unavailable

13

PRIMARY GEAR 33-T

59032000033

Unavailable

14

AH SCREW DIN0912-M 6X10 10.9

0912060106

Unavailable

15

HH NUR M20X1,5 WS=27 LEFT

59030029100

Unavailable

16

WOODRUFF KEY 5X6,5 HARDED

6946005

Unavailable

17

radial shaft seal 14x24x6 B

0760142460

Unavailable

18

CIRCLIP DIN0471-25X1,2

0471250120

Unavailable

20

COLLAR NUT M12X1 R/S

49030021000

Unavailable

21

SPRING WASHER DIN0137-B12

0137120000

Unavailable

50

PISTON CPL. D=100MM 04

SXS04530016

Unavailable

55

PISTONRING SET 03

SXS03530017

Unavailable
