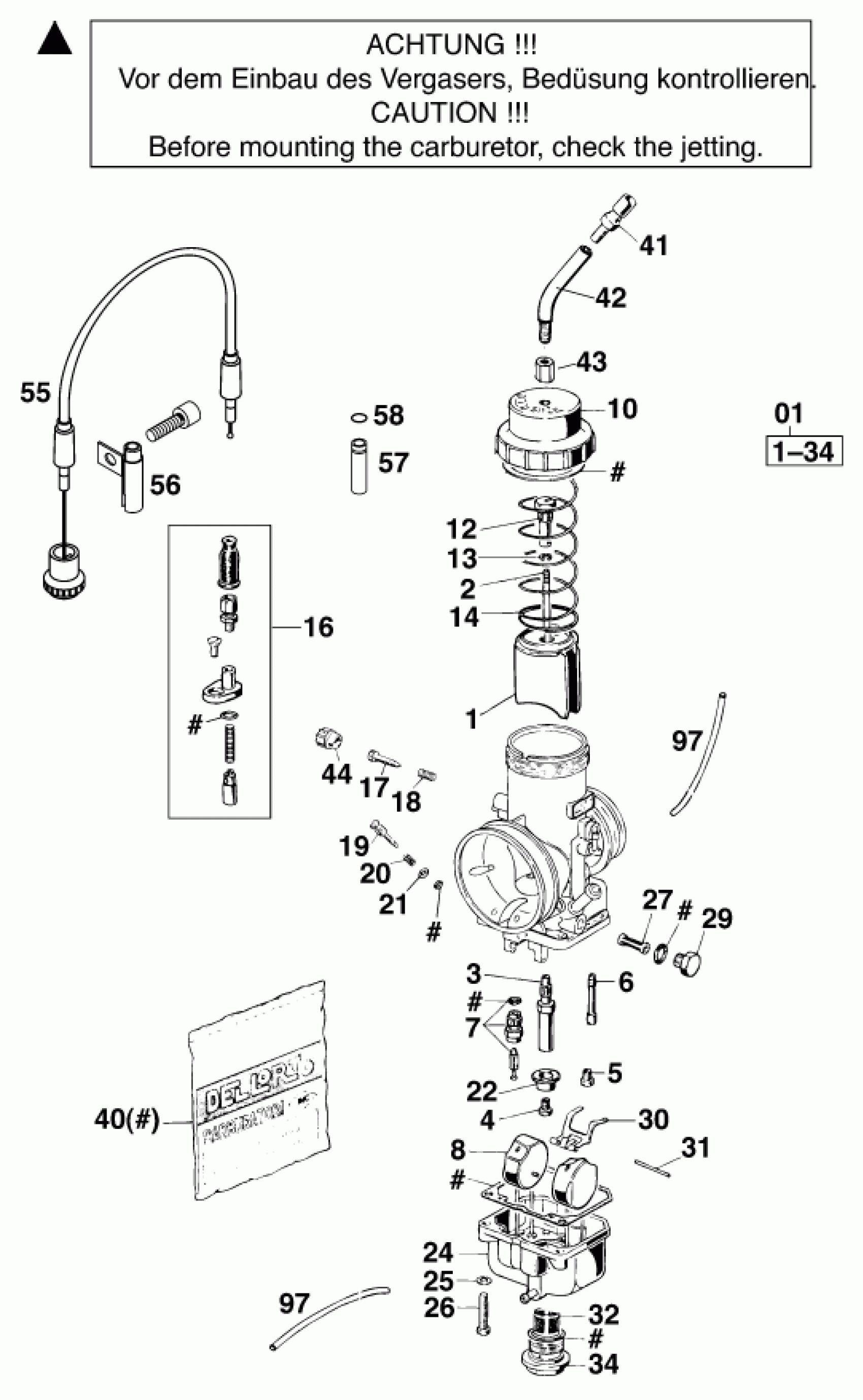

KTM 540 SXC <1998> CARBURETOR Diagram

#

Description
Price

1

CARBURETOR VHSB38QS 081297'98

58031401000

Unavailable

1

THROTTLE VALVE NO.50

58331035050

Unavailable

2

JET NEEDLE K32

49031134032

Unavailable

3

NEEDLE JET FN 258

58331021258

Unavailable

3

NEEDLE JET FN 260

58331021260

Unavailable

3

NEEDLE JET FN 262

58331021262

Unavailable

4

MAIN JET 130

57031523130

Unavailable

4

MAIN JET 132

57031523132

Unavailable

4

MAIN JET 135

57031523135

Unavailable

4

MAIN JET 140

57031523140

Unavailable

4

MAIN JET 142

57031523142

Unavailable

4

MAIN JET 145

57031523145

Unavailable

4

MAIN JET 148

57031523148

Unavailable

4

MAIN JET 150

57031523150

Unavailable

4

MAIN JET 155

57031523155

Unavailable

4

* MAIN JET 160

57031523160

Unavailable

4

MAIN JET 162

57031523162

Unavailable

4

MAIN JET 165

57031523165

Unavailable

4

MAIN JET 168

57031523168

Unavailable

4

MAIN JET 170

57031523170

Unavailable

4

MAIN JET 175

57031523175

Unavailable

4

MAIN JET 178

57031523178

Unavailable

4

MAIN JET 180

57031523180

Unavailable

4

MAIN JET 182

57031523182

Unavailable

4

MAIN JET 185

57031523185

Unavailable

4

MAIN JET 188

57031523188

Unavailable

4

MAIN JET 190

57031523190

Unavailable

4

MAIN JET 192

57031523192

Unavailable

4

MAIN JET 195

57031523195

Unavailable

4

MAIN JET 200

57031523200

Unavailable

5

JET 33

15131123033

Unavailable

5

JET 35

15131123035

Unavailable

5

JET 38

15131123038

Unavailable

5

JET 40

15131123040

Unavailable

6

STARTING JET 50

49031151050

Unavailable

7

NEEDLE VALVE 350

57231120350

Unavailable

8

FLOAT 3 3,5GRAMM

49031109000

Unavailable

10

COVER FOR CARBURETOR DELL ORTO

50231127000

Unavailable

12

NIPPLE FOR THROTTLE VALVE

49031131000

Unavailable

13

TAB WASHER DIN6799-RS 2,5

0799025055

Unavailable

14

SLIDING SPRING 1,25X230

49031130000

Unavailable

16

STARTING SYSTEM CPL. VHSB

58331050044

Unavailable

17

ADJUSTING SCREW M6

50231120000

Unavailable

18

SPRING FOR ADJUST.SCREW

50231150000

Unavailable

19

AIR ADJUSTMENT SCREW M7X0,75

49031117000

Unavailable

20

SPRING AIR ADJUST.SCREW

57031515000

Unavailable

21

WASHER 3,3 X 5,8 X 0,5

57031572000

Unavailable

22

BUFFLE

54531574000

Unavailable

24

FLOAT CHAMBER VHSB38QS

58331011000

Unavailable

25

* SPRING RING DIN0127-B 5

0127050003

Unavailable

26

* CYL.HD SCREW DIN0084-M 5X20A

0084050203

Unavailable

27

FUEL FILTER PVC

49031212100

Unavailable

29

* PLUG M8 WS=12

49031513100

Unavailable

30

FLOAT ARM

49031106000

Unavailable

31

* FLOAT PIN 2 X 27

49031108000

Unavailable

32

FUEL FILTER

49031112000

Unavailable

34

* PLUG M20X1 WS=19

50231114000

Unavailable

40

GASKET SET VHSB38QS 540'98

58331099000

Unavailable

41

ADJUSTMENT SCREW M6X0,75

57031525100

Unavailable

42

TUBE FOR CARBURETOR '

58031160000

Unavailable

43

SUPPORT BUSHING M6x0,75 WS=10

58031528000

Unavailable

44

KNURLED CAP PLASTIC

57031519100

Unavailable

55

CHOKE CABLE CPL. SX,SXC,SC'97

58302095200

Unavailable

56

SLEEVE FOR CHOKE CABLE

58302095251

Unavailable

57

SLIDE STOP L=36MM

50331029036

Unavailable

58

O-RING 6,00X2,00 NBR 70

0770060020

Unavailable

97

PVC-HOSE 3X5MM

52031137001

Unavailable
