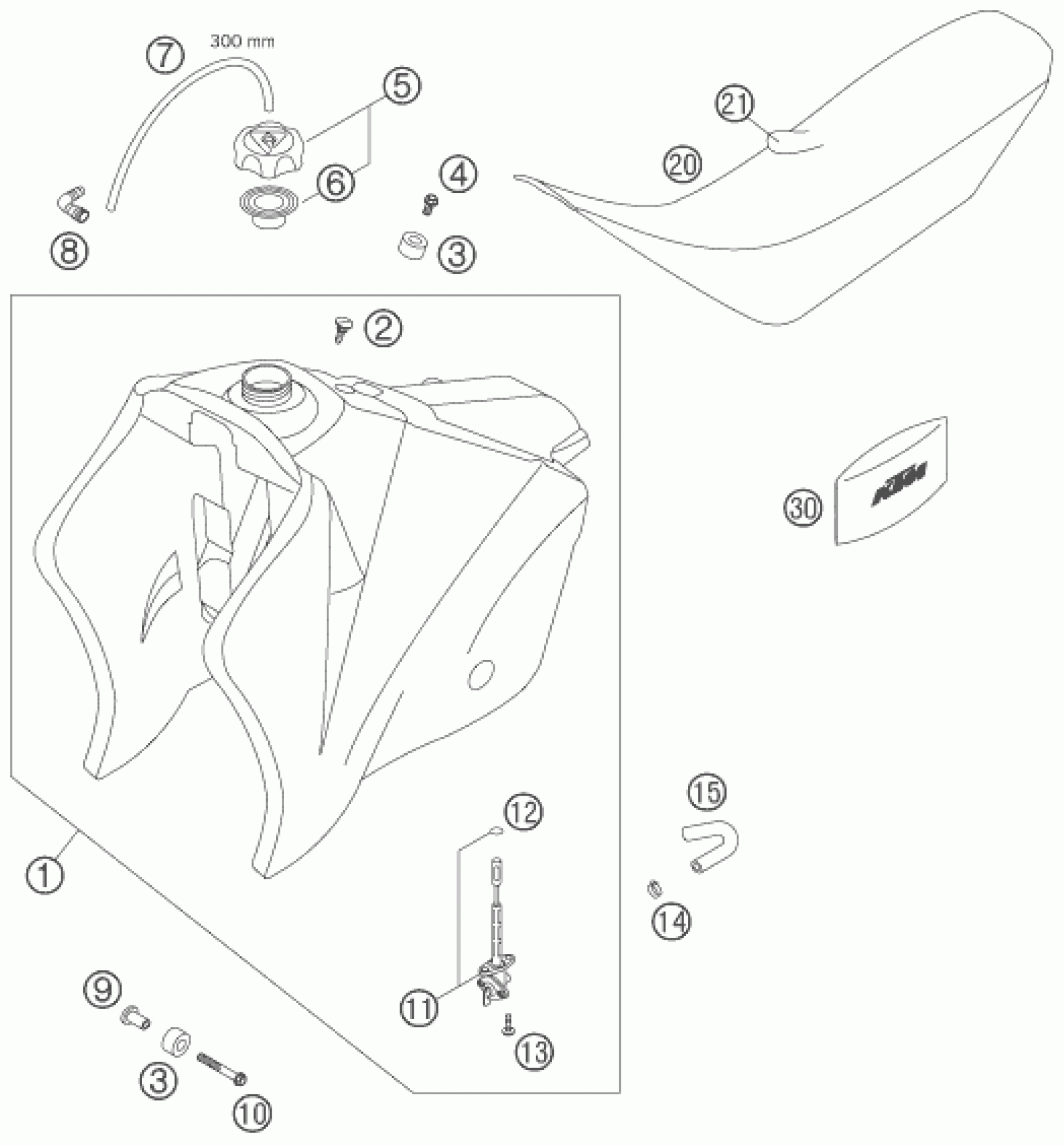

KTM 525 XC DESERT RACING 2006 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. 13L ORANGE 06

5900701320004A

Unavailable

2

SCREW SEAT FASTENING D=6X23/18

50307011000

Unavailable

3

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

4

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

5

FILLER CAP CPL. WITH VALVE

59007008044

Unavailable

6

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

ANGLE PIECE 90 DEGREE M10X1

51030022000

Unavailable

9

SUPORT BUSHING TANKROLLER

59003001055

Unavailable

10

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

11

FUEL COCK CPL. OFF-ON-RES

58307105200

Unavailable

12

O-RING 13,00X2,30

0770130023

Unavailable

13

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

14

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

15

FUEL HOSE 7,5X13MM

59007016000

Unavailable

20

SEAT MXC WITHOUT KTM-LOGO 05

59407040100

Unavailable

21

S.COVER MXC WITHOUT KTM-LOG.05

59407040150

Unavailable

30

ORIGINAL EQUIPMENT TOOL KIT

59029099000

Unavailable
