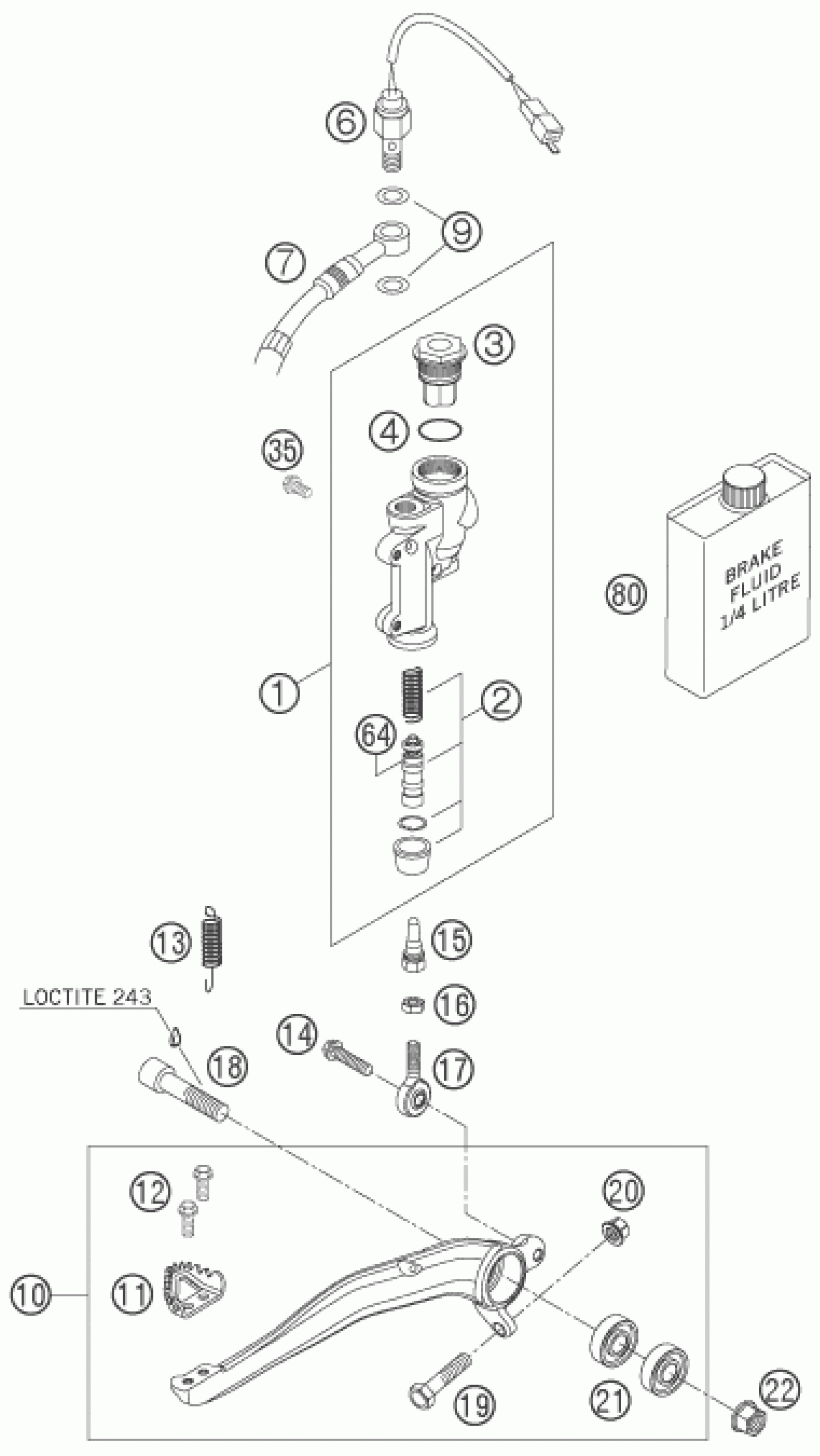

KTM 525 XC DESERT RACING 2006 REAR BRAKE CONTROL Diagram

#

Description
Price

18

AH SCREW DIN6912 M10X40 10.9

0912100406

Unavailable

19

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

20

flanged nut M8 WS10

46030045000

Unavailable

21

deep groove ball bearing SKF 6

0625060002

Unavailable

22

COLLAR NUT M10 WS=13

54630044000

Unavailable

35

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

80

BRAKE FLUID DOT 4.0

306054

Unavailable

1

REAR BRAKE CYLINDER CPL. 2004

54813060100

Unavailable

2

REPAIR KIT PISTON 13MM 06

54813061200

Unavailable

64

BELLOWS FOR REPAIR KIT 06

54813064200

Unavailable

3

REAR BRAKE CYL. COVER CPL. 04

54813062100

Unavailable

4

FOOT-BRAKE CYL. GASKET SX 03

54813063000

Unavailable

6

BRAKE LIGHT SWITCH REAR '98

50311051100

Unavailable

7

BRAKE HOSE REAR 655MM 03

54813070000

Unavailable

9

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

10

FOOT BRAKE LEVER CPL. 03

54813050044

Unavailable

11

STEP PLATE FOR BRAKE LEVER

54813051000

Unavailable

12

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

13

RETURN SPRING FOR BRAKELEVER

54603062000

Unavailable

14

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

15

PUSH ROD L=28MM 03

54813056000

Unavailable

16

Hex. nut DIN 934 M6

0934060003

Unavailable

17

SWIVEL HEAD KA6 03

54813055000

Unavailable
