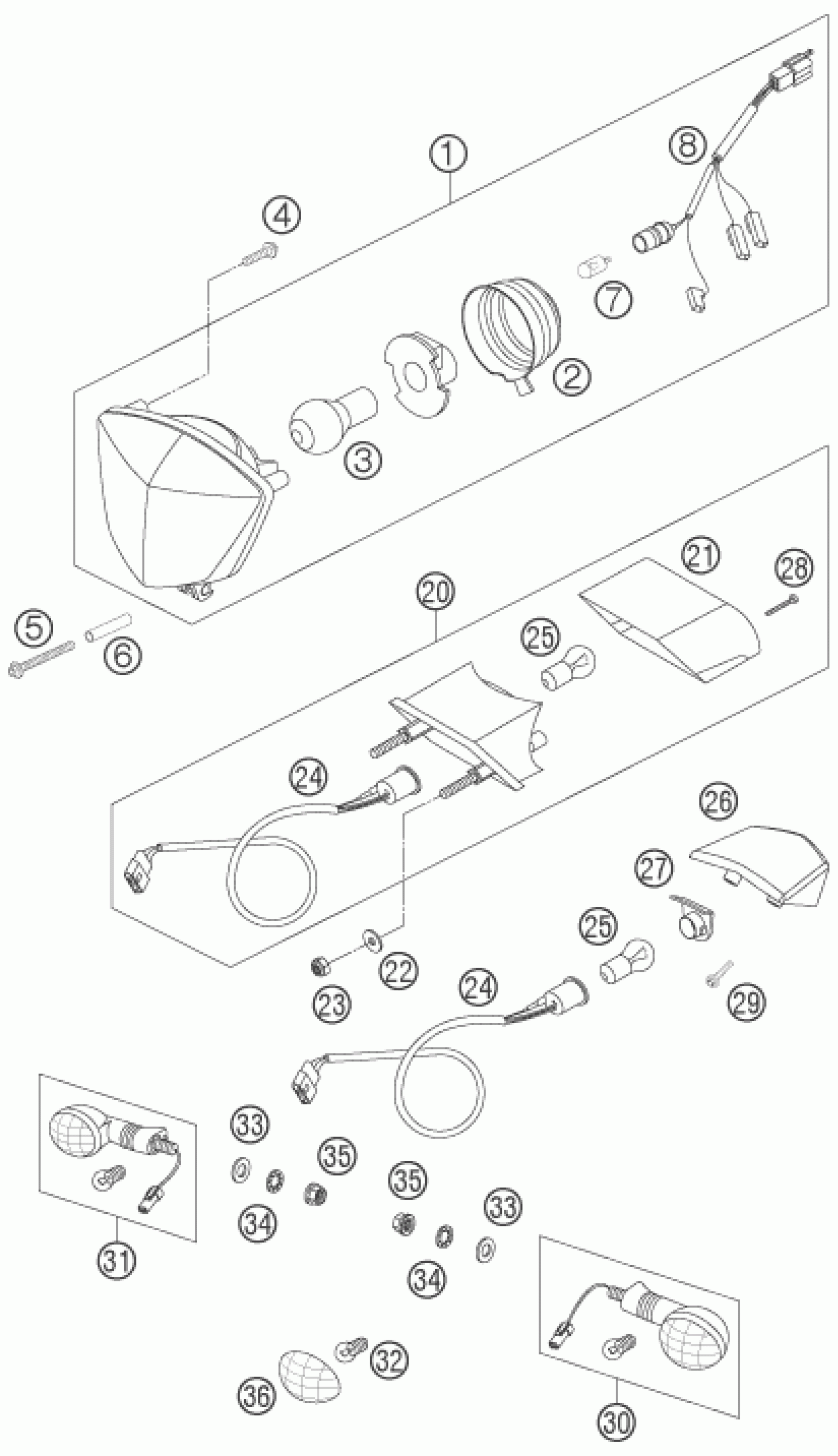

KTM 525 XC DESERT RACING 2006 LIGHTING SYSTEM Diagram

#

Description
Price

21

REAR LIGHT LENS 125-380 EGS'98

50314041100

Unavailable

22

Washer DIN9021-A 6.4

0021060003

Unavailable

23

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

1

HEAD LIGHT CPL. 2005

54814001000

Unavailable

2

RUBBER CAP FOR HEAD LIGHT 05

54814001050

Unavailable

3

BILUX-BULB 12V 35/35W BA20D

44111038000

Unavailable

4

SCREW FOR PLASTIC D=5X18

0081500181

Unavailable

5

HH COLLAR SCREW M 5X60 WS=6

0014050603

Unavailable

6

SPACER HOSE F. HEAD LIGHT MASK

54808008000

Unavailable

7

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

8

CABLE FOR HEAD LIGHT 2005

54811001050

Unavailable

20

RR LIGHT CPL.125-380 EGS '98

50314040100

Unavailable

24

WIRING HARNESS REAR 125-380'98

50311076000

Unavailable

25

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

Unavailable

29

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

30

FLASHER CPL.FRT L/S REAR R/S

54814025100

Unavailable

31

FLAHER CPL FRONT R/S REARL/S

54814026100

Unavailable

32

BULB 12V 10W (BA15S)

44111015100

Unavailable

33

washer DIN 125 A 10.5

0125100003

Unavailable

34

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

28

SHEET MET. SCR. DIN7981 3,5X32

0981350323

Unavailable

36

FLASHER LENS L/S R/S 05

54814028000

Unavailable

26

REAR LIGHT LENS 04

50314041200

Unavailable

27

LAMP HOLDER 04

54811076050

Unavailable
