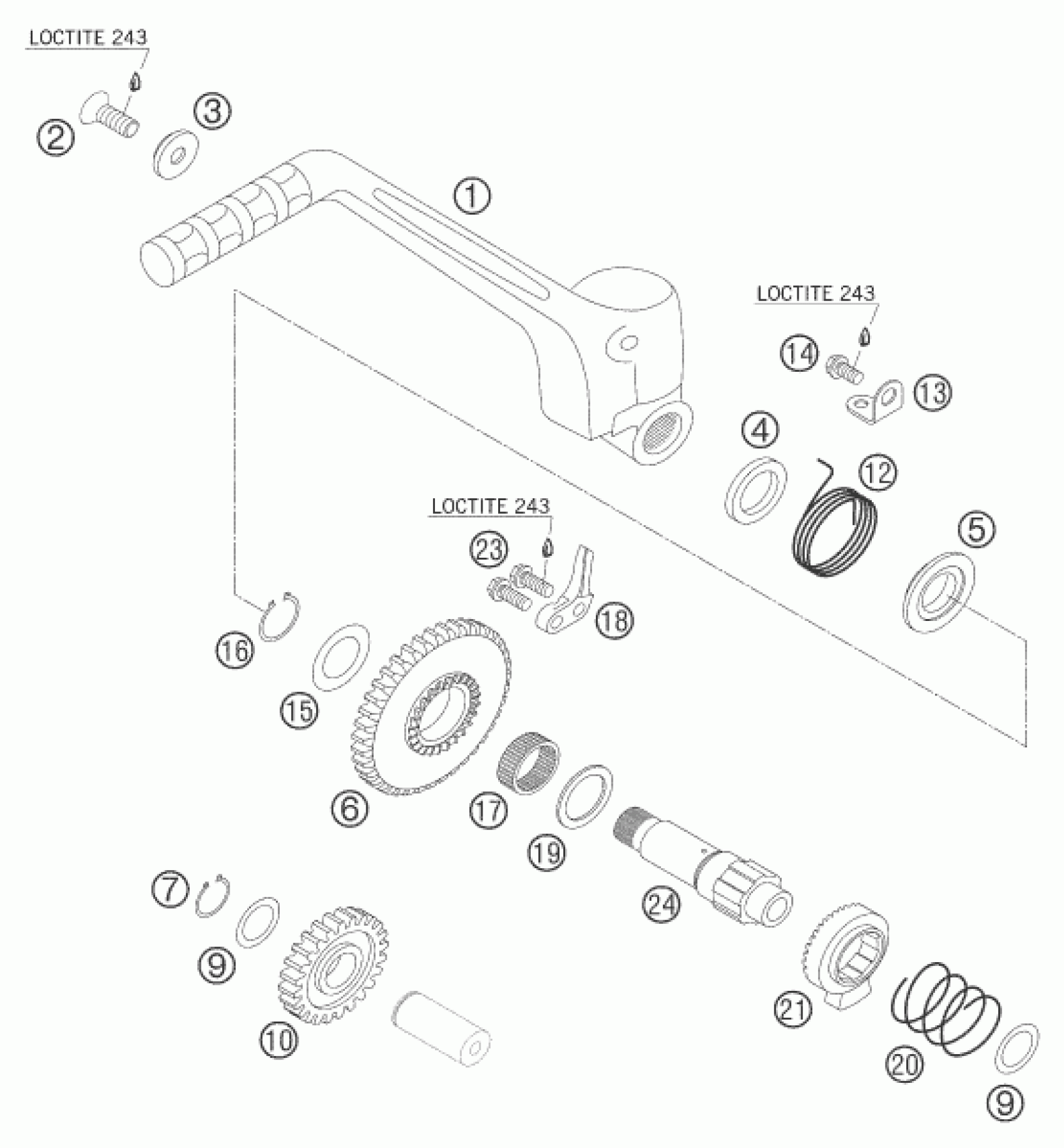

KTM 525 XC DESERT RACING 2006 KICK STARTER Diagram

#

Description
Price

1

KICKSTARTER CPL. '03

54833070044

Unavailable

2

SPROCKET SCREW-AH M8X20 WS=6

54610052000

Unavailable

3

WASHER 8MM GALVANIZED

54633037000

Unavailable

4

SHAFT SEAL RING 19X30X7 B

0760193070

Unavailable

5

DRIVING HUB

59033055000

Unavailable

6

KICKSTARTER GEAR 39-T

59033051039

Unavailable

7

CIRCLIP DIN0471-17X1

0471170010

Unavailable

9

SHIM WASHER DIN0988-17X24X0,5

0988172405

Unavailable

10

INTERMEDIATE GEAR 24-T

59033053000

Unavailable

12

KICKSTARTER SPRING

59033054000

Unavailable

13

SPRING HANGER

59033074000

Unavailable

14

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

15

Shim 20x31.9x1

59033080000

Unavailable

16

CIRCLIP DIN0471-19X1,2

0471190120

Unavailable

17

NEEDLE BEARING K 22X26X10 A

0405222610

Unavailable

18

BUMP PART

59033069000

Unavailable

19

STOP DISK 22,2 X 30 X 1,5

58033031000

Unavailable

20

RATCHET GEAR SPRING 1,2 MM

58033028000

Unavailable

21

RATCHET GEAR KICKSTARTER

59033052000

Unavailable

23

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

24

KICKSTARTER SHAFT RACING2000

59033050000

Unavailable
