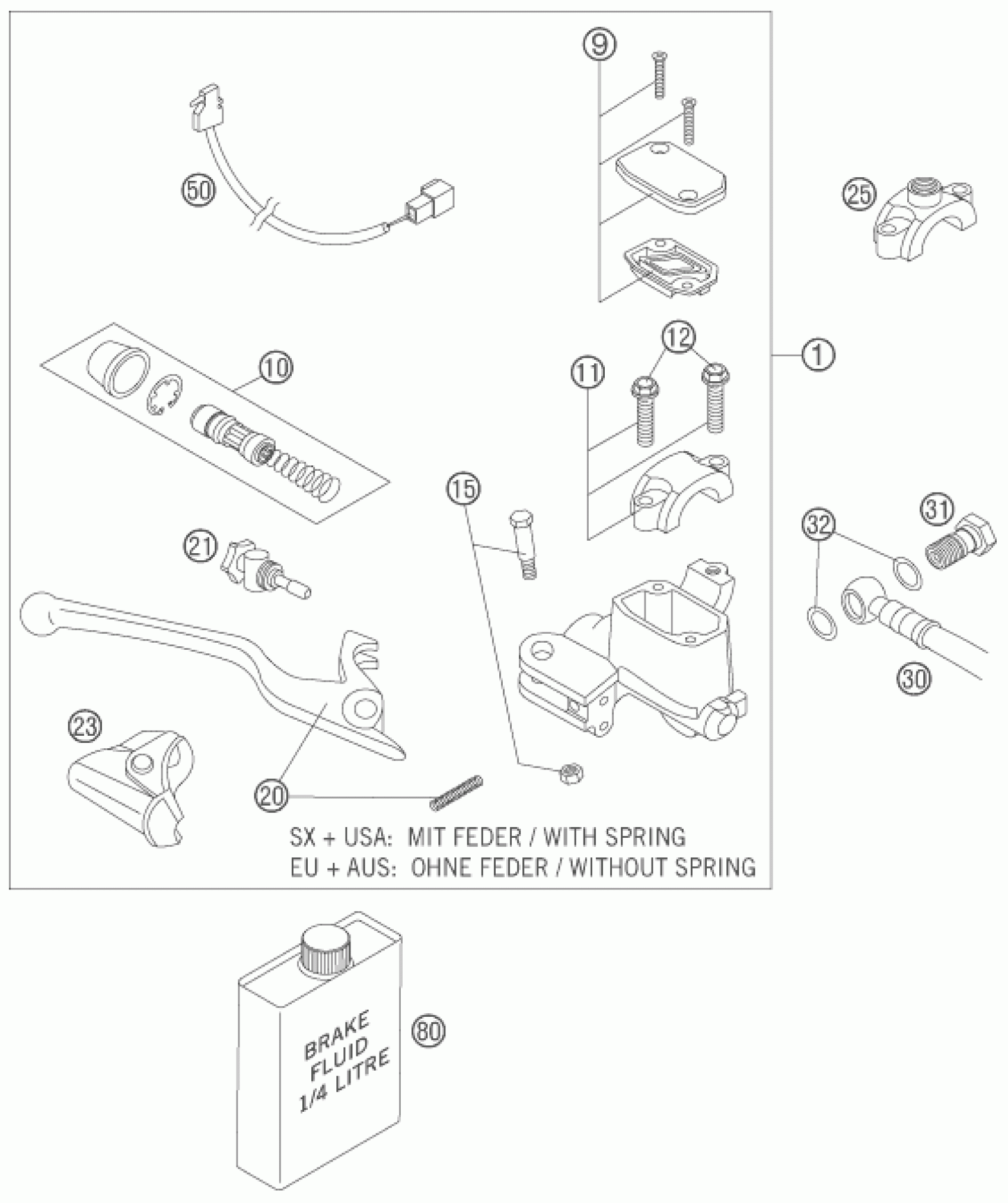

KTM 525 XC DESERT RACING 2006 FRONT BRAKE CONTROL Diagram

#

Description
Price

50

BRAKE LIGHT SWITCH FRONT 2002

50311050100

Unavailable

1

HAND BRAKE CYLINDER CPL.EXC 06

54813001300

Unavailable

9

HANDBRAKE CYL.COVER CPL.NATURE

50313003000

Unavailable

10

REP.SET PISTON D=10MM 2006

54813008200

Unavailable

11

CLAMP CPL. NATURE

50313005000

Unavailable

12

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

15

LEVER SCREW CPL. 2001

50313006100

Unavailable

20

HAND BRAKE LEVER + SPRING '05

54813002000

Unavailable

21

ADJUSTING SCREW CPL. EXC 2005

54813007100

Unavailable

23

PROTECTION CAP HAND BRAKE CYL.

50313004000

Unavailable

25

Clamp for mirror

58012040150

Unavailable

30

BRAKEHO. FRONT 1300MM 2000

59013011000

Unavailable

31

HOLLOW SCREW M10X1X19

50213025000

Unavailable

32

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

80

BRAKE FLUID DOT 4.0

306054

Unavailable
