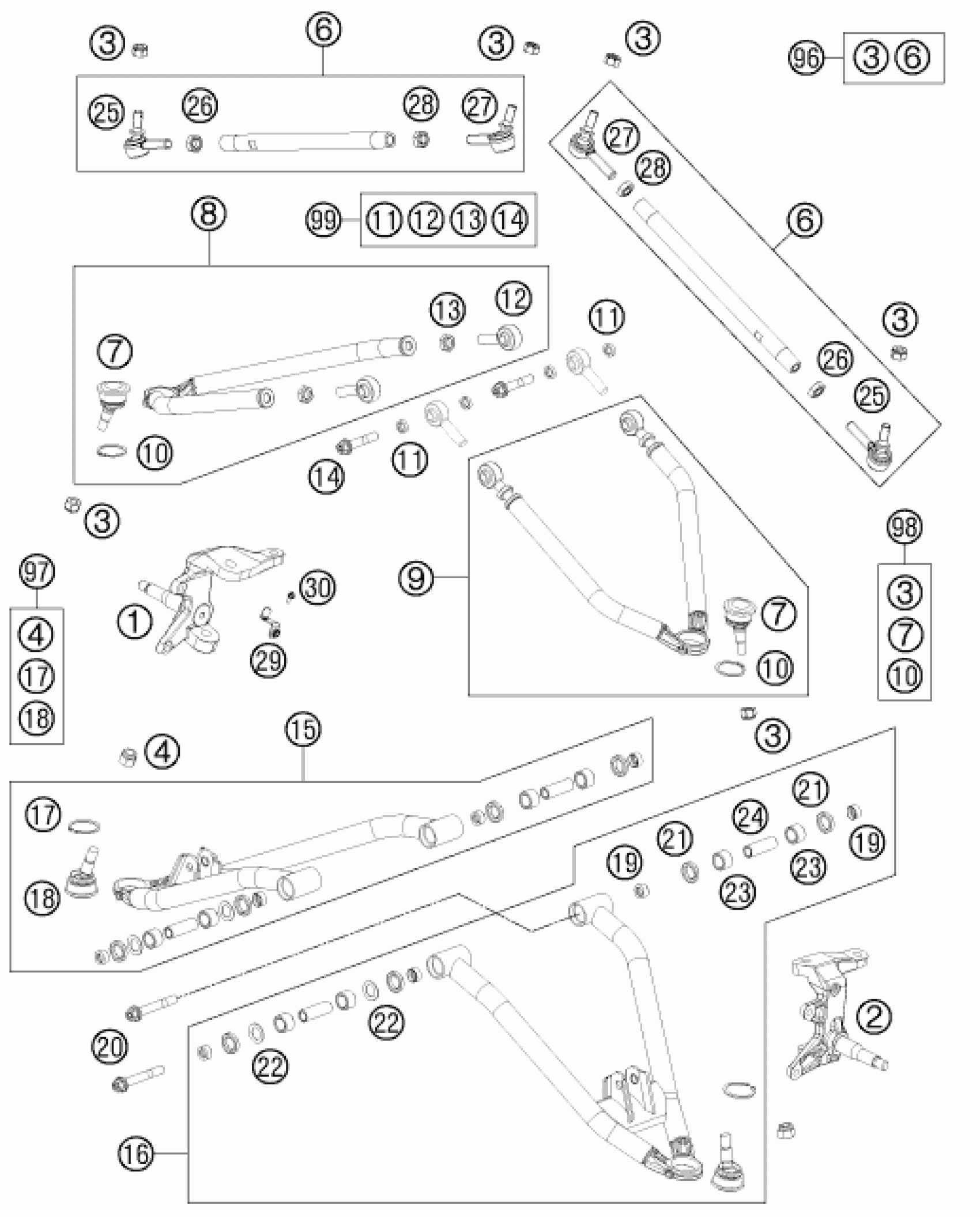

KTM 525 XC ATV 2012 FRONT-END Diagram

#

Description
Price

1

WHEEL CARRIER FRONT RIGHT CPL

83061106000

Unavailable

2

WHEEL CARRIER L/S CPL.

83061005200

Unavailable

3

SELF LOCK.NUT M10X1,25

0982101253

Unavailable

4

SELF LOCK.NUT M12X1,5

83061005025

Unavailable

6

TRACK RODS CPL.

83061010044

Unavailable

7

BALL HEAD M10X1,25

83061001050

Unavailable

8

A-ARM TOP R/S XC CPL.

83061003044

Unavailable

9

A-ARM TOP L/S XC CPL.

83061001044

Unavailable

10

CIRCLIP DIN0471-32X1,5

0471320150

Unavailable

11

SPACER BUSHING F. BALLJOINT

83061001025

Unavailable

12

SWIVEL HEAD

83061001051

Unavailable

13

HEXAGON NUT DIN 936 M12x1,25

0936120123

Unavailable

14

COLLAR SCREW M10X52 TX

0023100523

Unavailable

15

A-ARM DOWN R/S XC CPL.

83061004044

Unavailable

16

A-ARM DOWN L/S XC CPL.

83061002044

Unavailable

17

CIRCLIP DIN0741-35X1,5

0471350150

Unavailable

18

BALL HEAD M12X1,5

83061002050

Unavailable

19

BUCKET F. SHAFT SEAL RING

83061034000

Unavailable

20

COLLAR SCREW M10X70 TX

0023100703

Unavailable

21

SHAFT SEAL RING 17X26X6

0760172660

Unavailable

22

STOP DISK 15,2X25X1 MM

83061015000

Unavailable

23

NEEDLE BEARING HMK 1515

83061079000

Unavailable

24

BUSHING SLEEVE F. A/ARM

83061032000

Unavailable

25

BALL HEAD TRACK RODS RIGHT

83061010002

Unavailable

26

NUT RIGHT

83061010004

Unavailable

27

BALL HEAD TRACK RODS LEFT

83061010001

Unavailable

28

NUT LEFT

83061010003

Unavailable

96

TRACK ROD KIT CPL. ATV

00050010011

Unavailable

97

BALL JOINT KIT LOWER ATV

00050010008

Unavailable

98

BALL JOINT KIT UPPER ATV

00050010009

Unavailable

99

UPPER A ARM SWIVEL HEAD KIT

00050010010

Unavailable

29

SPEEDOMETER BRACKET

83014051000

Unavailable

30

HH collar screw M6x12 TX30

0025060126

Unavailable
