FRAME

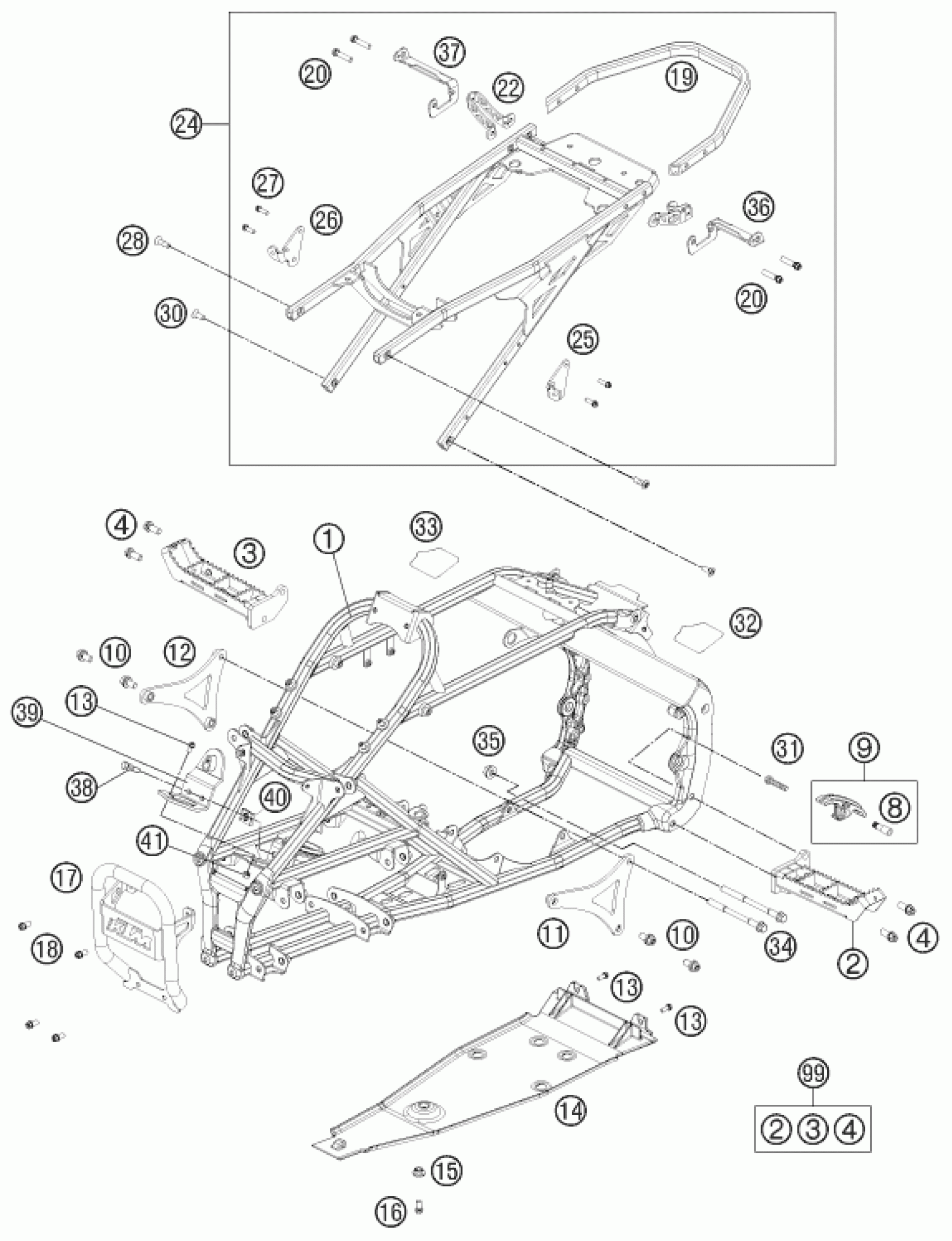

KTM 525 XC ATV 2011 FRAME Diagram
#
19
SUB FRAME-BRACKET 07
83003002010
Unavailable
20
HH COLLAR SCREW M8X35 TX40
0025080356S
Unavailable
21
LOCK WASHER 8MM
36003014000
Unavailable
22
FENDER MOUNTING
83003002030
Unavailable
24
SUB FRAME CPL.
83003002244
Unavailable
25
HEELGUARD FIXING L/S
83003002040
Unavailable
26
HEELGUARD FIXING R/S
83003002041
Unavailable
28
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
Unavailable
30
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
Unavailable
27
HH collar screw M6x20 TX30
0025060206
Unavailable
31
HH collar screw M8x45 TX40
0025080456
Unavailable
2
FOOTREST L/S
83003040300
Unavailable
33
PROTECT.FILM F. FRAME R/S 2008
83003099100
Unavailable
34
Enginebrac. screw M10X123 WS=1
59003013000
Unavailable
35
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
36
FLASHER BRACKET L/S
83014035000
Unavailable
37
FLASHER BRACKET R/S
83014036000
Unavailable
3
FOOTREST R/S
83003041300
Unavailable
4
AH collar screw M10x24 ISA45
0035100249
Unavailable
8
BUSHING
83003053051
Unavailable
9
CHAIN SLIDING PIECE BELOW
83003053000
Unavailable
10
COLLAR SCREW M10X18 TX
0023100183
Unavailable
17
FRONT BUMPER BLACK
8300300300030
Unavailable
32
PROTECT.FILM F. FRAME L/S 2008
83003099000
Unavailable
1
FRAME ATV-XC ''NC08'' 2009
8300300110030
Unavailable
11
ENGINE SUPPORT L/S CPL.
83003013044
Unavailable
12
ENGINE SUPPORT R/S CPL.
83003113044
Unavailable
13
HH collar screw M6x16 TX30
0025060166
Unavailable
99
FOOTPEG KIT ATV
00050010002
Unavailable
38
TAMPERPROOF SCREW F. IGN. LOCK
60011064000
Unavailable
39
BRACKET F. LOCK BLACK
8300308000033
Unavailable
40
RANGE CHANGE METAL NUT M8
54603048000
Unavailable
41
Hex. nut DIN 934 M6
0934060003
Unavailable
14
FRAME PROTECTION BELOW
83003090000
Unavailable
15
BEARING BUSHING INSIDE 03
60007061000
Unavailable
16
HH collar screw M8x20
0025080206
Unavailable
18
HH COLLAR SCREW M8X16 TX40
0025080166
Unavailable
