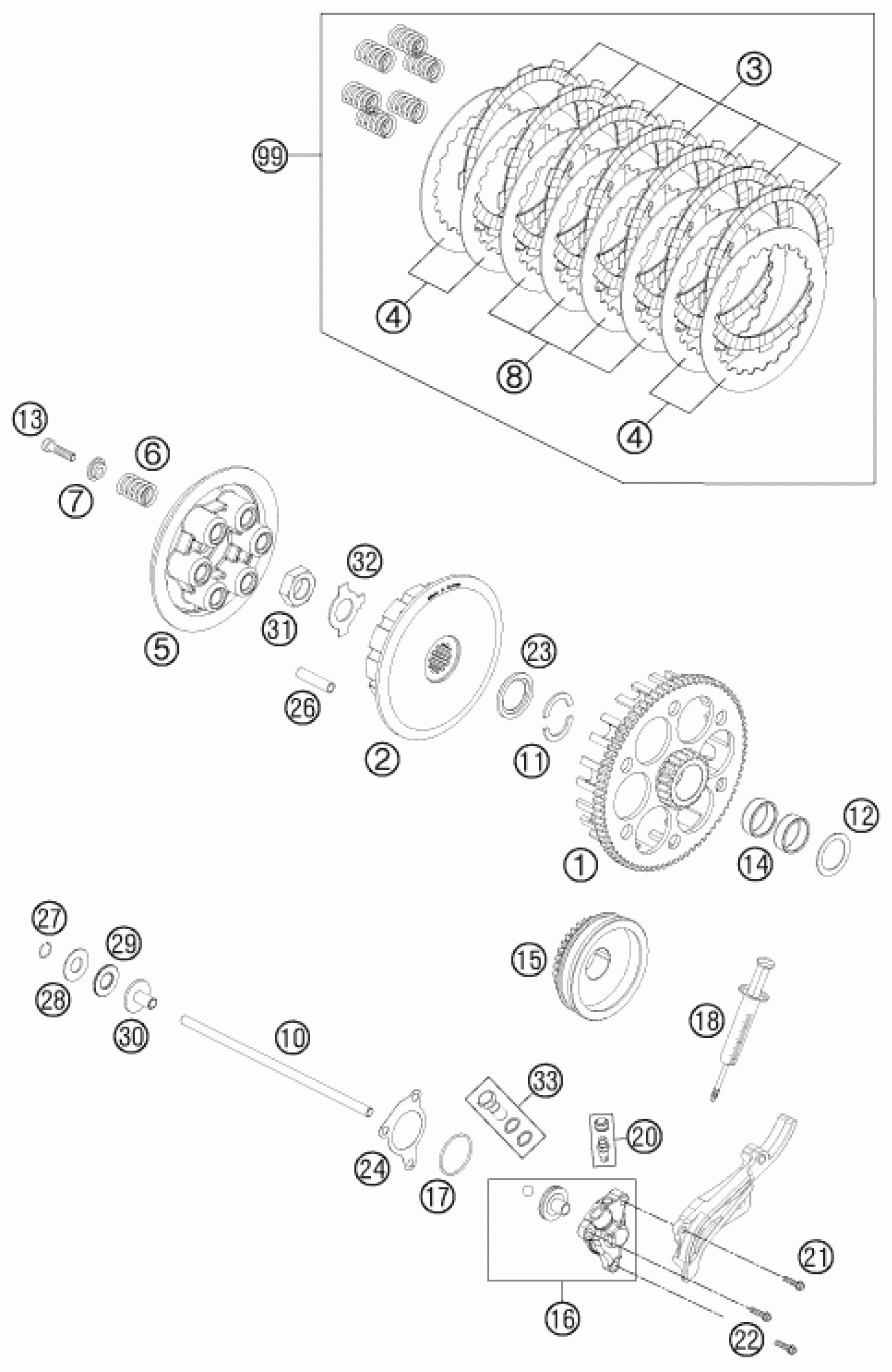

KTM 525 XC ATV 2011 CLUTCH Diagram

#

Description
Price

99

CLUTCH KIT 400-525 4T 06-12

59032011010

Unavailable

2

INNER HUB - RACING 2007

59032002500

Unavailable

3

LINING DISC 2MM 04

59032011100

Unavailable

4

INTERMEDIATE DISC 1MM 2002

59032010100

Unavailable

1

CLUTCH CAGE 75 T

83032000078

Unavailable

6

CLUTCH SPRING 2,5X43MM

59032005000

Unavailable

7

Spring retainer 6.2X12X18X5.2

59032006050

Unavailable

8

INTERMEDIATE DISC 1,4MM 2002

59032010200

Unavailable

5

PRESSURE CAP WITH OIL BORE 07

59032003500

Unavailable

10

PUSH ROD L=201MM 07

83032054000

Unavailable

11

HALF-WASHER 03

59032007000

Unavailable

12

SUPPORTWASHER 25X35X1

59032017000

Unavailable

13

AH SCREW DIN6912 M6X25

0984060252

Unavailable

14

NEEDLE BEAR K 25X29X10

0405252910

Unavailable

15

PRIMARY GEAR 31T CPL.

83032022031

Unavailable

16

OUTPUT CYL. WITH BLEEDER SCREW

75032061044

Unavailable

17

O-ring 30x1.5 NBR 70

0770300015

Unavailable

18

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

20

BLEEDER SCREW WITH CAP

54732064000

Unavailable

21

HH collar screw M6x30 TX30

0025060306

Unavailable

22

HH collar screw M6x20 TX30

0025060206

Unavailable

23

STEPPED WASHER 03

59032009000

Unavailable

24

GASKET FOR SLAVE CYLINDER

59032065000

Unavailable

26

DRIVING SLEEVE D=8, L=33 06

59032004300

Unavailable

27

CIRCLIP DIN7993-RW12

0993012000

Unavailable

28

AXIAL WASHER AS1226 12X26X1

54637098200

Unavailable

29

AXIAL NEEDLE BEARING AXK 1226

54637097200

Unavailable

30

PRESSURE PIECE 125-380 '98

50332054051

Unavailable

31

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

Unavailable

32

LOCK WASHER

56532018000

Unavailable

33

HOLLOW SCREW + COPPER GASKET

59032062000

Unavailable
