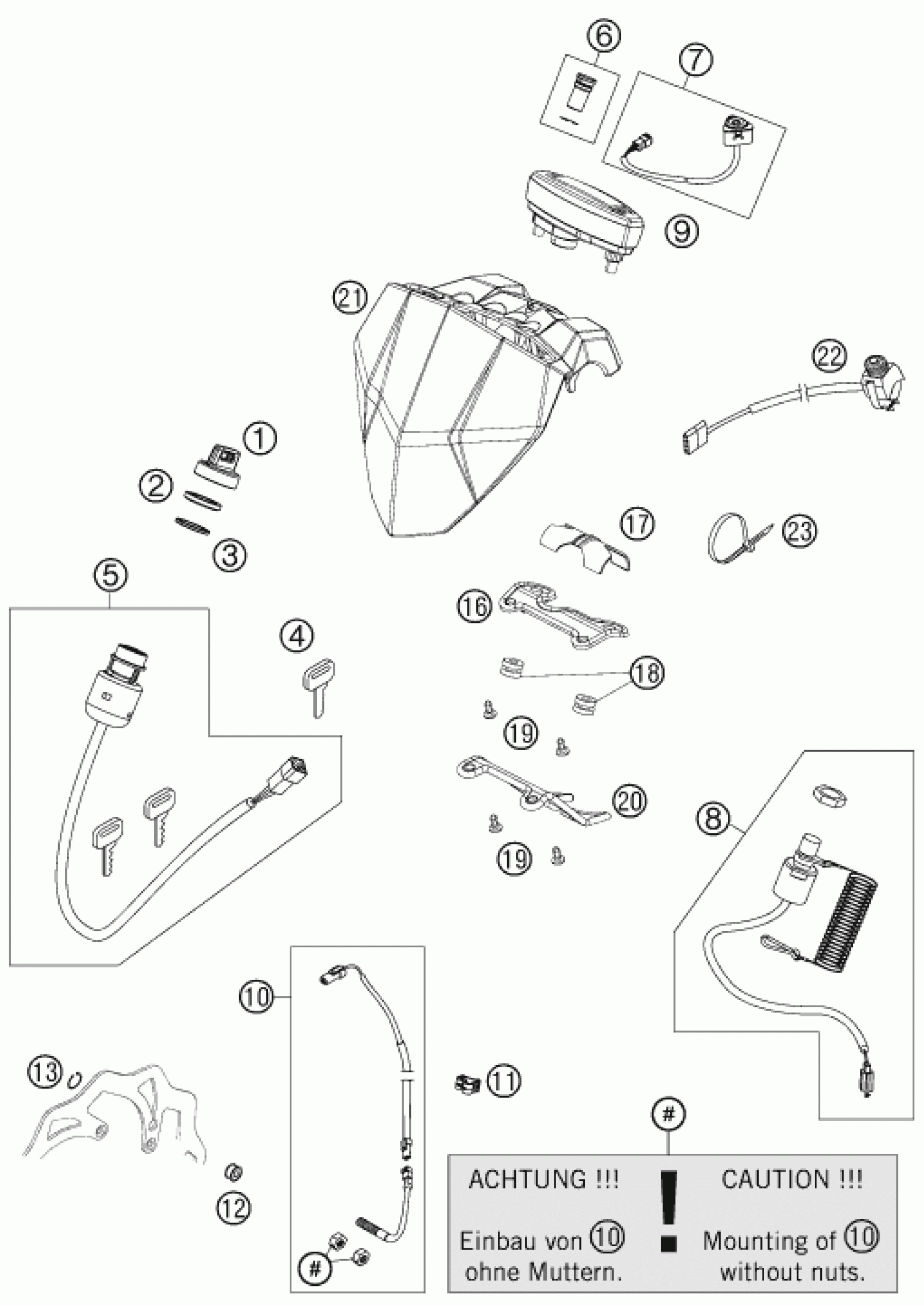

KTM 525 XC ATV 2010 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

23

Cable tie 200/4.6mm black

44011076200

Unavailable

2

IGNITION LOCK NUT M24X1

50311066050

Unavailable

3

WASHER F. IGNITION LOCK 03

58411066450

Unavailable

4

KEY BLANK BLACK ''T'' GR

40011166200

Unavailable

1

KEY COVER CAP

83011067050

Unavailable

5

LOCK SET

83011066044

Unavailable

6

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

6

NEUTRAL INDIC. LIGHT GREEN '98

58011023300

Unavailable

7

HAZARD WARNING BUTTON

60211022000

Unavailable

8

TETHER SWITCH

83011089000

Unavailable

10

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

Unavailable

11

Line guide

83013026000

Unavailable

12

SENSOR MAGNET ADVENTURE 01

58214069050

Unavailable

21

DASHBOARD SUPPORT

83014070100

Unavailable

13

TAB WASHER DIN6799-RS 7,0

0799070000

Unavailable

22

STARTER BUTTON 06

63011074000

Unavailable

6

REVERSE GEAR CONTROL LAMP

83011022000

Unavailable

6

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

9

SPEEDOMETER DIGITA KHM F.10''

54814069500

Unavailable

16

SPEEDOMETER BRACKET

83014060000

Unavailable

17

HANDLEBAR SUPPORT DASHBOARD

83014170010

Unavailable

18

rubber grommet 16x10.8x3

58214069051

Unavailable

19

EJOT PT screw K50x12

0081050121

Unavailable

20

STIFFENING DASHBOARD SUPPORT

83014060050

Unavailable
