1968 Suzuki 50M12 Crankshaft-Starter Dynamo Diagram

← All diagrams

Find the part on the Crankshaft-Starter Dynamo diagram for your 1968 Suzuki 50M12, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

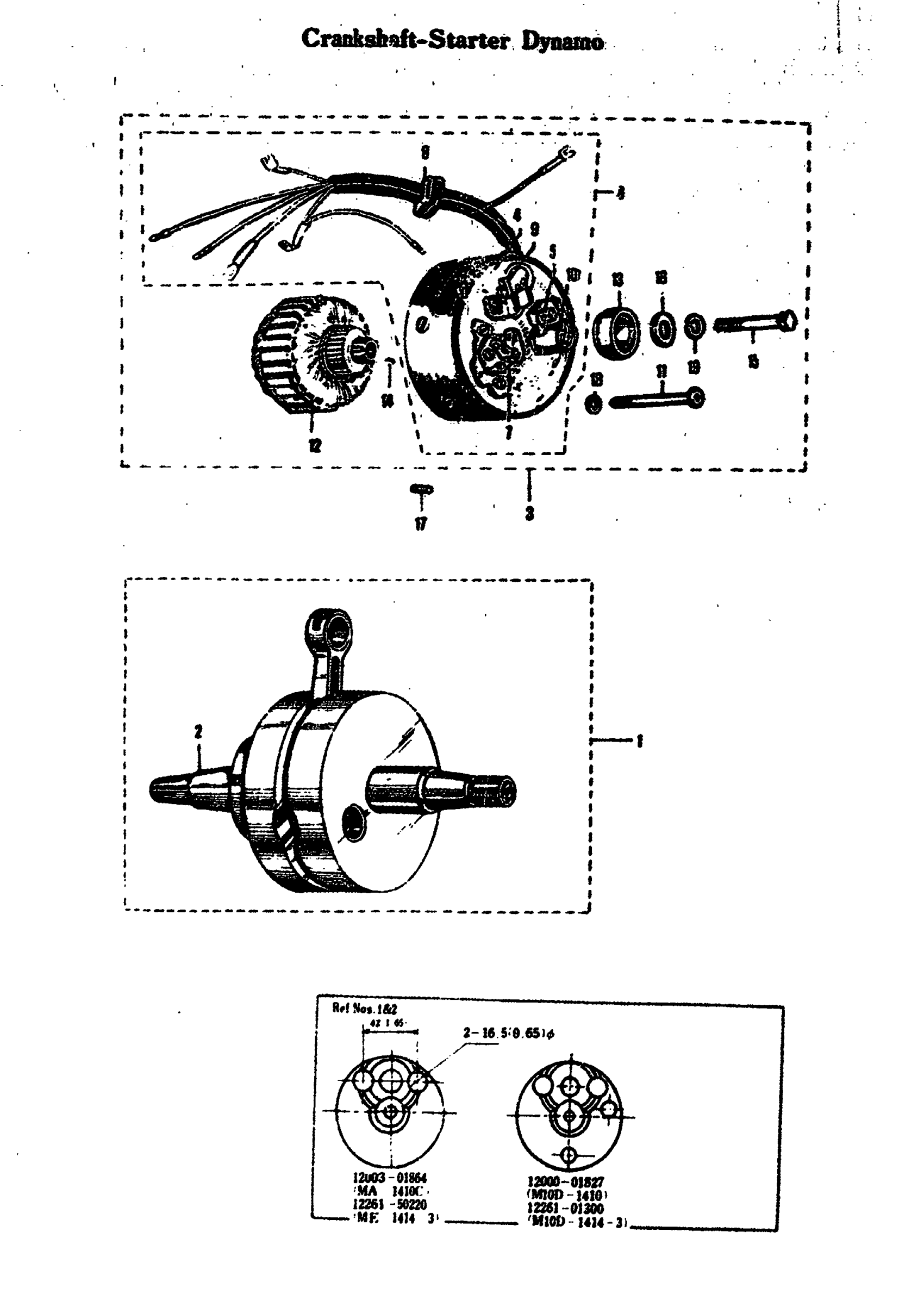

1968 Suzuki 50M12 Crankshaft-Starter Dynamo Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASS'Y

12000-01827

—
Out of stock

1

CRANKSHAFT ASS'Y | O.M10-2995330

12003-01864

—
Out of stock

2

LEFT CRANKSHAFT

12261-01300

—
Out of stock

2

LEFT CRANKSHAFT | O.M10-2995330

12261-50228

—
Out of stock

3

STARTER DYNAMO ASS'Y

31400-01311

—
Out of stock

4

CARBON BRUSH SPRING

31635-50000

—
Out of stock

5

CONTACT BREAKER CAM OIL FELT

31000-03807

—
Out of stock

6

STATOR ASS'Y

31401-01311

—
Out of stock

7

CONTACT POINT ASS'Y

31440-01311

1
Out of stock

8

STARTER DYNAMO WIRING HARNESS

31485-01310

—
Out of stock

9

CARBON BRUSH

31631-01210

—
Out of stock

10

CONDENSER

31641-01310

1
Out of stock

11

STATOR FITTING SCREW

31661-01311

—
Out of stock

11

STATOR FITTING SCREW

31661-01310

—
Out of stock

12

ARMATURE

31710-01311

—
Out of stock

13

CONTACT BREAKER CAM

31724-01310

—
Out of stock

14

CONTACT BREAKER CAM KEY

31751-01310

—
Out of stock

15

ARMATURE BOLT

31791-01310

—
Out of stock

16

ARMATURE WASHER | .69) I.D.=6.7(0.26) T.=2.0

31792-01310

—
Out of stock

17

PIN (4X13.8) This part replaces 04211-04089.

04221-04089

1
Out of stock

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

3
Out of stock
