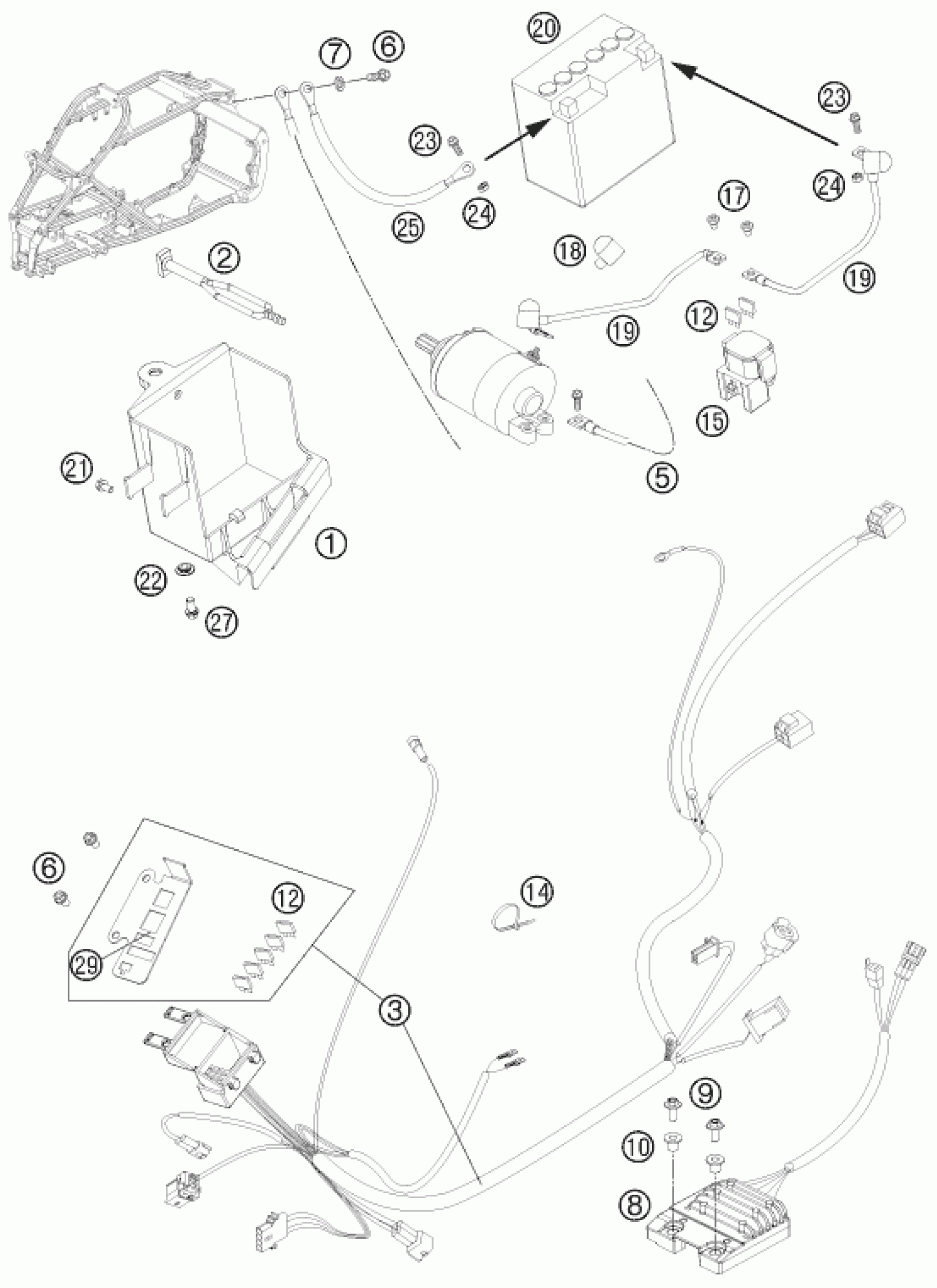

KTM 505 SX ATV 2012 WIRING HARNESS Diagram

#

Description
Price

1

BATTERY BOX

83011055000

Unavailable

2

RUBBER L=145MM

50303018000

Unavailable

3

WIRING HARNESS SX EU CPL.

83511275050

Unavailable

5

GROUND CABLE 2

83011097100

Unavailable

6

HH collar screw M6x16 TX30

0025060166

Unavailable

7

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

8

VOLTAGE REGULATOR

83011034100

Unavailable

9

HH collar screw M6x25 TX30

0025060256

Unavailable

10

COLLAR BUSHING 6.2X8.7X15X10.5

83011034050

Unavailable

12

Plug-in fuse, big 10A

58011109110

Unavailable

14

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

14

Cable tie 200/4.6mm black

44011076200

Unavailable

15

Starter reley 12V 99

58211058000

Unavailable

17

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

18

PROTECTION CAP F. STARTER ENG.

58440099000

Unavailable

19

STARTER CABLE

83011059000

Unavailable

20

BATTERY 12V 4AH YTX5L-BS

58511053000

Unavailable

21

HH collar screw M5x12 TX30

0025050126

Unavailable

22

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

23

COLLAR SCREW M6X12 TX

0023060123

Unavailable

24

Hex. nut DIN 934 M6

0934060003

Unavailable

25

GROUND CABLE 1

83011097000

Unavailable

27

HH collar screw M6x12 TX30

0025060126

Unavailable

29

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable
