Partiron

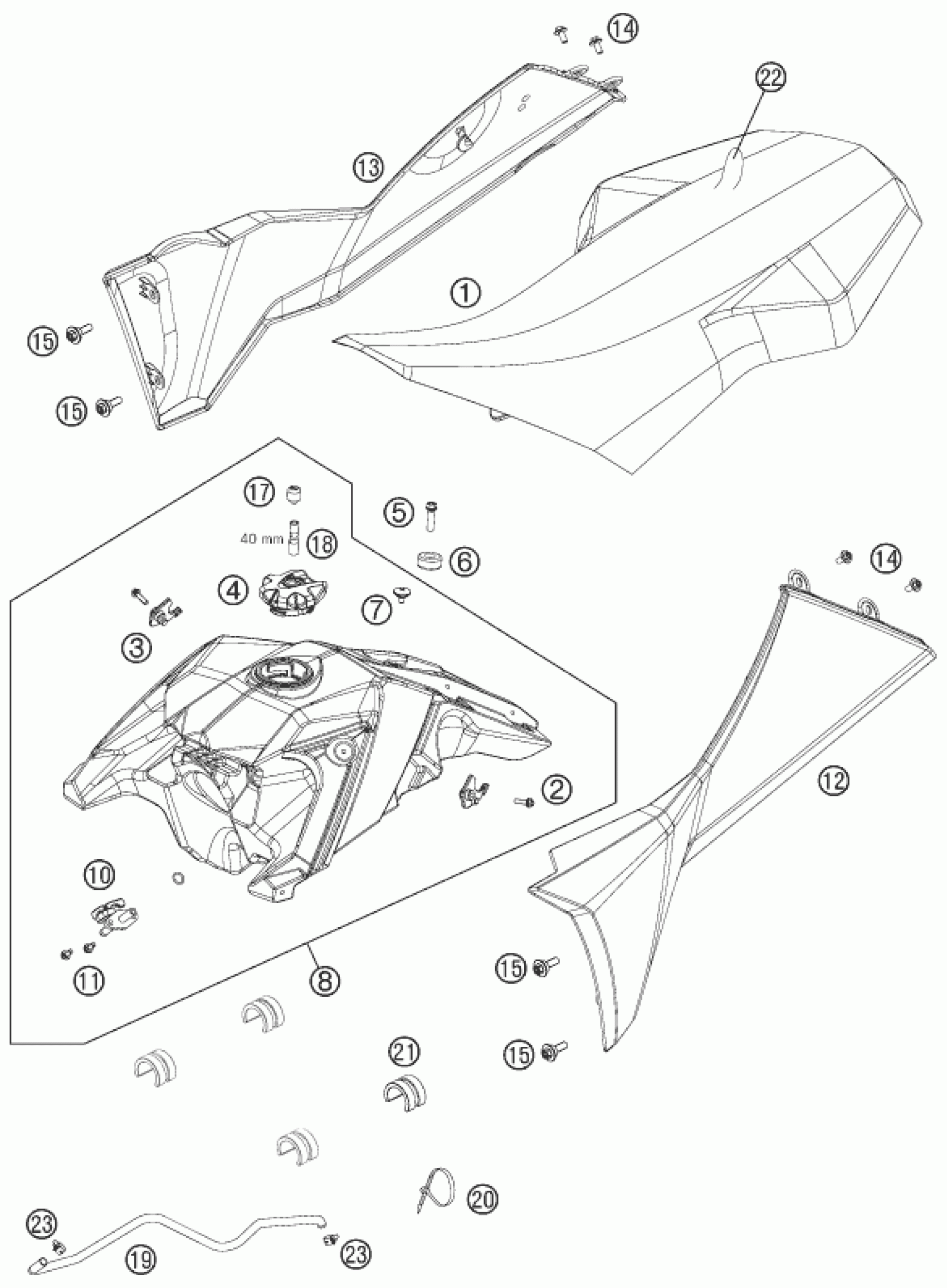

KTM 505 SX ATV 2012 TANK, SEAT Diagram

#

Description
Price

1

SEAT SX-F ATV 2009

83507040000

Unavailable

2

HH COLLAR SCREW M5X20 TX 30

0024050206

Unavailable

3

SPOILER BRACKET

83007013050

Unavailable

4

TANK PLUG ORANGE/BLACK

78007008044X4

Unavailable

5

HH collar screw M6x16 TX30

0025060166

Unavailable

6

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

7

SCREW FOR SEAT M6X11,5/8

58407011100

Unavailable

8

FUEL TANK CPL.10,5L

8350711303330

Unavailable

10

GAS COCK MIKUNI ON/OFF 2001

50307005000

Unavailable

11

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable

12

RADIATOR SPOILER L/S BLACK

8300805000030

Unavailable

13

RADIATOR SPOILER R/S BLACK

8300805100030

Unavailable

14

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

15

SCREW M6X20X5,5

83008100020

Unavailable

17

BLEEDING STUBBLE

83007030000

Unavailable

18

FUEL HOSE VITON 6X1,5 PER/M

58307016001

Unavailable

19

FUEL HOSE SX

83507016000

Unavailable

20

Cable tie 200/4.6mm black

44011076200

Unavailable

21

SPACER FUEL TANK 05

61007014000

Unavailable

22

SEAT COVER 09

83507040050

Unavailable

23

CLAMP STD DN14

00049140121

Unavailable

9

O-RING 13,00X2,30

0770130023

Unavailable
