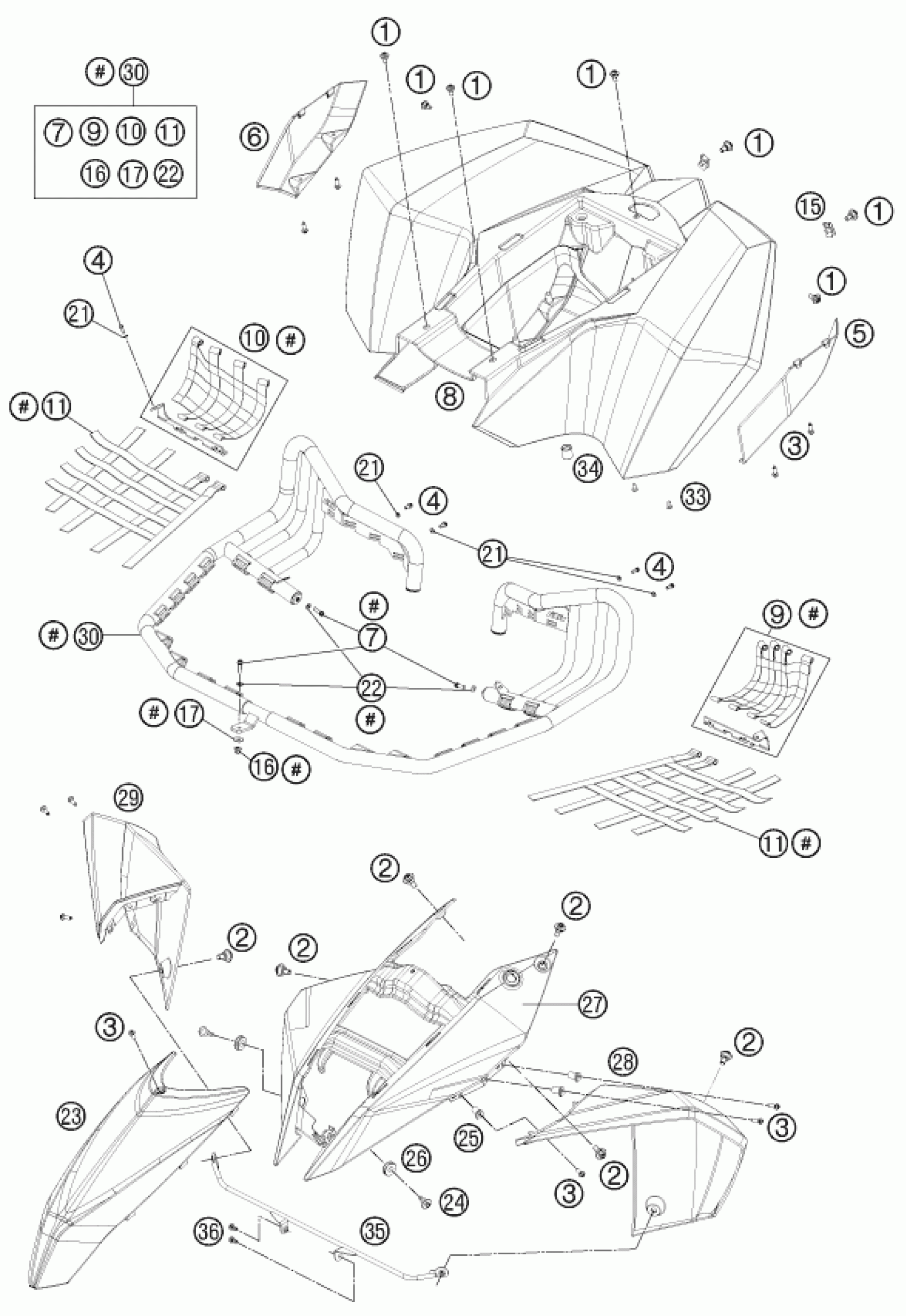

KTM 505 SX ATV 2012 MASK, FENDERS Diagram

#

Description
Price

1

SPECIAL SCREW M6X15X3

83008000015

Unavailable

2

special screw M6x12x3

83008000012

Unavailable

3

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

4

HH collar screw M6x16 TX30

0025060166

Unavailable

7

HH collar screw M8x25

0025080256

Unavailable

9

WEBBING BACK LEFT NERFBAR

83003095002

Unavailable

5

AIR INTAKE L/S ORANGE

8300807201004

Unavailable

6

AIR INTAKE R/S ORANGE

8300807202004

Unavailable

8

REAR FENDER+AIR INTAKE ORANGE

8300807214404

Unavailable

10

WEBBING BACK RIGHT NERFBAR

83003096002

Unavailable

11

LOWER WEBBING FOR NERFBARS

83003092107

Unavailable

15

clip nut M6

54603048100

Unavailable

16

STOP NUT DIN6926 M8 SS

0926080003

Unavailable

17

WASHER DIN9021-A 8,4

0021080003

Unavailable

21

WASHER DIN0125-A 6,4

0125060003

Unavailable

22

washer DIN 125 A -8.4

0125080003

Unavailable

23

FRONT-COVER SX

8350800200030

Unavailable

24

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

25

CLIP NUT EASY BOSS 60X2X7

83008010060

Unavailable

26

RUBBER SLEEVE D=12MM

41001052000

Unavailable

27

FRONT PLASTICPART ORANGE

8300800100104

Unavailable

28

FRONT FENDER L/S ORANGE

8300801000004

Unavailable

29

FRONT FENDER R/S ORANGE

8300801100004

Unavailable

30

NERFBARS BIG

83003097100

Unavailable

33

EJOT PT screw K50x12

0081050121

Unavailable

34

AIR FILTER BOX COVER

83006005000

Unavailable

35

FENDER-FRAME CONNECTION

83008010150

Unavailable

36

HH collar screw M6x10 TX30

0025060106

Unavailable
