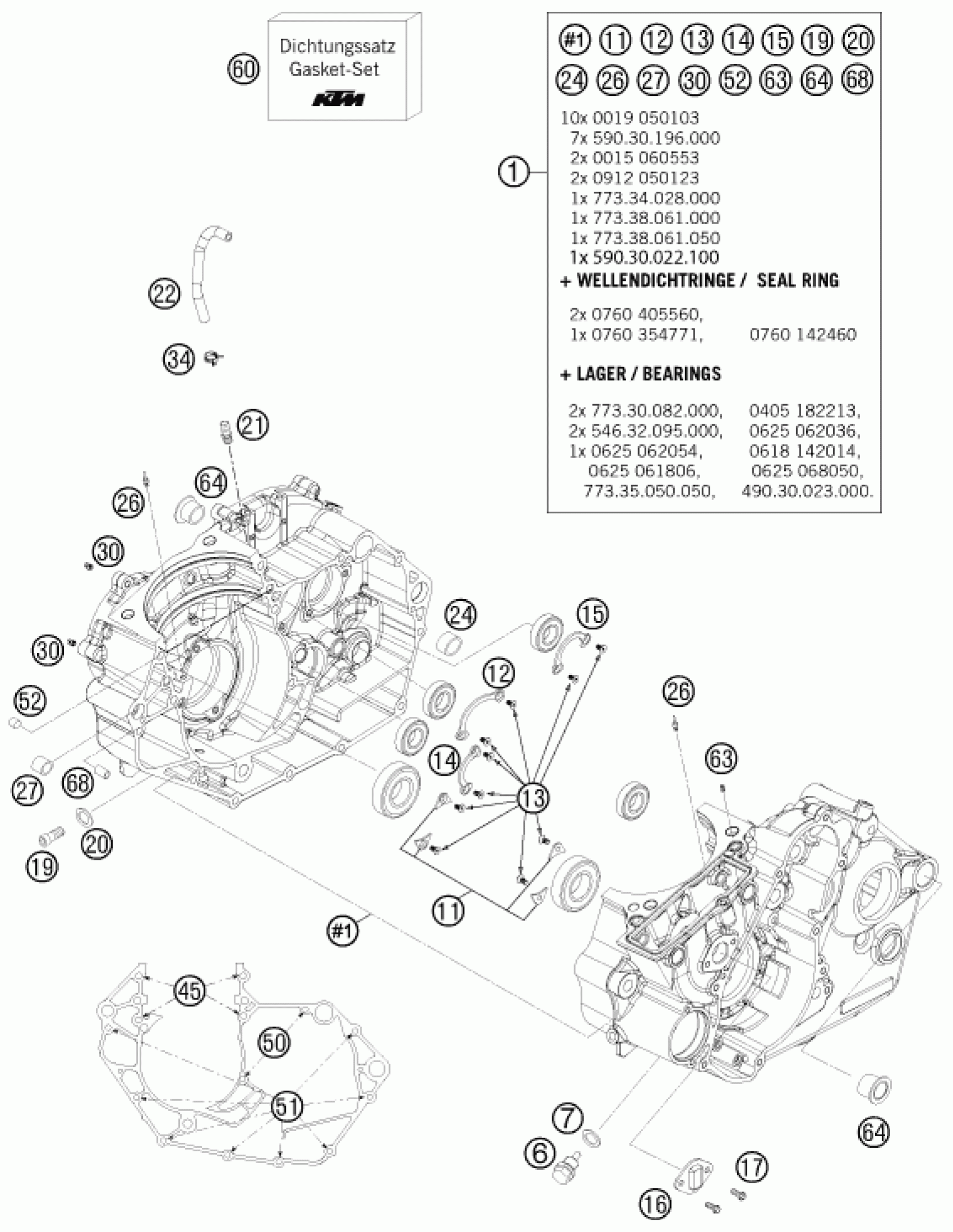

KTM 505 SX ATV 2012 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE 08

83530000044

Unavailable

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

7

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

11

BUSHING RETAINING PLATE

77330085000

Unavailable

12

BUSHING RETAINING PLATE

77333022100

Unavailable

13

INT TORX FLAT HEAD M5X10 10.9

0019050106

Unavailable

14

BUSHING RETAINING PLATE

77334090000

Unavailable

15

BUSHING RETAINING PLATE

77333024100

Unavailable

16

RETAINING PLATE

77336075050

Unavailable

17

HH collar screw M5x10 TX30

0025050106

Unavailable

19

AH SCREW DIN6912-M 8X20

0012080203

Unavailable

20

SEAL RING CU DIN7603- 8X12X1

0603082121

Unavailable

21

BLEEDER FLANGE M12X1,5 WS=13

59030022100

Unavailable

22

ENGINE BREATHER TUBE

83531050000

Unavailable

24

DOWEL 17 X 19 X 12

59030024000

Unavailable

26

oil jet 50 M5

60030063050

Unavailable

27

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

30

JET 100 BING(44-031/180) M4

59030058000

Unavailable

34

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

45

SCREW M7-1,0X70

77330067170

Unavailable

50

HH COLLAR SCREW M6X70 TX30

0025060706

Unavailable

51

HH collar screw M6x55 TX30

0025060556

Unavailable

52

CYLINDER ROLLER ZRO. 8,0X12 M4

0402080120

Unavailable

60

GASKET SET 450/505 SX-F

77330099000

Unavailable

63

THROTTLE M5X10X1

77338029052

Unavailable

64

CASE BUSH

75030010000

Unavailable

68

dowel sleeve 6x8x11.5

59030023000

Unavailable
