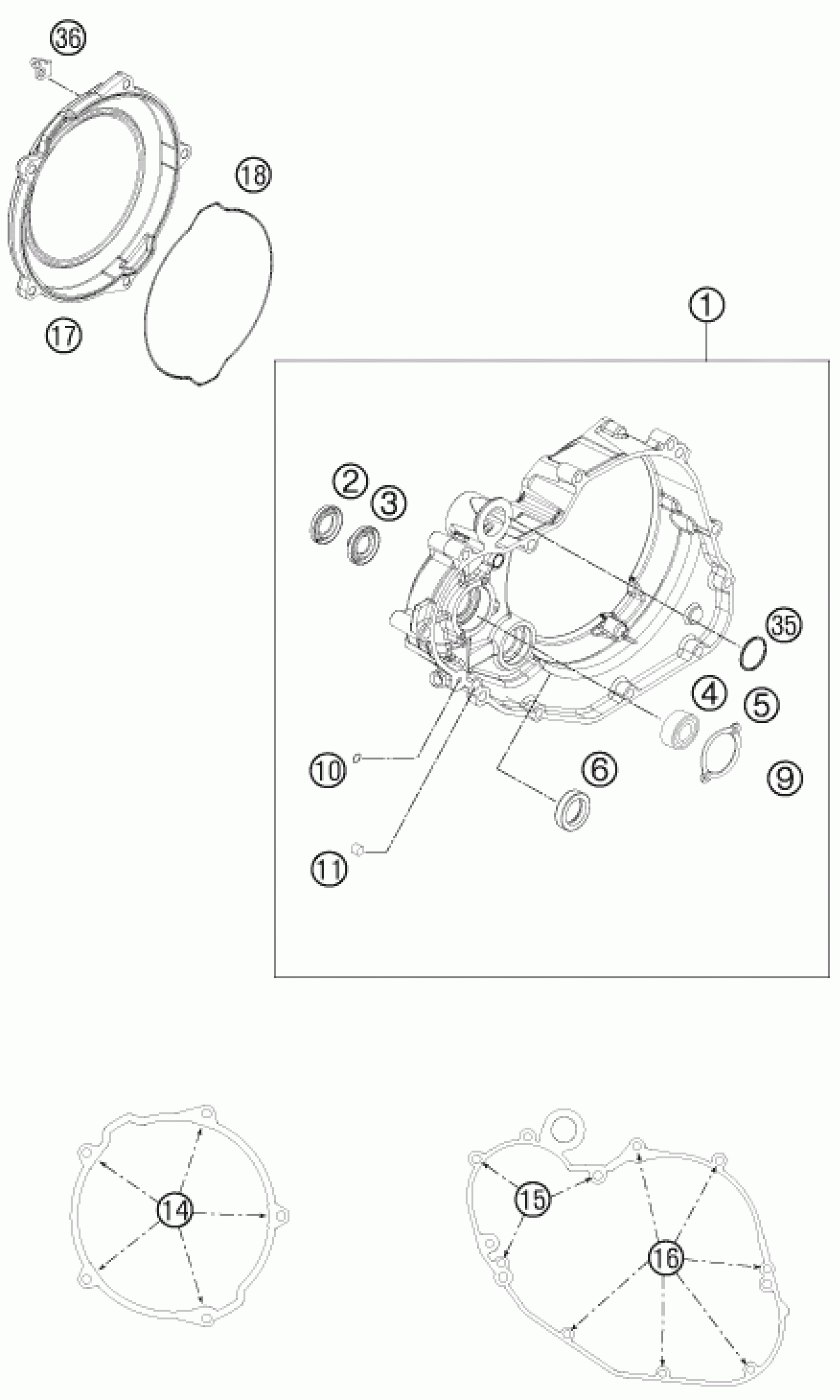

KTM 505 SX ATV 2012 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER CPL.

8353000104415

Unavailable

2

SHAFT SEAL RING 12x24x4

77335057000

Unavailable

3

SHAFT SEAL RING 12x24x4/5,5

77335056000

Unavailable

4

BALL BEARING 6202 C0 2

0625062022

Unavailable

5

RETAINING PLATE FOR WAPUSTOCK

77335064100

Unavailable

6

SHAFT SEAL RING 20X30X7

0760203071

Unavailable

9

INT TORX FLAT HEAD M5X10 10.9

0019050106

Unavailable

10

O-RING 8,00X1,5 NBR 70

0770080015

Unavailable

11

CYLINDER ROLLER ZRO. 8,0X12 M4

0402080120

Unavailable

14

HH collar screw M6x25 TX30

0025060256

Unavailable

15

SCREW M7-1,0X45

77330067145

Unavailable

16

HH collar screw M6x30 TX30

0025060306

Unavailable

18

CLUTCH CASE GASKET

77330027000

Unavailable

35

QUAD-RING 28,3X1,78 VITON

77335005000

Unavailable

36

SPRING BRACKET

77303026054

Unavailable

17

CLUTCH COVER OUTSIDE 09

7733002620015

Unavailable
