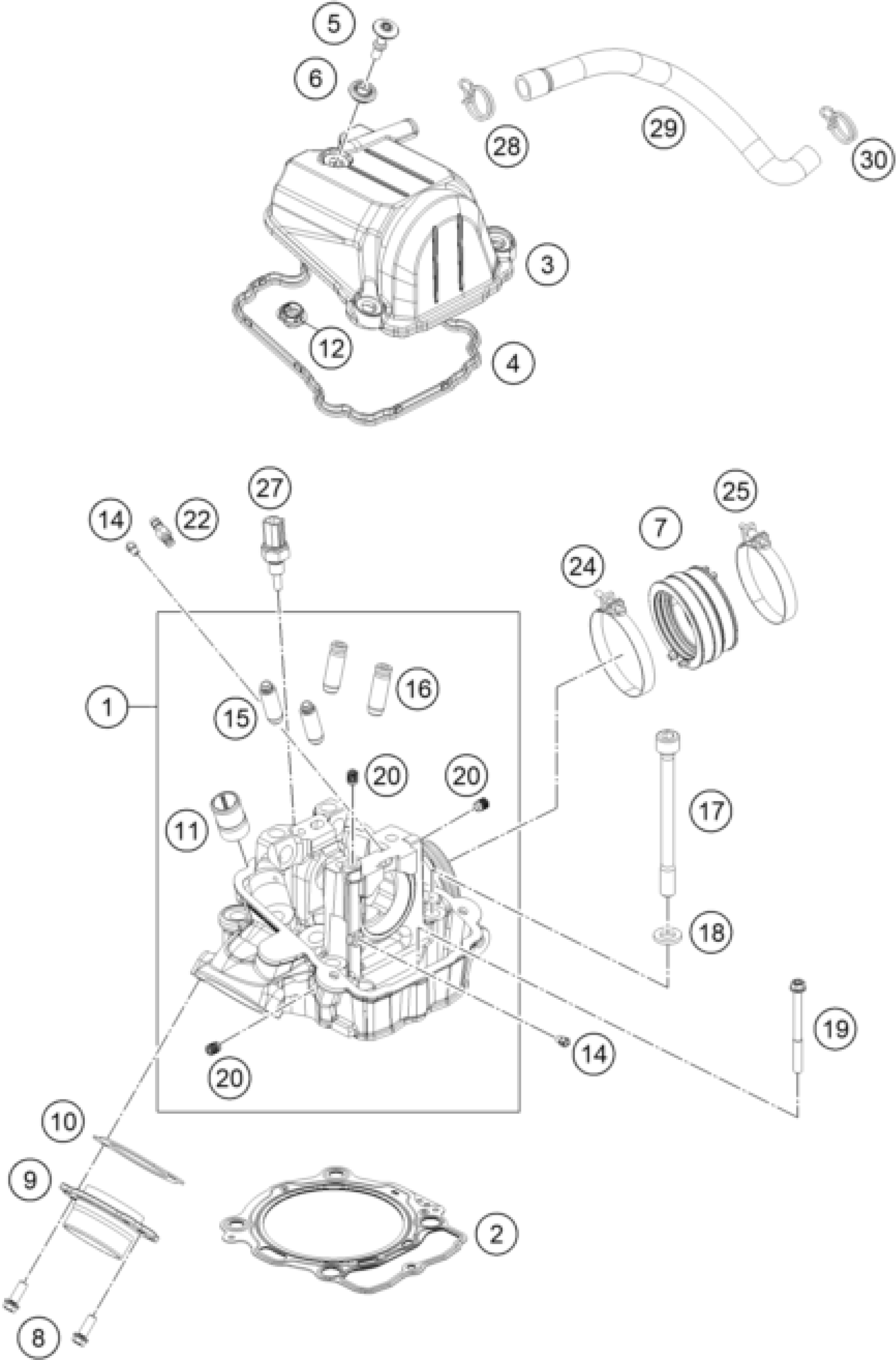

KTM 500 XCF-W 2022 CYLINDER HEAD Diagram

#

Description
Price

1

Cylinder head cmpl.

79536520244

Unavailable

2

CYLINDER HEAD GASKET (DN95)

79430036010

Unavailable

3

Valve cover

7953605200033

Unavailable

4

gasket valve cover

79536053000

Unavailable

5

Valve cover screw

79136054000

Unavailable

6

Rubber seal for collar screw

79136054050

Unavailable

7

rubber sleeve

79536044000

Unavailable

8

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

9

Exhaust system flange

78136139100

Unavailable

10

Exhaust gasket

79536041000

Unavailable

11

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

12

valve cover gasket

79536053150

Unavailable

14

oil jet 70 M5

60030063070

Unavailable

15

Valve guide, exhaust valve

79536026001

Unavailable

16

Valve Guide intake

79536025001

Unavailable

17

Cylinder Head Screw M10x1.25 L

78030044100

Unavailable

18

washer 19x10.5x2.5

77336089010

Unavailable

19

HH COLLAR SCREW M6X75 TX30

0025060756

Unavailable

20

SCREW PLUG

59030296000

Unavailable

22

VACUUM CONECTION M6/0,5MM

60036023100

Unavailable

24

Hose clamp GEMI 63mm 05

61036047000

Unavailable

25

Hose clip GEMI 58

77236048000

Unavailable

27

water temperature sensor

79435047000

Unavailable

28

CLAMP YDNAC 10173 (18MM)

58431082300

Unavailable

29

engine vent hose

79630087000

Unavailable

30

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable
