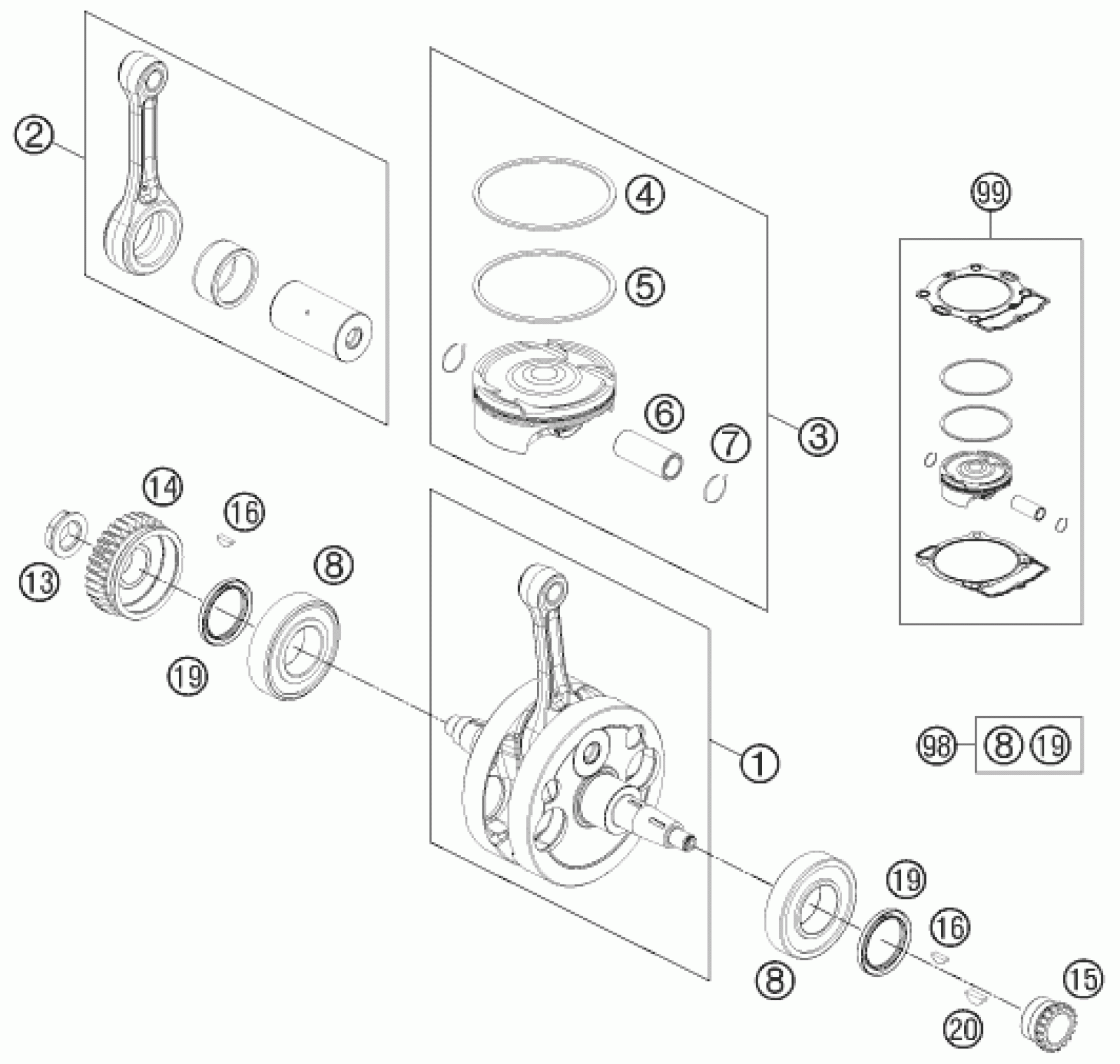

KTM 500 XC-W 2013 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.

78730018000

Unavailable

2

CON. ROD. REP. KIT

78730015044

Unavailable

3

PISTON I D=95MM

78730007100 I

Unavailable

3

PISTON II D=95MM

78730007100 II

Unavailable

4

COMPRESSION RING

78130030000

Unavailable

5

PISTONRING

78130032100

Unavailable

6

PISTON PIN

78130033000

Unavailable

99

PISTON KIT GR. II 500 EXC12-14

00050000212

Unavailable

7

CIRCLIP

77330074000

Unavailable

8

BALL BEARING 6207 TM-SX07E 39

0625062071

Unavailable

13

NUT PRIMARY WHEEL M20X1,5

78030029200

Unavailable

14

PRIMARY GEAR

78132000032

Unavailable

15

TIMING GEAR 18T.

78036014200

Unavailable

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

19

SHAFT SEAL RING 35X47X7 VITON

0760354774

Unavailable

20

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

98

CRANKSHAFT REP. KIT 450/500

00050002308

Unavailable

99

PISTON KIT GR. I 500 EXC 12-14

00050000211

Unavailable
