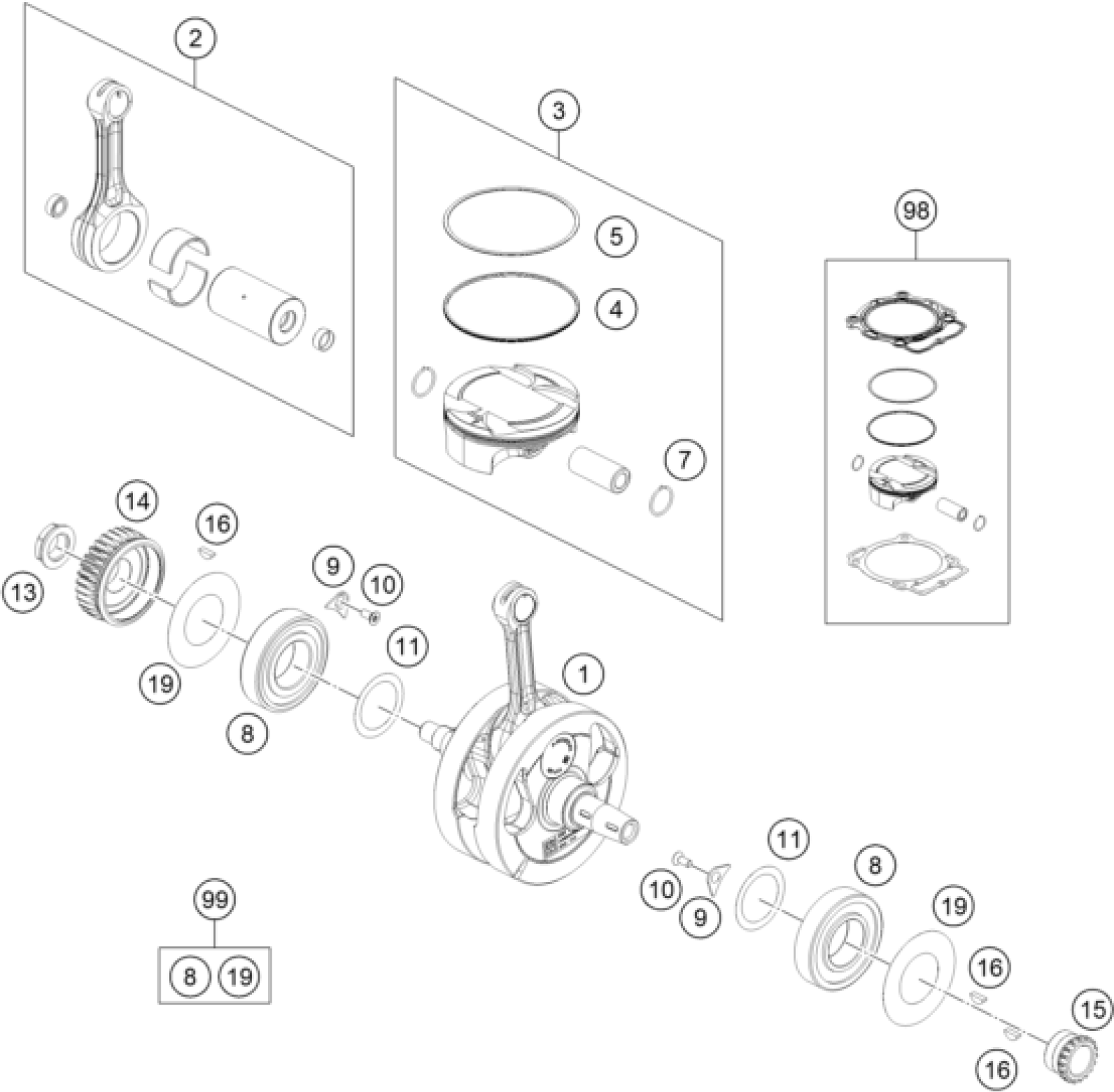

KTM 500 EXC-F 2025 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

Crankshaft cmpl.

A49030018000

Unavailable

2

Connecting rod rebuild kit

A49030015044

Unavailable

3

piston I cpl. D95mm

79730107000 I

Unavailable

3

piston II cpl. D95mm

79730107000 II

Unavailable

4

Oil scraper ring

79430132000

Unavailable

5

COMPRESSION RING

79430130000

Unavailable

7

CIRCLIP

79430174000

Unavailable

8

CYLINDER ROLLER BEARING NJ207

79430082000

Unavailable

9

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

10

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

11

SHIM WASHER 36X48X0,10

56530081000

Unavailable

11

SHIM WASHER 36X48X0,15

56530081100

Unavailable

11

SHIM WASHER 36X48X0,20 STEEL

56530081200

Unavailable

11

SHIM WASHER 36X48X0,30

56530081300

Unavailable

13

Nut M18x1.5 Precote LH thread

0910001801001S

Unavailable

14

Primary gear 29 teeth

A48032023029

Unavailable

15

Timing gear 18 teeth

78036014400

Unavailable

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

19

BEARING SEAL

79430084000

Unavailable

98

Piston kit I 500 Enduro

79730107110 I

Unavailable

98

Piston kit II 500 Enduro

79730107110 II

Unavailable

99

Crankshaft repair kit

79430018088

Unavailable
