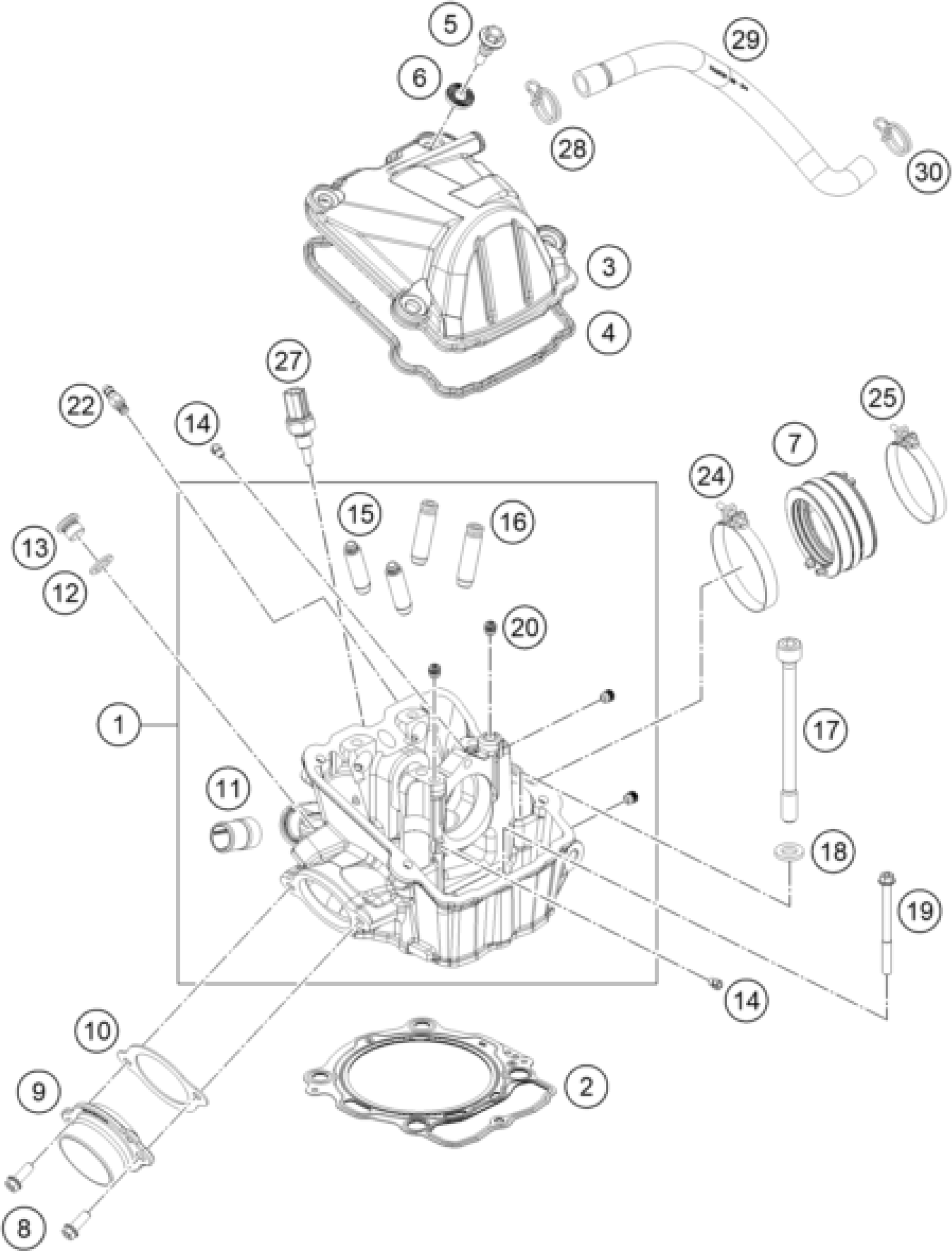

KTM 500 EXC-F 2019 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD CPL.

79436520044

Unavailable

2

CYLINDER HEAD GASKET (DN95)

79430036010

Unavailable

3

VALVE COVER

7943605200033

Unavailable

4

VALVE COVER GASKET

79436053000

Unavailable

5

VALVE COVER SCREW

78036054100

Unavailable

6

decoupling element

75036052010

Unavailable

7

RUBBER CUP

79236044100

Unavailable

8

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

9

Exhaust system flange

78136139100

Unavailable

10

Exhaust gasket

79536041000

Unavailable

11

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

12

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

13

PLUG SCREW SAS M12X1,5

78036024000

Unavailable

14

oil jet 70 M5

60030063070

Unavailable

15

VALVE GUIDE OUTLET

77136026001

Unavailable

16

VALVE GUIDE INTAKE

78136025001

Unavailable

17

cylinder head bolt M10x1.25 L=

78630044000

Unavailable

18

washer 19x10.5x2.5

77336089010

Unavailable

19

HH COLLAR SCREW M6X80 TX30

0025060806

Unavailable

20

SCREW PLUG

59030296000

Unavailable

22

VACUUM CONECTION M6/0,5MM

60036023100

Unavailable

24

Hose clamp GEMI 63mm 05

61036047000

Unavailable

25

Hose clip GEMI 58

77236048000

Unavailable

27

water temperature sensor

79435047000

Unavailable

28

CLAMP YDNAC 10173 (18MM)

58431082300

Unavailable

29

ENGINE BREATHING HOSE

79430087000

Unavailable

30

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable
