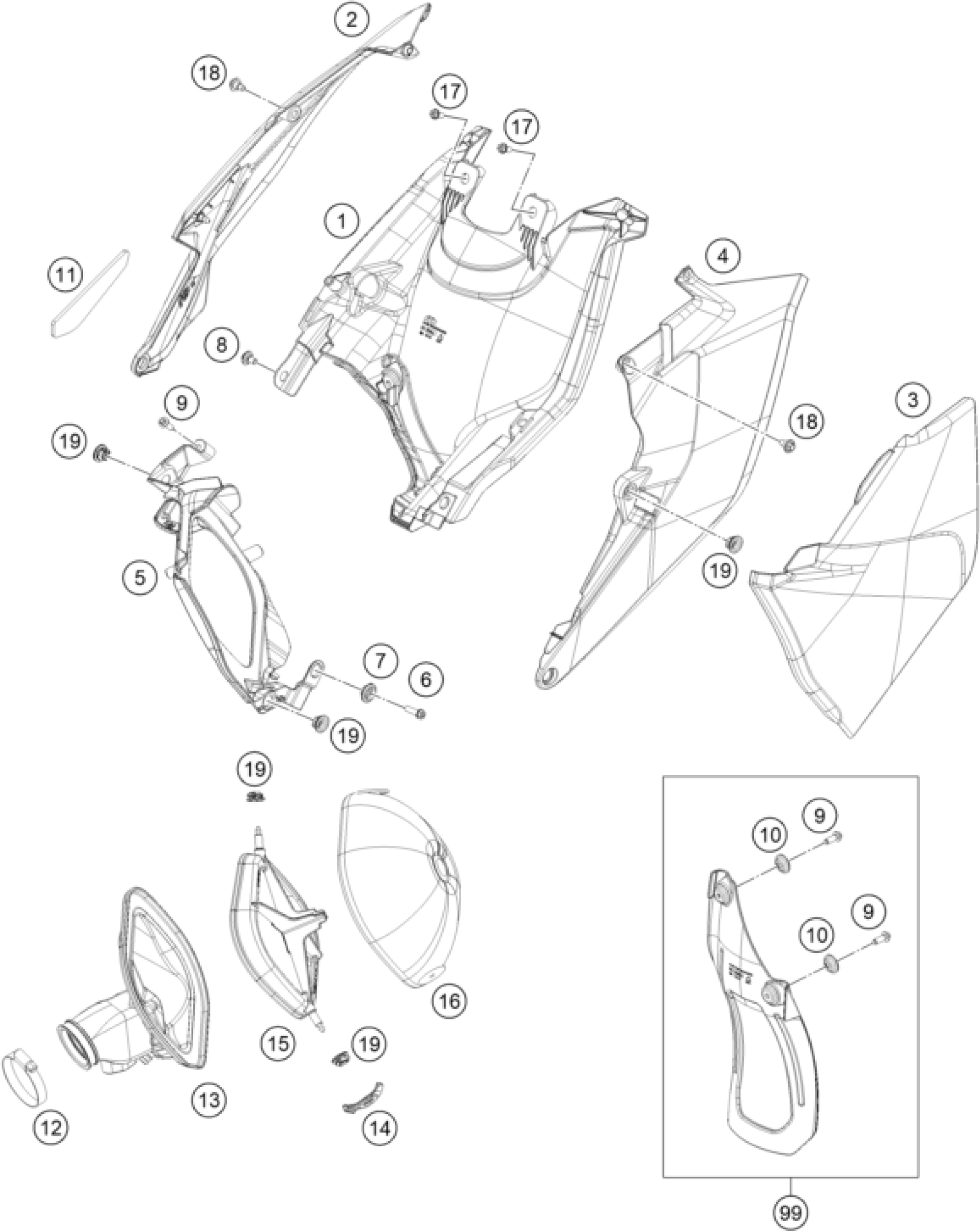

KTM 500 EXC-F 2019 AIR FILTER Diagram

#

Description
Price

1

AIR BOX BOTTOM PART BLACK

7900600100033

Unavailable

2

AIRBOX COVER RIGHT

79006004000EB

Unavailable

3

AIRBOX COVER LEFT

79006003000EB

Unavailable

4

AIRBOX SIDE COVER

79006007000EB

Unavailable

5

AIRBOX FRONT PART

7900600101033

Unavailable

6

HH collar screw M6x20 TX30

0025060206

Unavailable

7

COLLAR BUSH. F.REAR FENDER 07

77308013010

Unavailable

8

SPECIAL SCREW M6X15X3

83008000015

Unavailable

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

10

chain slider bushing

77304066050

Unavailable

11

THERMAL PROTECTION FOIL

79008013050

Unavailable

12

HOSE CLAMP 45-65MM

78006027000

Unavailable

13

INTAKE BOOT KPL.

79406226033

Unavailable

14

FILTER MOUNTING BRACKET

79006017000

Unavailable

15

AIR FILTER SUPPORT

79006016000

Unavailable

16

AIR FILTER

79006015000

Unavailable

17

HH collar screw M6x12 TX30

0025060126

Unavailable

18

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

19

quick release rubber grommet

47106003160

Unavailable

99

SPLASH PROTECTOR KIT

79006010010

Unavailable
