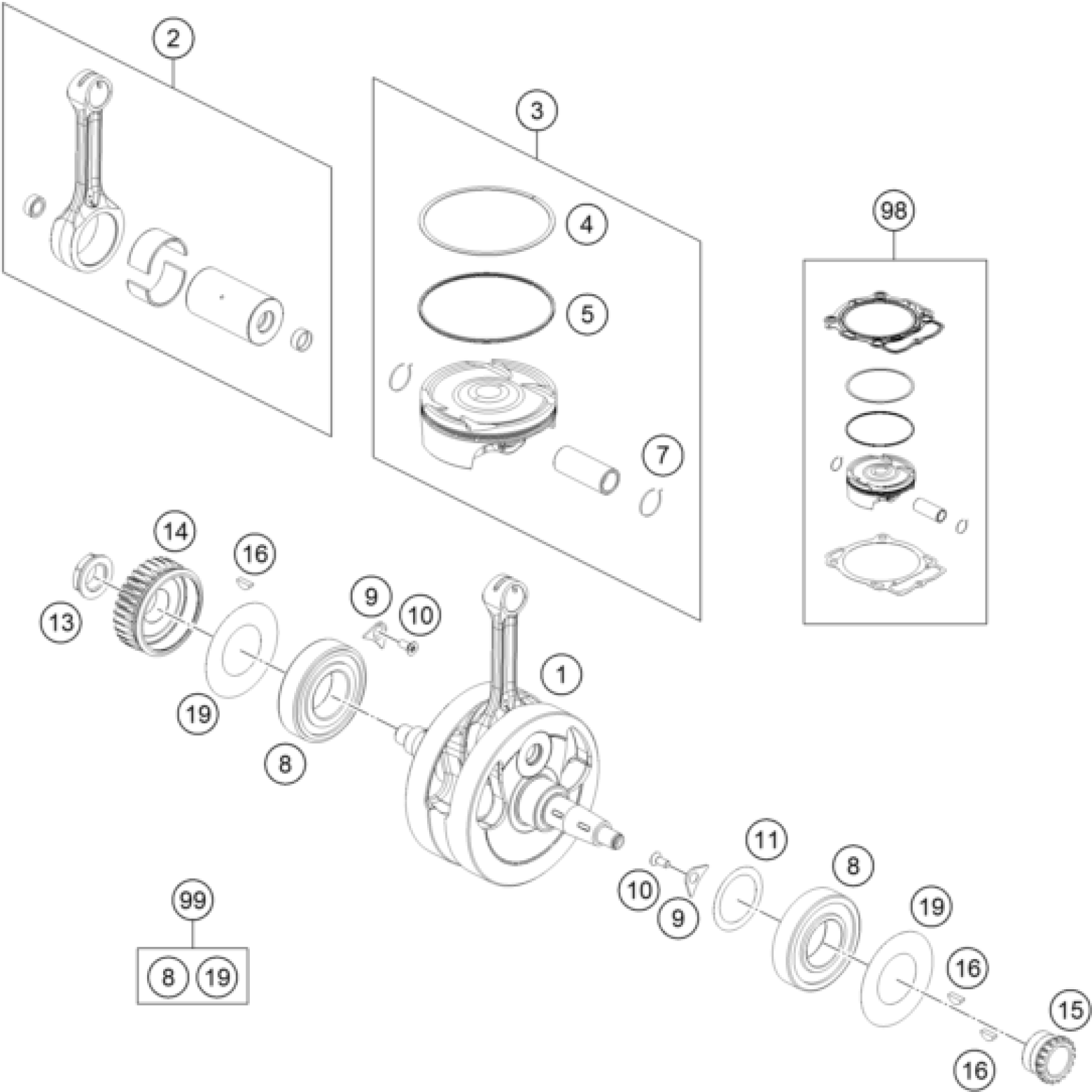

KTM 500 EXC-F 2019 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

Crankshaft cpl.

79630018100

Unavailable

2

CONROD REPAIR KIT

79630015044

Unavailable

3

PISTON I CPL.

79630007000 I

Unavailable

3

PISTON II CPL.

79630007000 II

Unavailable

4

COMPRESSION RING

78930030000

Unavailable

5

OIL SCRAPER RING

78930032000

Unavailable

7

CIRCLIP PISTON PIN

78130074000

Unavailable

8

CYLINDER ROLLER BEARING NJ207

79430082000

Unavailable

9

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

10

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

11

SHIM WASHER 36X48X0,10

56530081000

Unavailable

11

SHIM WASHER 36X48X0,15

56530081100

Unavailable

11

SHIM WASHER 36X48X0,20 STEEL

56530081200

Unavailable

11

SHIM WASHER 36X48X0,30

56530081300

Unavailable

13

NUT PRIMARY WHEEL M20X1,5

78030029200

Unavailable

14

primary gear 31t

79432023231

Unavailable

15

Timing gear

78036014300

Unavailable

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

19

BEARING SEAL

79430084000

Unavailable

98

PISTON KIT I 500 EXC-F

79630007010 I

Unavailable

98

PISTON KIT II 500 EXC-F

79630007010 II

Unavailable

99

CRANKSHAFT REP.KIT 450 SX-F 15

00050002315

Unavailable
