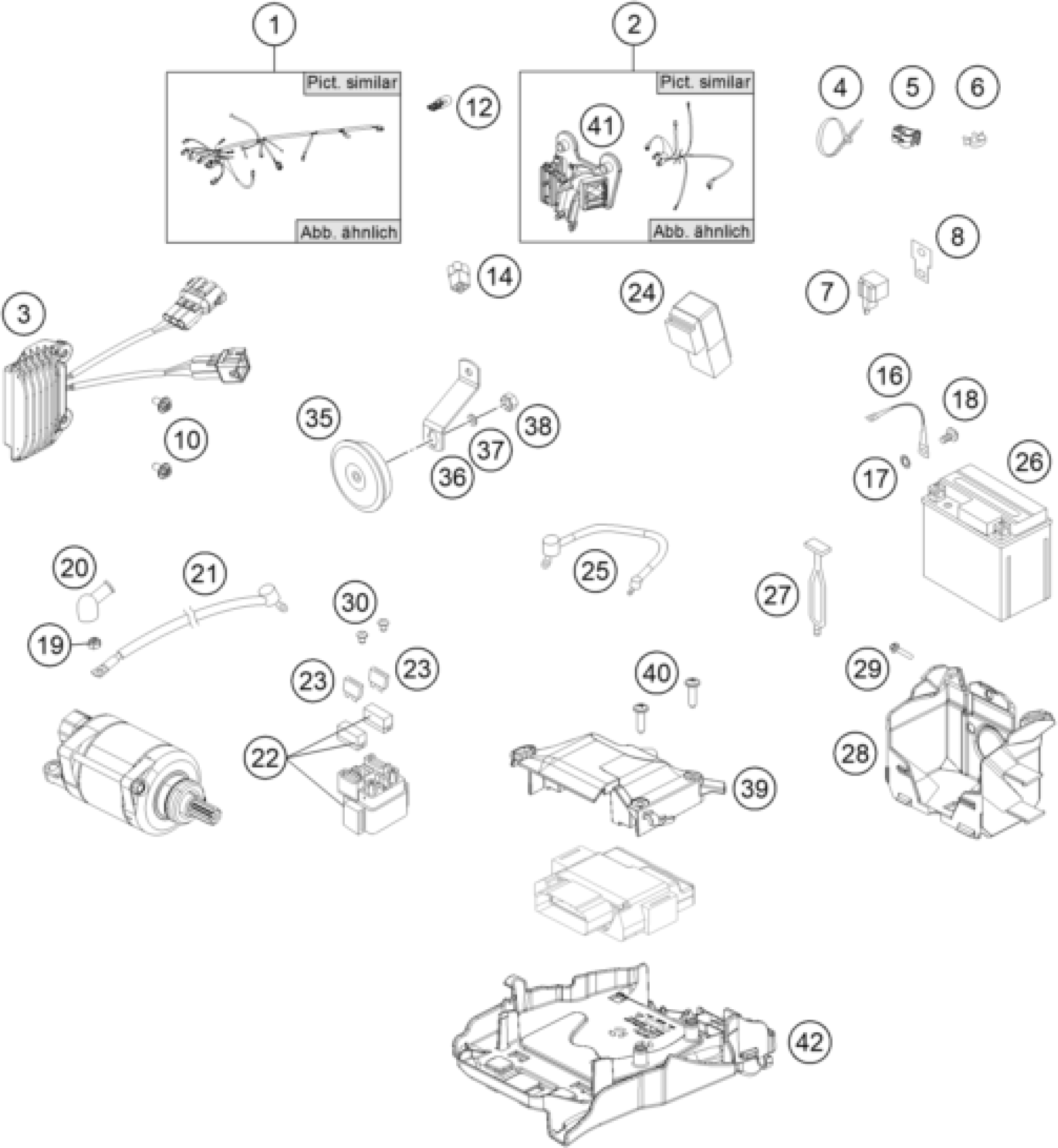

KTM 500 EXC 2016 WIRING HARNESS Diagram

#

Description
Price

22

Starter reley 12V 99

58211058000

Unavailable

23

Plug-in fuse, big 20A

58011109120

Unavailable

24

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

25

WIRING HARNESS BATTERY DUKE'99

58711086000

Unavailable

26

BATTERY 12V 4AH YTX5L-BS

58511053000

Unavailable

27

RUBBER L=145MM

50303018000

Unavailable

28

BATTERY CASE

78111055000

Unavailable

29

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

30

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

35

DC HORN 12V 07

50311060200

Unavailable

36

HORN BRACKET EXC 08

78011061000

Unavailable

37

WASHER DIN0125-A 5,3

0125050003

Unavailable

38

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

39

ECU SPLASH PROTECT.

77711094050

Unavailable

40

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

41

SUPPORT BRACKET

77711083000

Unavailable

1

WIRING HARN. EFI VMT. USA 14

78111175133

Unavailable

2

WIRING HARNESS LIGHT CPL. EU

77711079000

Unavailable

3

VOLTAGE REGULATOR

78111034000

Unavailable

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

Unavailable

6

WIRING HOLDER 16MM

57013072100

Unavailable

7

FLASHER UNIT

76511030000

Unavailable

8

BRACKET FOR FLASHER RELAY

58211031100

Unavailable

10

COLLAR SCREW M6X12 TX

0023060123

Unavailable

12

BULB 12V 2,3W (W2X4,6D)

49111425200

Unavailable

14

DUMMY PLUG AN 4-PIN

81211096000

Unavailable

16

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

17

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

18

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

19

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

20

Protection cap for starter eng

77240099000

Unavailable

21

STARTERCABLE 700 MM '97

58411059100

Unavailable

42

ELECTRIC BOX

77711094000

Unavailable
