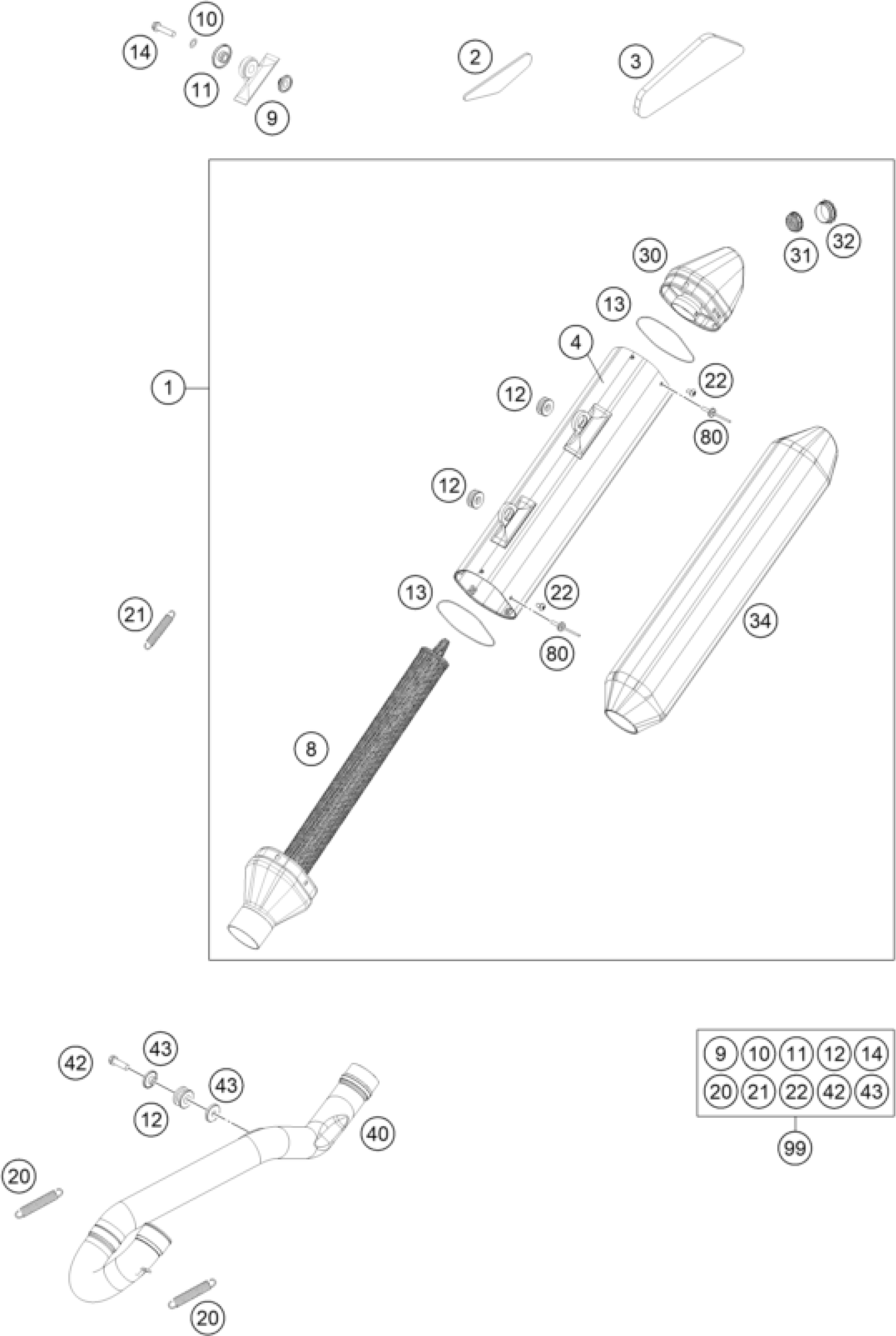

KTM 500 EXC 2015 EXHAUST SYSTEM Diagram

#

Description
Price

1

SILENCER

78705081000

Unavailable

2

THERMAL PROTECTION FOIL 07

77308013050

Unavailable

3

THERMAL PROTECTION FOIL

77208013050

Unavailable

4

SILENCER HOUSING EXC-F

78705081080

Unavailable

8

CONNECTING CAP CPL.

77705081050

Unavailable

9

BUSHING 7.5x12x20x8.2 11

77205069000

Unavailable

10

spring washer DIN 137 B - 6

0137060003

Unavailable

11

BUSHING 7.5x12x28x8.3 11

77205169000

Unavailable

12

DAMP. COMPON. BLACK

77205068000

Unavailable

13

O-RING 74,00X1,50 FKM 75SH

0770740015

Unavailable

14

HH collar screw M6x30 TX30

0025060306

Unavailable

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

21

TEN.SPRING L=75MM EY.MOVEABLE

50305116000

Unavailable

22

SCREW TORX M5X10

78105081010

Unavailable

30

END CAP CPL.

78705081060

Unavailable

31

THROTTLE ELEMENT CPL. EXC 07

77005081065

Unavailable

32

SIL. ELEMENT EXC-F 07

77005081055

Unavailable

34

ROCKWOOL PREFORMED

78905078700

Unavailable

40

EXH. PIPE EXC WITHOUT LAMBDA

78705007000

Unavailable

42

HH collar screw M8x25

0025080256

Unavailable

43

BUSHING FOR EXHAUST SUPPORT 03

59405069000

Unavailable

80

DUMMY RIVET 4,0X12 ALU

0011401200

Unavailable

99

EXHAUST PARTS KIT 12-14

00050000815

Unavailable
