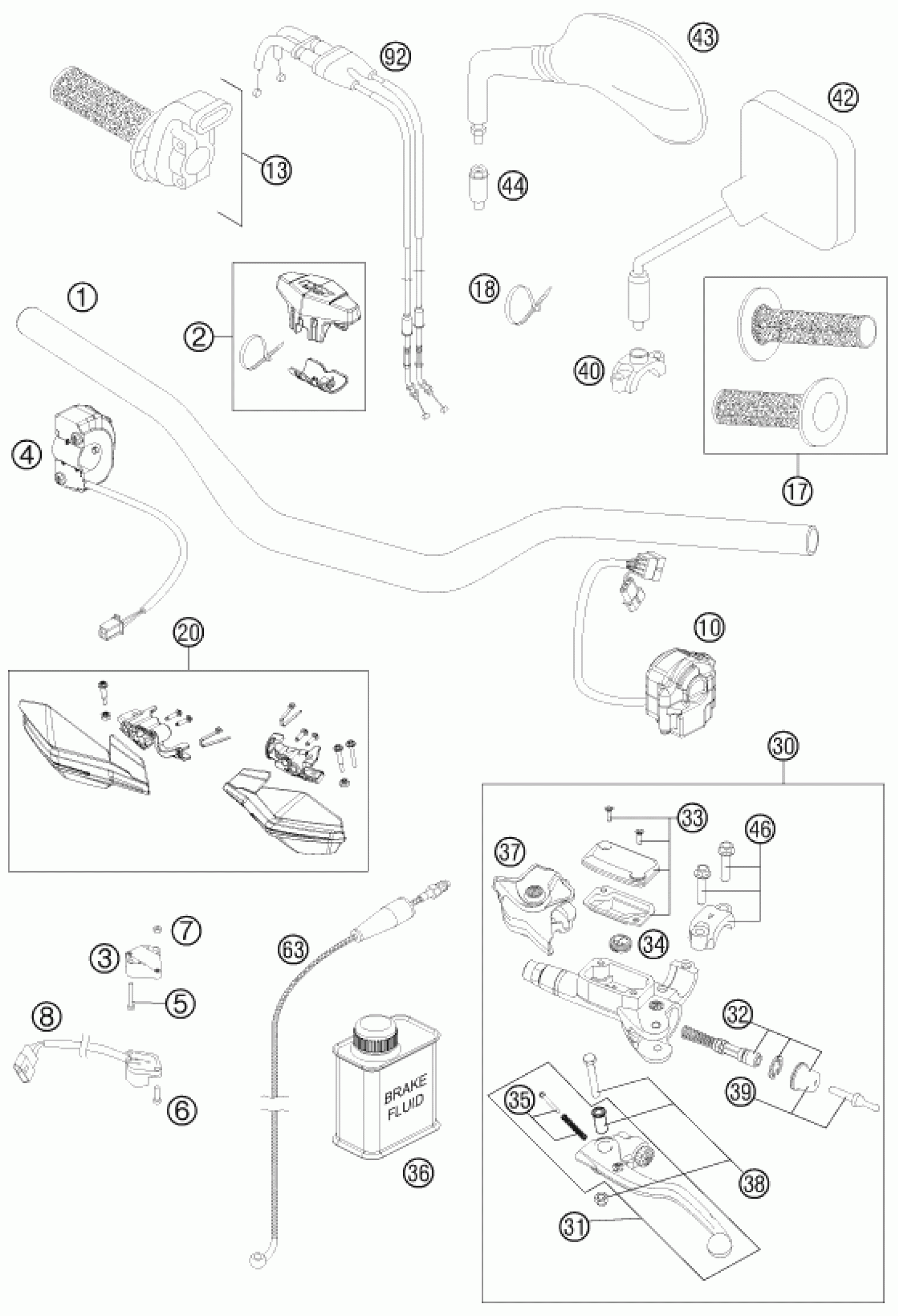

KTM 500 EXC 2012 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM

7800200100017

Unavailable

2

Bar pad cmpl.

77202002144

Unavailable

3

ADAPTER FOR FLASHER SWITCH '98

13011070060

Unavailable

4

START-EMERGENCY STOP SWITCH 08

76511074000

Unavailable

5

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

Unavailable

6

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

Unavailable

7

HEXAGON NUT DIN0934-M 4

0934040003

Unavailable

8

FLASHER SWITCH CEV '98

50311029000

Unavailable

10

LIGHT SWITCH L/S 08

76511070000

Unavailable

13

THROTTLE GRIP CPL. 4-ST. 09

77002010100

Unavailable

17

GRIP-SET GRAY/ORANGE 09

54802021200

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

20

HANDGUARDS CPL.LE+RI ORANGE

7810297900004

Unavailable

30

MASTER CYLINDER CPL. 06

54802030044

Unavailable

31

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

32

REP. KIT PISTON 06

54802032000

Unavailable

33

COVER HYD. CLUTCH CPL.

54802003000

Unavailable

34

VALVE

54802051000

Unavailable

35

BOLT KPL.

54802052000

Unavailable

36

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

37

PROTECTION CAP 06

54802037000

Unavailable

38

Lever screw cmpl. 06

54802038100

Unavailable

39

Push rod cmpl.

54802046000

Unavailable

40

Clamp for mirror

58012040150

Unavailable

42

Rear view mirror left

58012040000

Unavailable

42

Rear view mirror right

58012140000

Unavailable

43

MIRROR L/S 98

58412040000

Unavailable

43

MIRROR R/S 98

58412041000

Unavailable

44

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

46

CLAMP CPL. 06

54802005100

Unavailable

63

CLUTCH PIPE

78132063000

Unavailable

92

THROTTLE CABLE 250 SXF 2005

77002091000

Unavailable
