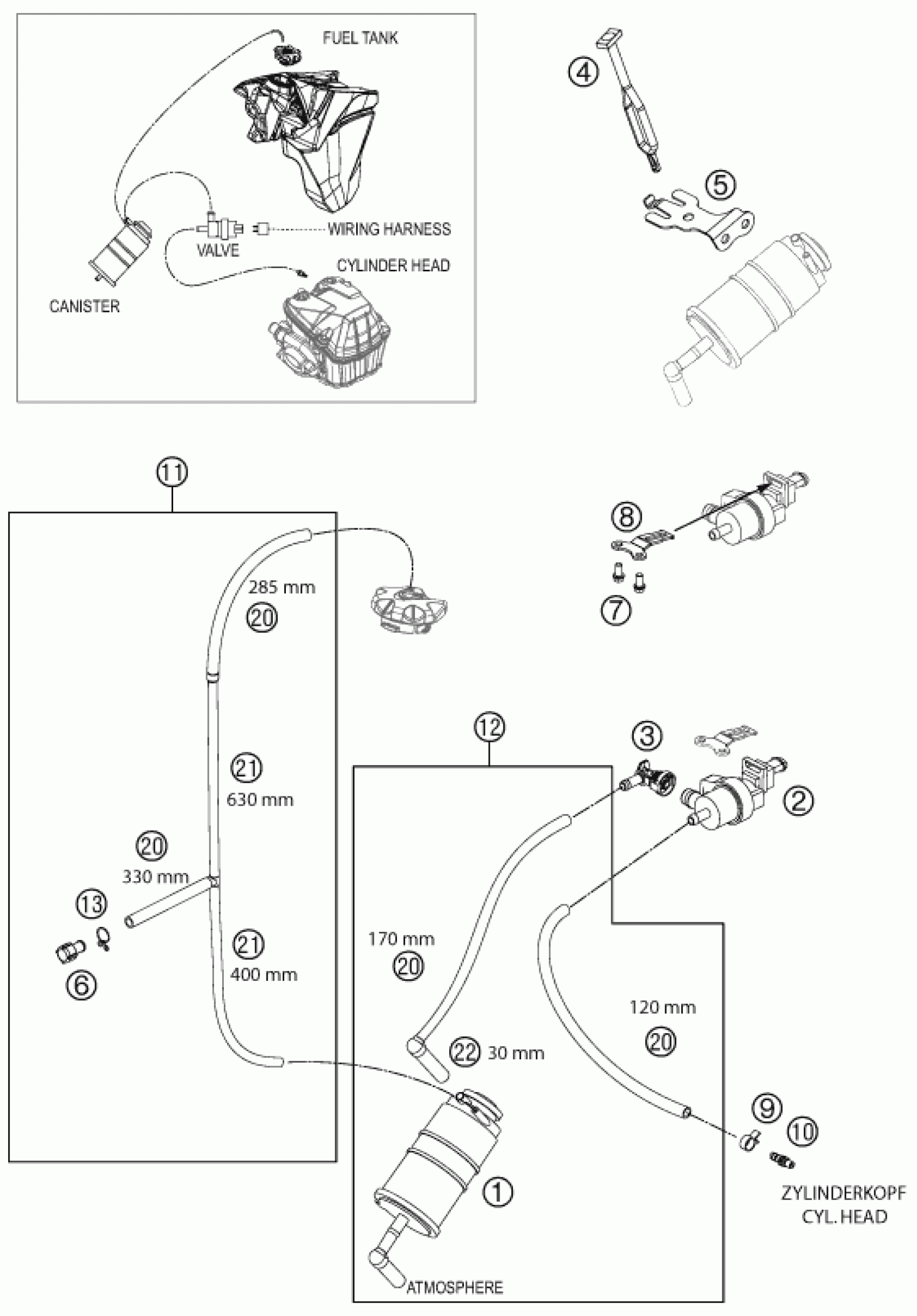

KTM 500 EXC 2012 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

EVAPORATIVE CANISTER 08

59415001100

Unavailable

2

VALVE FOR CARBON CANISTER 07

61115015000

Unavailable

3

FITTING PIECE NQV2 NW7 90°

61115016000

Unavailable

6

PLUG D=6/10 08

78015026000

Unavailable

7

HH collar screw M6x8 TX30

0025060086

Unavailable

8

BRACKET AKF-VALVE

78115002000

Unavailable

9

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

10

VACUUM CONECTION M6/0,5MM

60036023100

Unavailable

11

DRAINING EVAP-CAN. CPL. 2011

81215041033

Unavailable

12

EVAP CANISTER CPL. '12

78115001033

Unavailable

13

HOSE CLAMP YDNAC 10119 11MM

50231005000

Unavailable

20

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

21

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable

22

HOSE 8X12 FPM 120MM

60015219120

Unavailable

4

RUBBER L=145MM

50303018000

Unavailable

5

BRACKET EVAP.CANISTER 450/500

78115001050

Unavailable
