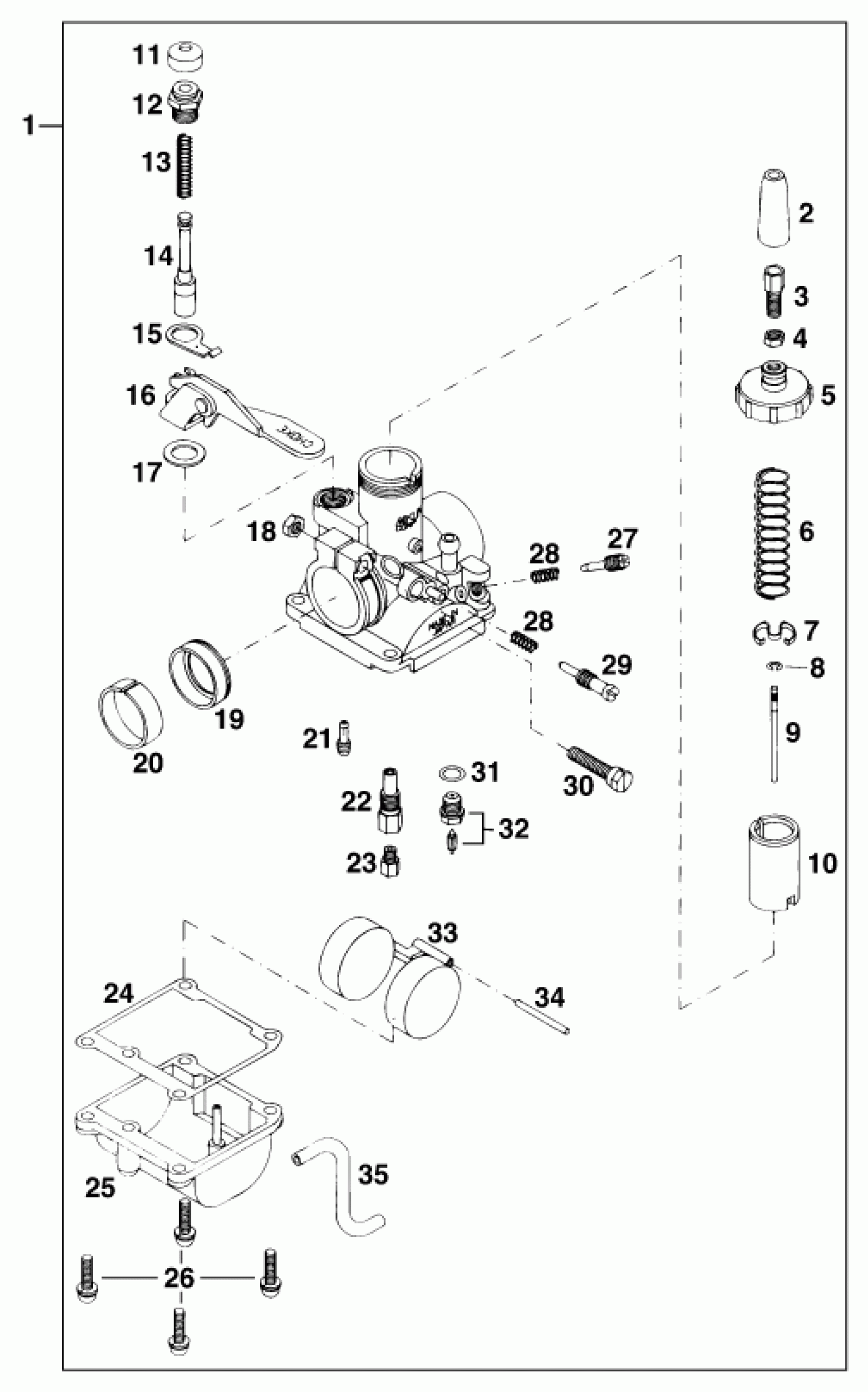

KTM 50 SXR PRO SENIOR <1994> CARBURETOR Diagram

#

Description

Price

1

% CARBURETOR CPL.

45031001544

Unavailable

2

RUBBER CAP

45031038000

Unavailable

3

ADJUSTING SCREW M6X0,75

45031025000

Unavailable

4

HH-NUT M6X0,75

45031026000

Unavailable

5

COVER

45031027000

Unavailable

6

SPRING

45031030000

Unavailable

7

RETAINING SPRING

45031009000

Unavailable

8

SPRING

45031045000

Unavailable

9

JET NEEDLE J8-4F18

45031034000

Unavailable

10

THROTTLE VALVE

45031035000

Unavailable

11

RUBBER

45031041000

Unavailable

12

FITTING

45031047000

Unavailable

13

SPRING

45031049000

Unavailable

14

STARTER PLUNGER

45031048000

Unavailable

15

SPRING PLATE

45031052000

Unavailable

16

STARTING LEVER

45031050000

Unavailable

17

WASHER

45031070000

Unavailable

18

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

19

RUBBER PLUG

45031039000

Unavailable

20

REDUCTION RING

45031239000

Unavailable

21

IDLING JET

45031007000

Unavailable

22

NEEDLE JET 45

45031021045

Unavailable

23

MAIN JET 60 MIKUNI

45031023060

Unavailable

24

GASKET FLOAT CHAMBER VM18

45031010000

Unavailable

25

FLOAT BOWL

45031011000

Unavailable

26

LENTIL HEAD SCREW M4X14 (SET)

45031014000

Unavailable

27

AIR REG. SCREW

45031017000

Unavailable

28

SPRING

45031015000

Unavailable

29

IDLE ADJ. SCREW VM16/18

45031019000

Unavailable

30

SCREW M5X27

45031046000

Unavailable

31

SEAL RING

45031018000

Unavailable

32

NEEDLE VALVE

45031020000

Unavailable

33

FLOAT

45031006000

Unavailable

34

PIN 2,5X27

45031008000

Unavailable

35

PVC-HOSE 3X5MM

52031137001

Unavailable
