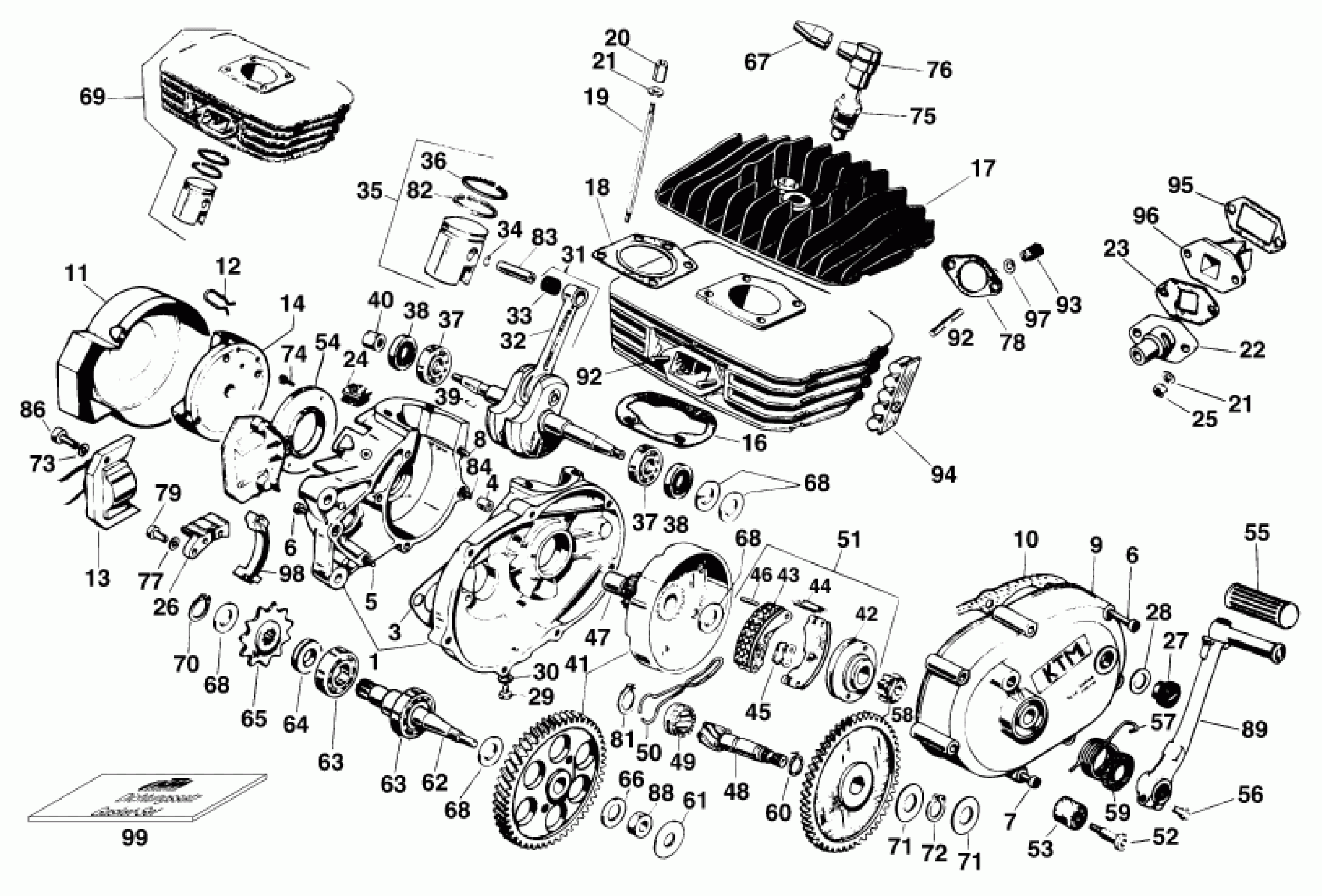

KTM 50 SXR PRO JUNIOR <1993> ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL. '97

45030000044

Unavailable

3

ENGINE CASE GASKET

45030039000

Unavailable

4

TENSION PIN 14X10X8

45030023000

Unavailable

5

AH SCREW DIN0912-M 6X40

0912060403

Unavailable

6

AH SCREW DIN0912-M 6X45

0912060453

Unavailable

7

AH SCREW DIN0912-M 6X50

0912060503

Unavailable

8

AH SCREW DIN0912-M 6X55

0912060553

Unavailable

9

* CLUTCH COVER

45030001000

Unavailable

10

GASKET CLUTCH COVER

45030025000

Unavailable

11

* IGNITION COVER

45030002000

Unavailable

12

* RETAINING SPRING

45030092000

Unavailable

13

* IGNITION COIL CPL.

45039006000

Unavailable

14

FLYWHEEL

45039005000

Unavailable

16

* CYL. BASE GASKET

36330030000

Unavailable

17

CYLINDER HEAD

45030006500

Unavailable

18

* CYL. HEAD GASKET

36330036000

Unavailable

19

STUD BOLT M6X112-25/15

36330042000

Unavailable

20

HH-NUT M6 36MM HIGH WS=12

45030079000

Unavailable

21

WASHER DIN0125-A 6,4

0125060003

Unavailable

22

INTAKE FLANGE FOR DELLORTO

36330050000

Unavailable

22

INTAKE FLANGE

45030050000

Unavailable

23

GASKET FOR INTAKE PIPE

49130438000

Unavailable

24

RUBBER GASKET

45030091000

Unavailable

25

Hex. nut DIN 934 M6

0934060003

Unavailable

26

* SECURING GUIDE

45030047000

Unavailable

27

OIL LEVEL CONTR. PLUG PVCM14

15130020000

Unavailable

28

SEAL RING 14,2X20X1

15130021000

Unavailable

29

HH SCREW DIN0933-M 8X10

0933080103

Unavailable

30

SEAL RING 8X14X1 AI

45038017000

Unavailable

31

% CRANKSHAFT STROKE 41,7MM

45030018000

Unavailable

32

% CON.ROD REPAIR KIT

45030015000

Unavailable

33

* NEEDLE BEARING 12X15X15

15130034000

Unavailable

34

* CIRCLIP

45030074000

Unavailable

35

PISTON CPL. "A" D=39MM

36330007100 A

Unavailable

35

PISTON CPL. "B" D=39MM

36330007100 B

Unavailable

35

PISTON CPL. "C" D=39MM

36330007100 C

Unavailable

35

PISTON CPL. "D,E" D=39MM

36330007100 D

Unavailable

36

PISTON RING D=39MM

36330031000

Unavailable

37

BALL BEARING 6203 TN9.C3

0625062031

Unavailable

38

* RADIAL SEAL RING 17X35X8

15130086000

Unavailable

39

WOODRUFF KEY DIN6888-2,5X3

0888025030

Unavailable

40

* HH-NUT M8X14, WS=15

16030028000

Unavailable

41

CLUTCH HUB 52-Z W.PRIM.15-Z

45032001500

Unavailable

42

INNER CLUTCH HUB

45032002000

Unavailable

43

BUSHING SLEEVE

16032011000

Unavailable

44

* CLUTCH SPRING REINFORCED

45032005500

Unavailable

45

JOINT FOR BLOCKS

45032008000

Unavailable

46

ROLLER 3X13,8

45032045000

Unavailable

47

* BUSHING 15X18X18

16032095000

Unavailable

48

STARTING SHAFT

45033050000

Unavailable

49

* KICKST. RATCHET

45033052000

Unavailable

50

SPRING

45033056000

Unavailable

51

CLUTCH HUB CPL. REINFORCED

45032002544

Unavailable

52

STOP SCREW M8

16233039000

Unavailable

53

RUBBER 10X26X18

16233040000

Unavailable

54

* GROUND PLATE IGNITION COIL

45039003000

Unavailable

55

* KICKSTARTER RUBBER

45033076000

Unavailable

56

HH SCREW DIN0933-M 7X25

0933070253

Unavailable

57

* KICKSTARTER SPRING

45033054000

Unavailable

58

KICKSTARTER SPROCKETS

45033051000

Unavailable

59

PLASTIC CAP KICKSTARTER

45033077000

Unavailable

60

O-RING 12X 2 NBR 70

0770012020

Unavailable

61

* WASHER 8,4X25X0,4

45033078000

Unavailable

62

COUNTER SHAFT

45033002000

Unavailable

63

BALL BEARING 6202 2RS1 C3

0625062027

Unavailable

64

* RADIAL SEAL RING 15X24X5

15133028000

Unavailable

65

CHAIN SPROCKET 11-Z

45033029000

Unavailable

66

WASHER 12,2X20X1,8

15133031000

Unavailable

67

RUBBER CAP

45039008000

Unavailable

68

* WASHER 15X22X0,4

45033022000

Unavailable

69

CYL.+ PISTON

36330005100

Unavailable

70

CIRCLIP 14X1,2

36333096000

Unavailable

71

WASHER 16X25X0,5

45033023000

Unavailable

72

CIRCLIP DIN0471-16X1

0471160150

Unavailable

73

WASHER DIN0125-A 5,3

0125050003

Unavailable

74

SCREW M4X10

45030090000

Unavailable

75

* SPARK PLUG

45039093007

Unavailable

76

* SPARK PLUG CONNECTOR

45039090000

Unavailable

77

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

Unavailable

78

GASKET

36330046000

Unavailable

79

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

81

CIRCLIP 17,5X1,2

45033024000

Unavailable

82

* COMP. RING D=39MM

36330032000

Unavailable

83

* PISTON PIN 8X12X31,4

15130033000

Unavailable

84

AH SCREW DIN0921-M 6X60

0912060603

Unavailable

86

AH SCREW DIN0912-M 5X20

0912050203

Unavailable

88

HH-NUT M12X1,25 6MM HIGH

15133032000

Unavailable

89

* STARTING LEVER

45033070000

Unavailable

92

STUD BOLT M6X33-11/16

16030057000

Unavailable

93

HEX.NUT M6, 25MM HIGH

54007062000

Unavailable

94

ANTIVIBRATION RUBBER

36330056000

Unavailable

95

GASKET

49130454000

Unavailable

96

* REED VALVE HOUSING

16030051000

Unavailable

97

SPRING RING DIN0127-B 6

0127060003

Unavailable

98

* RUBBER FOR FLYWHEEL

45030095000

Unavailable

99

GASKET SET SEAL RINGS

45030099100

Unavailable

99

SET OF GASKETS

45030099500

Unavailable
