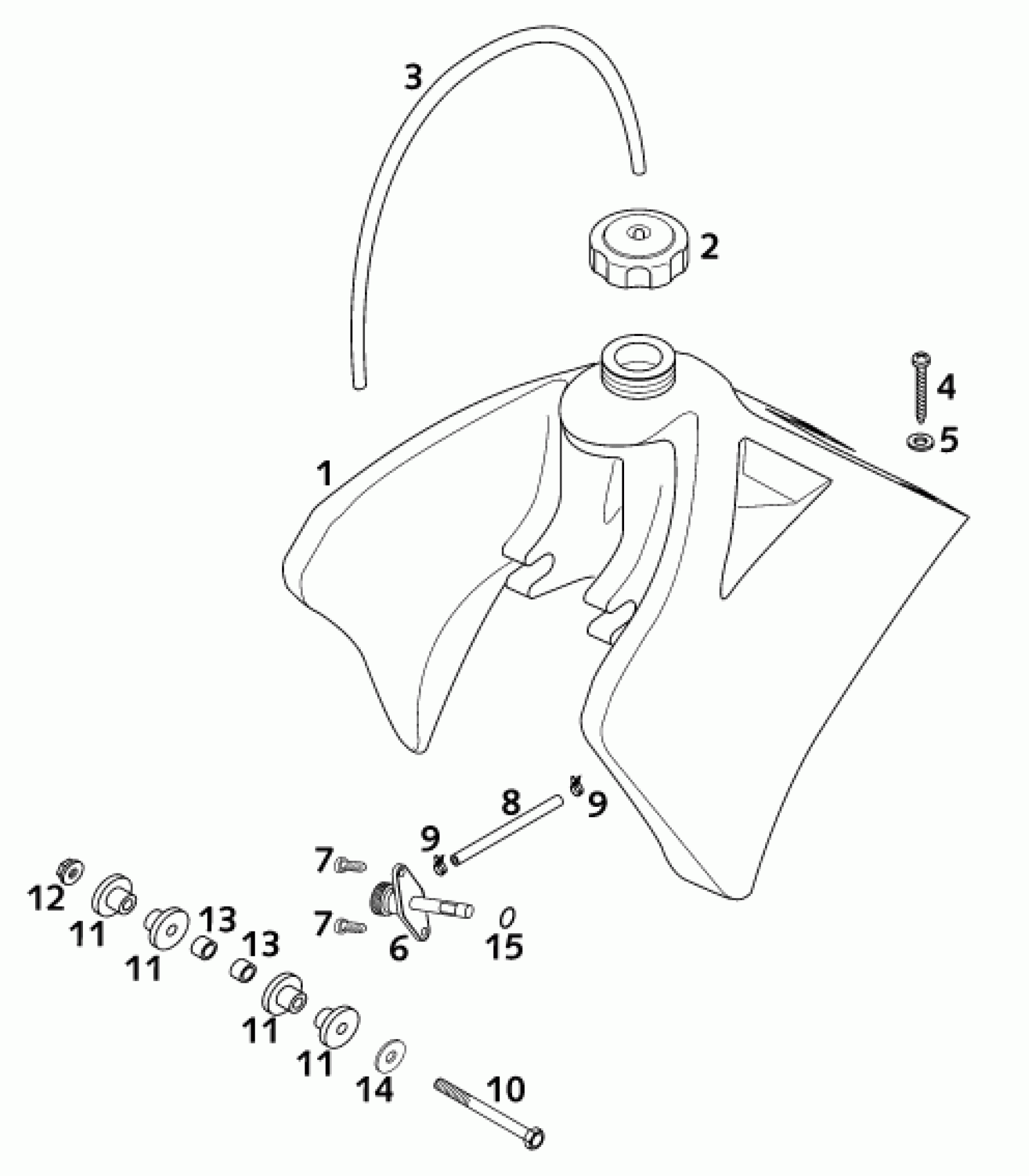

KTM 50 SX SENIOR 2001 TANK, SEAT Diagram

#

Description
Price

1

* FUEL TANK CPL. 50 SXR '98

4500701300004

Unavailable

2

FILLER CAP CPL. SMALL

49007008044

Unavailable

3

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

4

SHEET MET.SCR.DIN7981- 5,5X39

0981550393

Unavailable

5

washer DIN 9021 A - 5.3

0021050003

Unavailable

6

FUEL COCK CPL. SM. RALLYE'96

58507003000

Unavailable

7

SPECIAL SCREW Z 5X16

0016050153

Unavailable

8

FUEL HOSE VITON 6X1,5 PER/M

58307016001

Unavailable

9

YDNAC-CLAMP FUEL HOSE (8MM)

45031005000

Unavailable

10

HH SCREW DIN0931-M 6X100

0931061003

Unavailable

11

BUSHING

54635036000

Unavailable

12

Self locking nut M6 - 10

56509064100

Unavailable

13

SPACER BUSHING 7X10X7,5

50208020000

Unavailable

14

Washer DIN9021-A 6.4

0021060003

Unavailable

15

O-RING 11X1,8 NBR 70

55007006200

Unavailable
