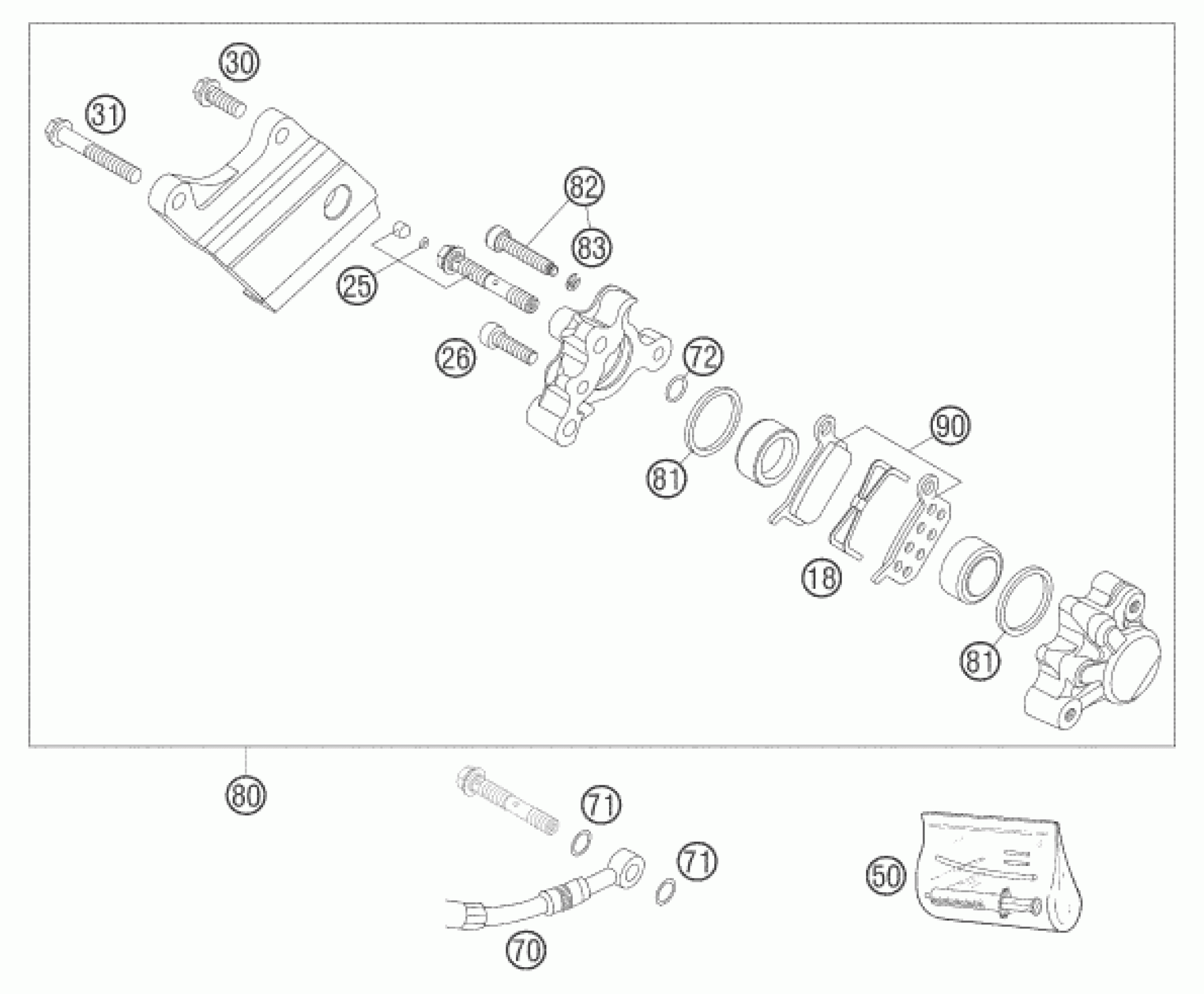

KTM 50 SX PRO SENIOR LC 2005 REAR BRAKE CALIPER Diagram

#

Description
Price

18

RETAINING SPRING 50 LC

45113018000

Unavailable

25

HOLLOW SCREW CPL.

46113225000

Unavailable

26

AH collar screw DIN 912 M5x16

0912050163

Unavailable

30

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

31

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

50

BLEEDER INJECTION-SET 50-65

45119050000

Unavailable

70

BRAKE HOSE REAR 50 LC 04

45113170000

Unavailable

71

O-ring 6.00X1.00 FORMULA

0770060019

Unavailable

72

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable

80

BRAKE CALIPER REAR CPL.50LC 04

45113080000

Unavailable

81

O-RING 22X2X2 EPDM

0770022020

Unavailable

82

AH SCREW + CIRCLIP 50/65 04

45113225000

Unavailable

83

TAB WASHER DIN6799 RS2,5

0799025000

Unavailable

90

BRAKE PAD SET 50 LC 2002

45113030000

Unavailable
