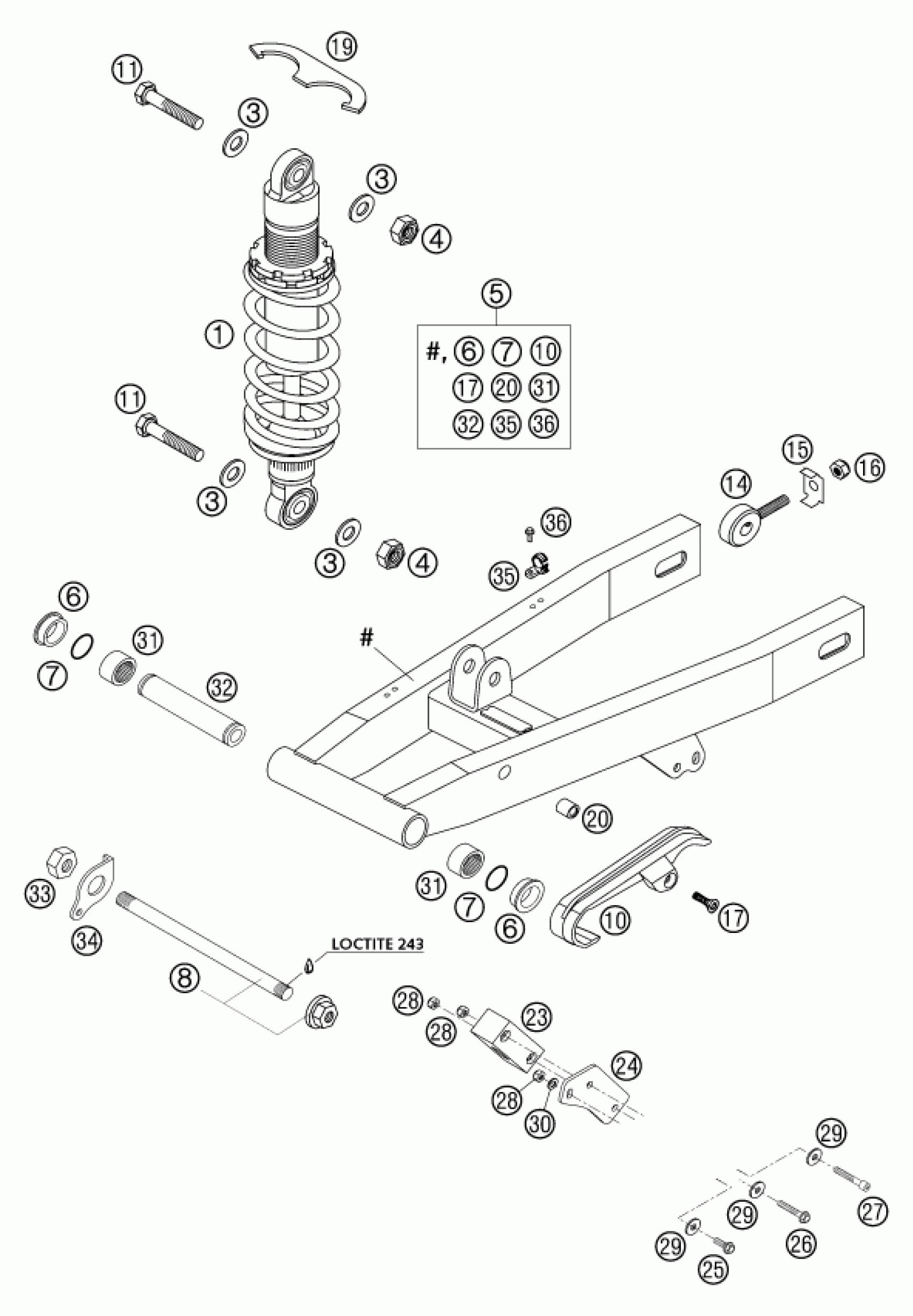

KTM 50 SX PRO SENIOR LC 2004 SWING ARM Diagram

#

Description
Price

1

MONOSHOCK 3612 BAEM 04

0318Y917

Unavailable

3

washer DIN 125 A 10.5

0125100003

Unavailable

4

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

Unavailable

5

SWINGARM CPL. SEN 2004

45104030444

Unavailable

6

Spacer bushing 20X26X30X9.7

46004030070

Unavailable

7

O-ring 16x2 Viton 75

0770160021

Unavailable

8

SWING ARM BOLT CPL. 2004

45103014144

Unavailable

10

CHAIN SLID. GUARD FRO. MINI 02

45104066000

Unavailable

11

HH SCREW DIN0931-M10X45

0931100453

Unavailable

14

CHAIN ADJUSTER

45010083000

Unavailable

15

SUPPORTING BRACKET

45010083060

Unavailable

16

SELF LOCKING NUT DIN0985-M 8

0985080003

Unavailable

17

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

19

HOOK WRENCH 50 SXR

45004010090

Unavailable

20

BLIND RIVET THREAD M6 STE. 4MM

55003139900

Unavailable

23

CHAIN GUIDE REAR

45004070000

Unavailable

24

BRACKET FOR CHAIN GUARD 02

45104170000

Unavailable

25

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

26

HH COLLAR SCREW M 5X30 WS=8

0015050303

Unavailable

27

AH SCREW DIN912 M5X35

0912050353

Unavailable

28

Self locking nut DIN 985 M5

0985050003

Unavailable

29

washer DIN 9021 A - 5.3

0021050003

Unavailable

30

WASHER DIN0125-A 5,3

0125050003

Unavailable

31

Needle bushing HK 2016 / 20x26

54603097000

Unavailable

32

BEARING SLEEVE

45104032000

Unavailable

33

Nut M12x1 h10 WAF19 DIN 934

0934120103

Unavailable

34

BRACKET FOR SPRING

45113053000

Unavailable

35

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

Unavailable

36

SPECIAL SCREW M 5,0X10

0009050103

Unavailable
