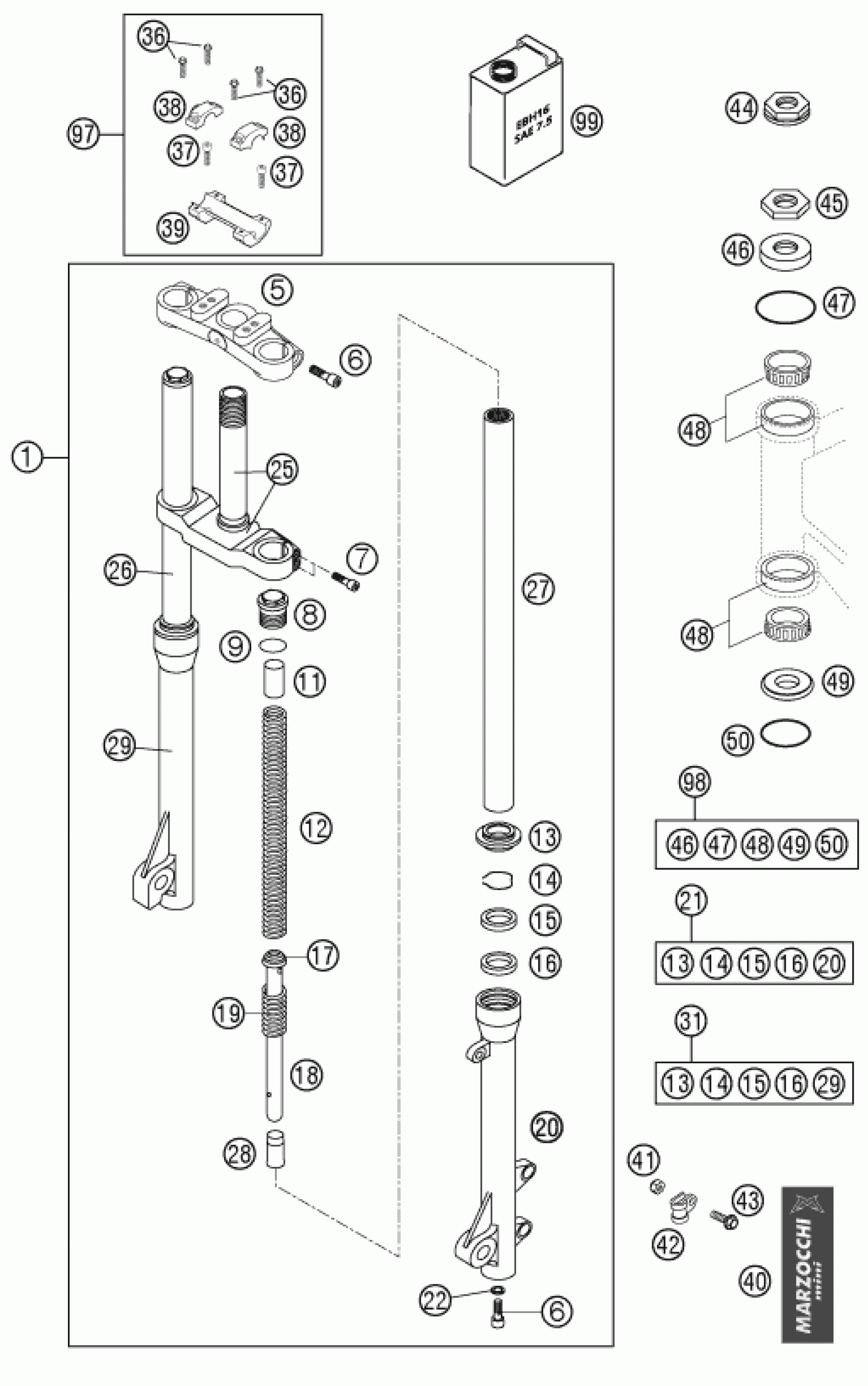

KTM 50 SX PRO SENIOR LC 2004 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK CPL. SX SEN. MARZ. 2003

45101000644

Unavailable

5

TOP FORK PLATE 50 LC SEN. 03

7501498A

Unavailable

6

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

7

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

8

PLUG CAP

7504212AC

Unavailable

9

O-RING

7528010

Unavailable

11

PRE LOAD BUSH 25X2,5X100

7518076

$1.75

12

SPRING 2N/MM

75141169

Unavailable

12

SPRING 2,5N/MM

75141214

Unavailable

13

DUST SEAL

7533297

Unavailable

14

STOP RING

7523264

Unavailable

15

OIL SEAL 32/42/6,5-9,5

7528230

Unavailable

16

WASHER D42X32,5X1,5

7522166AA

Unavailable

17

PISTON RING D32

7524157

Unavailable

18

PISTON ROD REBOUND SEN. 01

78031047

Unavailable

18

PISTON ROD COMPRESSION SEN. 01

78031045

Unavailable

19

REBOUND SPRING

75141015

Unavailable

20

SLIDER L/S 50 LC 2002

75031570A

Unavailable

21

SLIDER CPL. L/S 50LC 2002

75031570A/R

Unavailable

22

WASHER 14X8X1,5

7522225

Unavailable

25

BOT.FORK PLATE CPL. SEN. 03

77051140

Unavailable

26

FORK TUBE R/S SENIOR 02

7708249/R

Unavailable

27

FORK TUBE L/S SENIOR 02

7708250/R

Unavailable

28

FOOT BUFFER

7512068

$1.64

29

SLIDER R/S 50 LC 2002

75031571A

Unavailable

31

SLIDER CPL. R/S 50LC 2002

75031571A/R

Unavailable

36

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

37

AH SCREW DIN6912-M10X25,10.9

0912100250

Unavailable

38

HANDLEBAR CLAMP D=22MM 2001

50301038000

Unavailable

39

HANDLEBAR SUPPORT D=22MM 2001

45101039000

Unavailable

40

STICKER LEFT SIDE MARZOCCHI

7547325

Unavailable

40

STICKER RIGHT SIDE MARZOCCHI

7547331

Unavailable

41

Self locking nut DIN 985 M5

0985050003

Unavailable

42

BRAKE CABLE CLAMP RSGU 9/12

45001070000

Unavailable

43

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

44

HH NUT M20X1,5 WS=27 RIGHT

59030029000

Unavailable

45

STEERING HEAD NUT M20X1,5

46001043000

Unavailable

46

COVERING CAP

49001086000

Unavailable

47

O-ring 40.94X2.62 NBR70

0770021300

Unavailable

48

TAPERED ROLLER BEARING 32004X

49001081000

Unavailable

49

PROTECTION RING 20,1X39X5

46001086000

Unavailable

50

O-RING 36,00X3,00 NBR

0770360030

Unavailable

99

FORKOIL EBH16 SAE 7.5

7550013

Unavailable

98

STEARING HEAD REP. KIT MINI

00050000931

Unavailable

97

HANDLEBAR SUPPORT KIT 50 SX

00050000924

Unavailable
