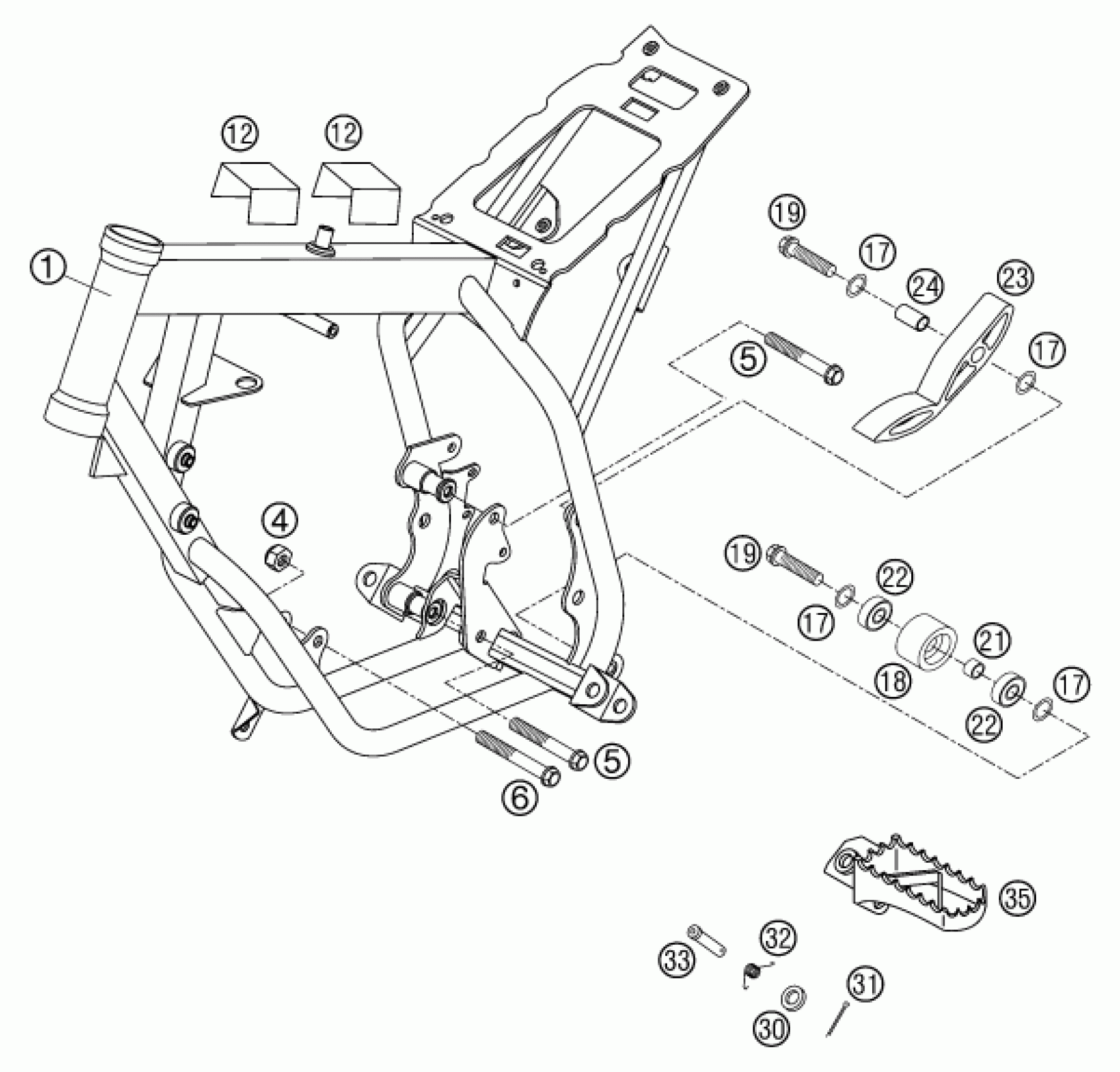

KTM 50 SX PRO SENIOR LC 2004 FRAME Diagram

#

Description
Price

1

FRAME PRO SENIOR ''MC4R'' 04

45103001600

Unavailable

4

Self locking nut M8 10.9

54310086200

Unavailable

5

HH COLLAR SCREW M 8X60 WS=10

0015080603

Unavailable

6

HH COLLAR SCREW M 8X65 WS=10

0015080653

Unavailable

12

METAMOLL FOR BATTERY BRACKET

58711054050

Unavailable

17

LOCK WASHER 8MM

36003014000

Unavailable

18

CHAIN ROLL D=30MM

50203053000

Unavailable

19

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

21

BUSHING 8.2 X 12 X 6

74003021000

Unavailable

22

Grooved ball bearing 608 2RS C

0625006087

Unavailable

23

CHAIN SLIDING PIECE BELOW '97

51103053000

Unavailable

24

BUSHING 8,2X10X20

51103053051

Unavailable

30

washer DIN 125 A 10.5

0125100003

Unavailable

31

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

32

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

33

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

35

FOOT REST L/S SILVER

5460304000090

Unavailable

35

FOOT REST R/S SILVER '98

5460314000090

Unavailable
