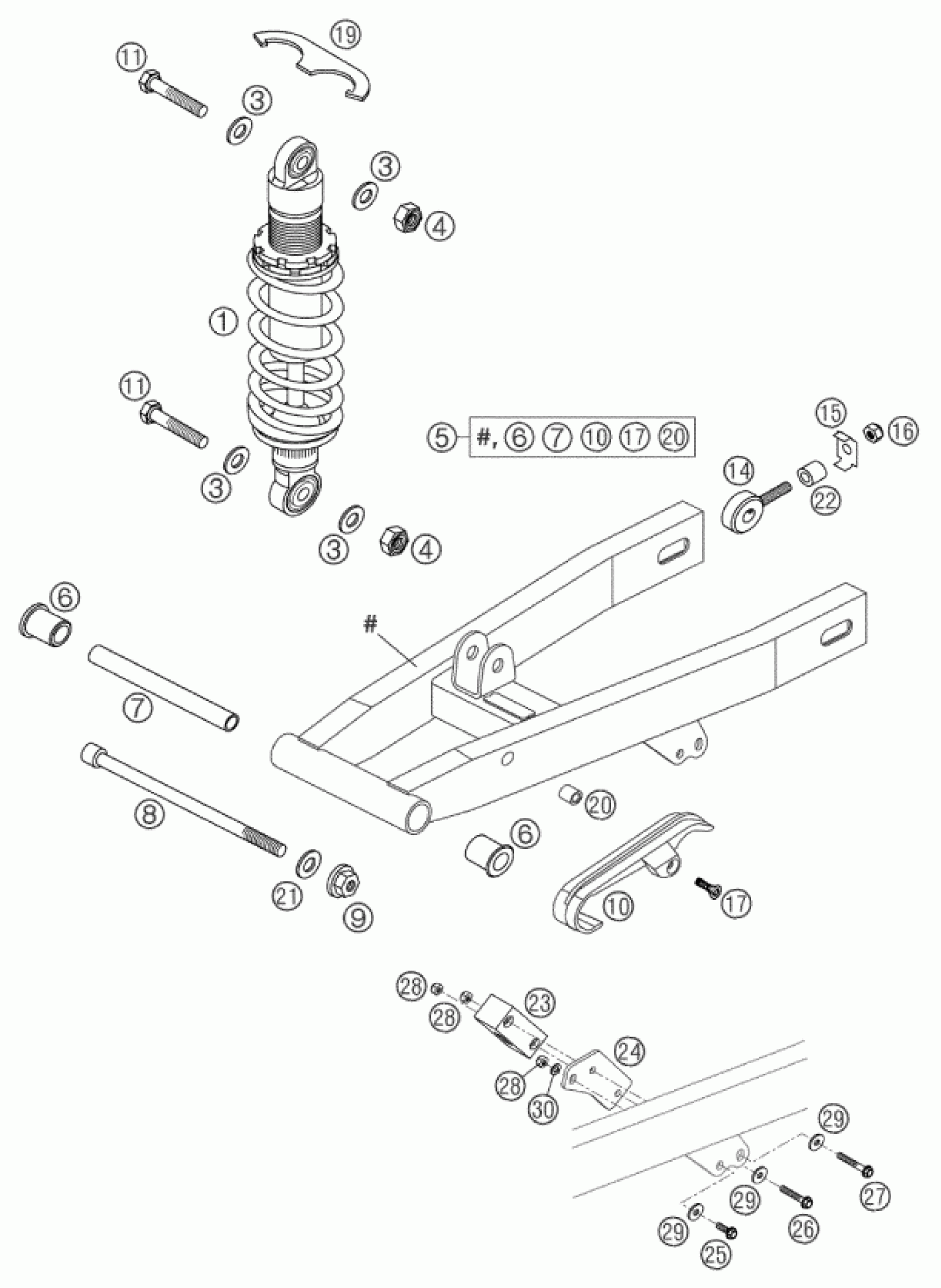

KTM 50 SX PRO SENIOR LC 2003 SWING ARM Diagram

#

Description
Price

1

MONOSHOCK 3612 BAEM 03

0318X915

Unavailable

3

washer DIN 125 A 10.5

0125100003

Unavailable

4

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

Unavailable

5

SWINGARM CPL. SEN. ADV.+LC 02

45104030144

Unavailable

6

BUSHING BOX L=30 MM

45004031000

Unavailable

7

SPACING TUBE 10X13X140 MM

45004039000

Unavailable

8

SWING ARM BOLT M10X158,5 02

45103014000

Unavailable

9

flanged hex nut DIN 6927 M10 W

49009082000

Unavailable

10

CHAIN SLID. GUARD FRO. MINI 02

45104066000

Unavailable

11

HH SCREW DIN0931-M10X45

0931100453

Unavailable

14

CHAIN ADJUSTER

45010083000

Unavailable

15

SUPPORTING BRACKET

45010083060

Unavailable

16

SELF LOCKING NUT DIN0985-M 8

0985080003

Unavailable

17

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

19

HOOK WRENCH 50 SXR

45004010090

Unavailable

20

BLIND RIVET THREAD M6 STE. 4MM

55003139900

Unavailable

21

WASHER 10,5 X 21 X 3

31004001100

Unavailable

22

BUSHING 8,2 X 12 X 10

57103225000

Unavailable

23

CHAIN GUIDE REAR

45004070000

Unavailable

24

BRACKET FOR CHAIN GUARD 2002

45104070001

Unavailable

25

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

26

HH COLLAR SCREW M 5X30 WS=8

0015050303

Unavailable

27

HH COLLAR SCREW M 5X35 WS=8

0015050353

Unavailable

28

Self locking nut DIN 985 M5

0985050003

Unavailable

29

washer DIN 9021 A - 5.3

0021050003

Unavailable

30

WASHER DIN0125-A 5,3

0125050003

Unavailable
