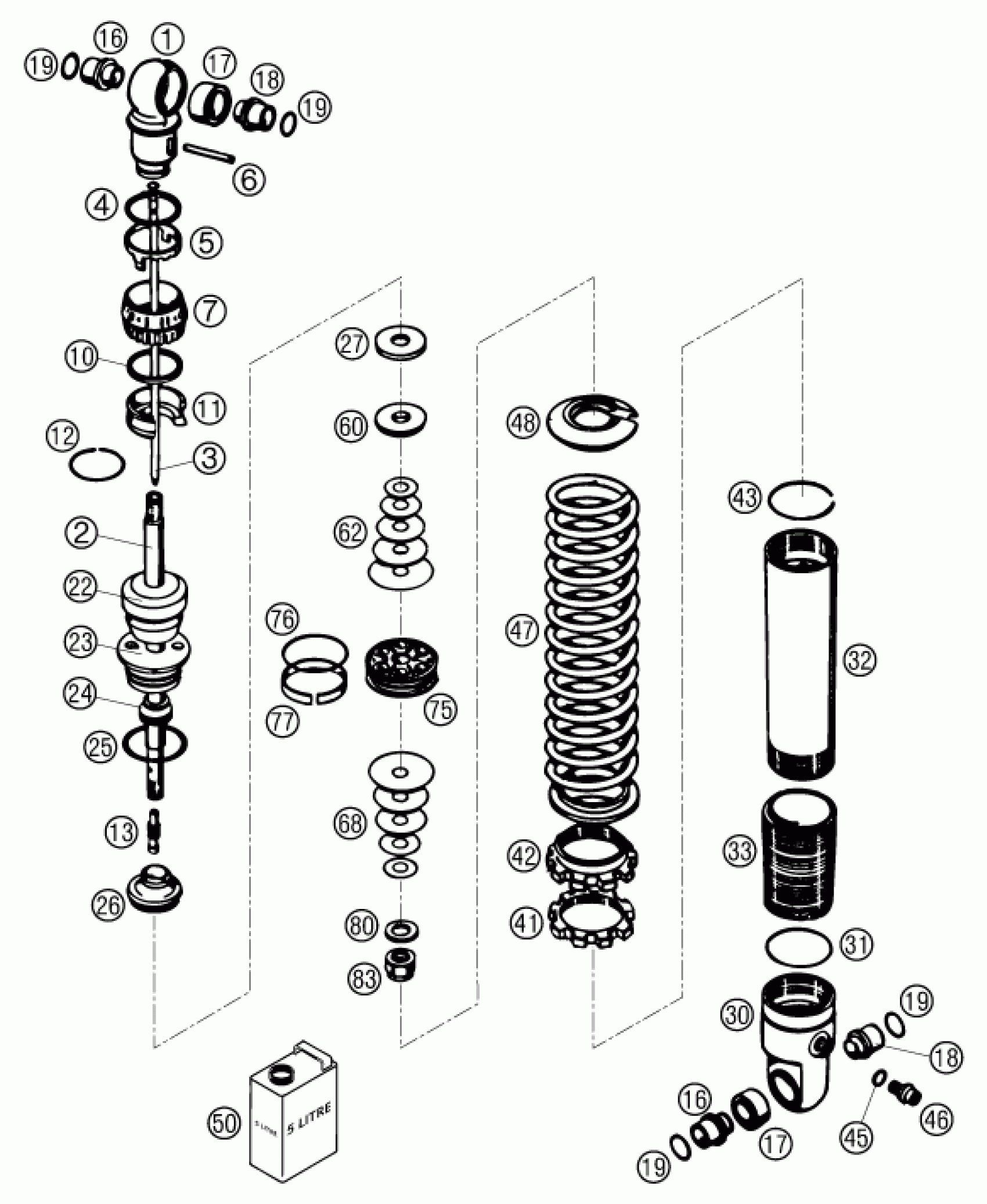

KTM 50 SX PRO SENIOR LC 2003 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

SHOCK ABS. BOTTOM L=46

46811525

Unavailable

2

PISTON ROD D=14, L=96

36120576

Unavailable

3

NEEDLE CPL. D=4, L=112

46811391S

Unavailable

4

O-RING 36X0,5

46811222

Unavailable

5

WASHER

46811263

Unavailable

6

PIN 4X35

46811261

Unavailable

7

ADJ. KNOB D=41

46811262

Unavailable

10

Shaft seal 29x35x3

46811221

Unavailable

11

INTERMEDIATO RING H=4

46811367

Unavailable

12

CIRCLIP 22X1,2

46811268

Unavailable

13

NEEDLE SEAT 5X17,25

46811259

Unavailable

16

ADAPTOR BUSH KGW 10X22

46811077

Unavailable

17

Ball joint bearing 15x25x13

46811027

Unavailable

18

ADAPTOR BUSH KGW 10X22

46811077

Unavailable

19

SEAL KGW

46811050

Unavailable

22

Rubber pad 14x34x19

36120427

Unavailable

23

SCREW CAP M37,65

36120651

Unavailable

24

DUST SEAL 1424

46811044

Unavailable

25

O-ring 29,74x3,53 NBR70

36120064

Unavailable

26

ADAPTER CPL. D=36 H=20,5

36120522S1

Unavailable

27

SHIM 28,5X14X2

36120469

Unavailable

30

SHOCK ABSORBER CASE KGW H=38

36120551

Unavailable

31

O-ring 38x2 NBR70

40540037

Unavailable

32

TUBE L=122

36120096

Unavailable

33

Bush M40x1xM44x1,5x70

36120019

Unavailable

41

Lock nut shock M44x1,5

36120015

Unavailable

42

Adjustment nut shock M44x1,5

36120418

Unavailable

43

Round-wire snap ring 38x1,5

40540015

Unavailable

45

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

46

HS lock screw M5x6

36120151

Unavailable

47

SPRING (46,5) 45-130 D=7,75

93010168

Unavailable

47

SPRING (46,5) 50-130 D=8,0

93010169

Unavailable

48

Spring retainer 27x57x2

36120386

Unavailable

50

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

Unavailable

60

REBOUND BUSH H=5,6

36120557

Unavailable

62

SHIM 10X21X0,30

36120350

Unavailable

62

SHIM 10X16X0,2

36120298

Unavailable

62

SHIM 10X23X0,25

36120343

Unavailable

62

SHIM 10X25X0,25

36120344

Unavailable

62

SHIM 10X27X0,25

36120345

Unavailable

62

SHIM 10X29X0,20

36120338

Unavailable

62

SHIM 10X31X0,20

36120339

Unavailable

62

SHIM 10X33X0,20

36120340

Unavailable

68

SHIM 10X16X0,30

36120312

Unavailable

68

SHIM 10X21X0,20

36120334

Unavailable

68

SHIM 10X25X0,20

36120336

Unavailable

68

SHIM 10X23X0,15

36120327

Unavailable

68

Shim 23,25x27x0,30

36120655

Unavailable

68

SHIM 10X25X0,15

36120328

Unavailable

75

PISTON 6+6X5,5/3,5

36120624

Unavailable

76

O-ring 37x,82x1,78 Viton70 gre

46810035

Unavailable

77

Pistonring 33x35x8

36120040

Unavailable

80

Washer 10x22x2,5

36120604

Unavailable

83

PISTON ROD NUT CPL. H=15,2

36120605S

Unavailable
