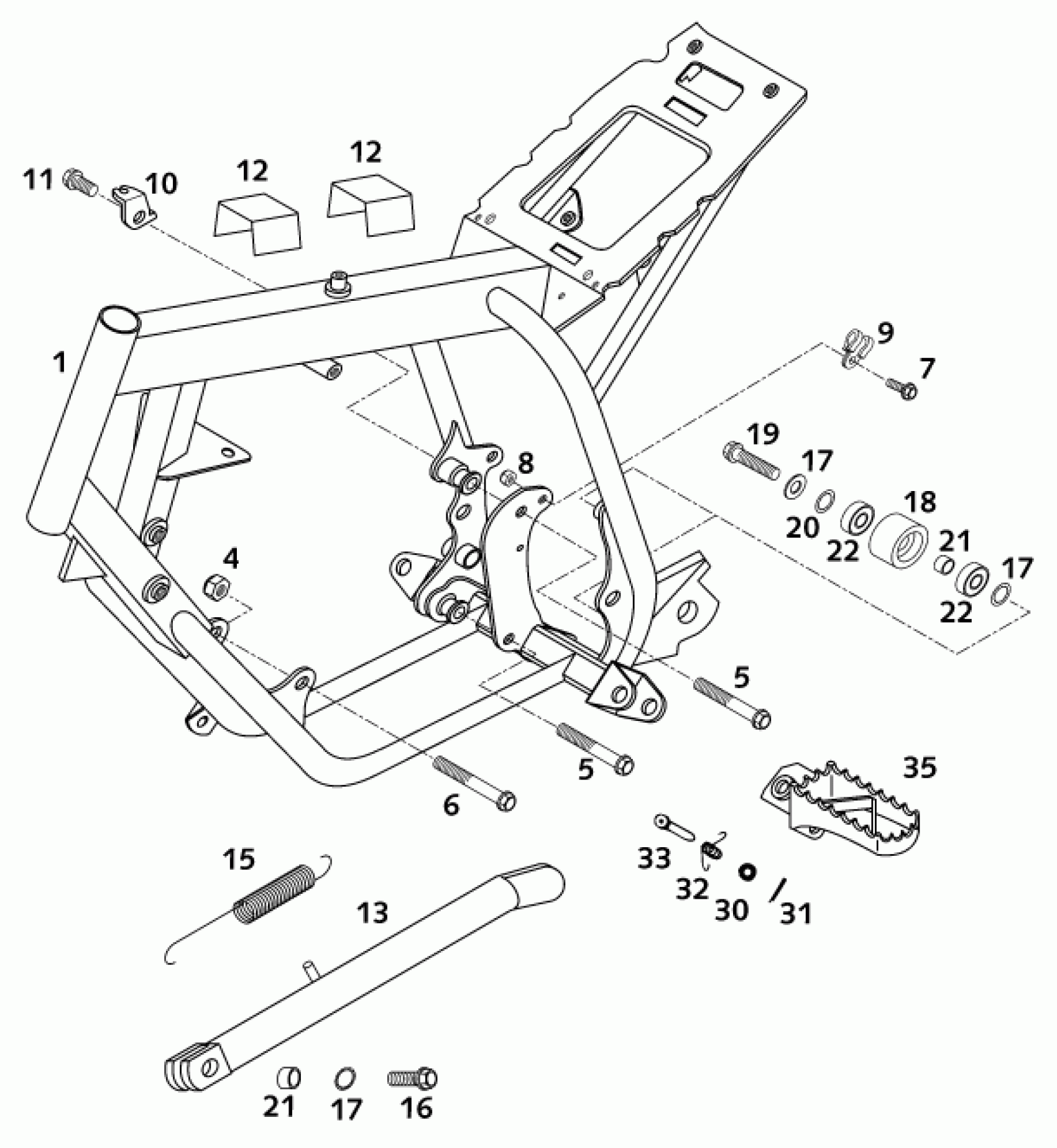

KTM 50 SX PRO SENIOR LC 2001 FRAME Diagram

#

Description
Price

0

FOOT REST R/S SILVER '98

5460314000090

Unavailable

1

* FRAME PRO SEN."LC" (MC1R) 01

45103001100

Unavailable

4

Self locking nut M8 10.9

54310086200

Unavailable

5

HH COLLAR SCREW M8X55 WS=10

0015080553

Unavailable

6

HH COLLAR SCREW M 8X60 WS=10

0015080603

Unavailable

7

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

8

Self locking nut DIN 985 M5

0985050003

Unavailable

9

BRAKE CABLE CLAMP RSGU 9/12

45001070000

Unavailable

10

BRAKE THRUST BEARING MINI 2001

45113052000

Unavailable

11

HH COLLAR SCREW M 8X16 WS=10

0015080163

Unavailable

12

METAMOLL FOR BATTERY BRACKET

58711054050

Unavailable

13

SIDE STAND L=319MM SILVER 2001

4510302300090

Unavailable

15

SIDESTAND SPRING LONG

51003021000

Unavailable

16

HH SCREW DIN0933-M 8X20

0933080203

Unavailable

17

LOCK WASHER 8MM

36003014000

Unavailable

18

CHAIN ROLL D=30MM

50203053000

Unavailable

19

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

20

washer DIN 125 A -8.4

0125080003

Unavailable

21

BUSHING 8.2 X 12 X 6

74003021000

Unavailable

22

Grooved ball bearing 608 2RS C

0625006087

Unavailable

30

washer DIN 125 A -8.4

0125080003

Unavailable

31

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

32

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

33

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

35

FOOT REST L/S SILVER

5460304000090

Unavailable
