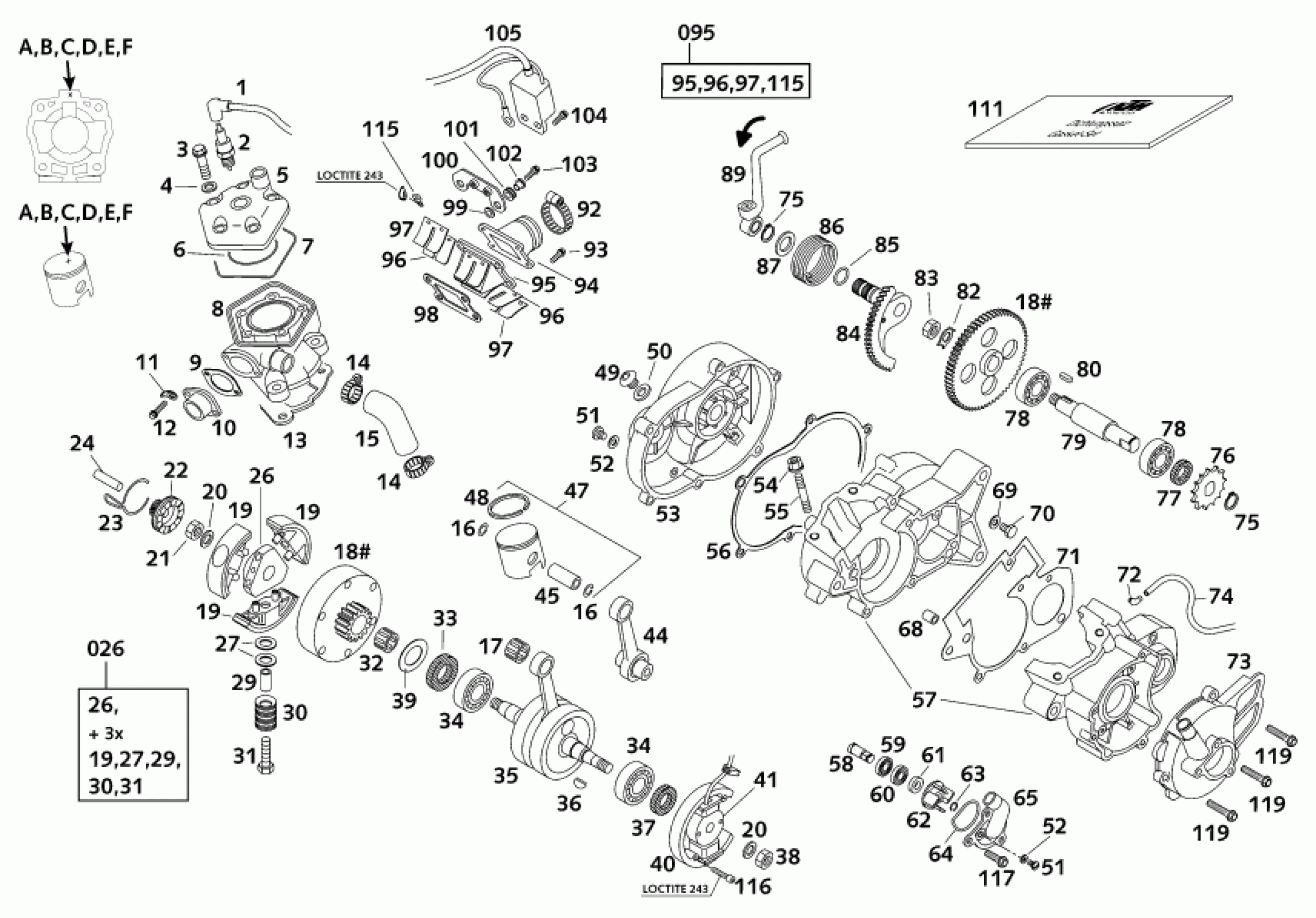

KTM 50 SX PRO SENIOR LC 2001 ENGINE CASE Diagram

#

Description
Price

1

SPARK PLUG CAP NGK LB05EMH

46039090000

Unavailable

2

SPARKING PLUG NGK BR10EG 2001

46039093000

Unavailable

3

CYLINDERHEADSCR.HH-M7X33 2001

46030079000

Unavailable

4

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

Unavailable

5

CYLINDER HEAD 50CCM LC 2001

45130006000

Unavailable

6

O-RING 94,97X1,78

46030037000

Unavailable

7

O-RING 53,7X1,78 VITON

46030036000

Unavailable

8

CYLINDER 39,5MM ''A'' 50 LC 20

45130005000 A

Unavailable

8

CYLINDER 39,5MM ''B'' 50 LC 20

45130005000 B

Unavailable

8

CYLINDER 39,5MM ''C'' 50 LC 20

45130005000 C

Unavailable

8

* CYLINDER 39,5MM "D" 50 LC 20

45130005000 D

Unavailable

8

*CYLINDER 39,5MM "E" 50 LC '01

45130005000 E

Unavailable

8

* CYLINDER 39,5MM "F" 50 LC 20

45130005000 F

Unavailable

9

EXHAUST FLANGE GASKET 50 '01

45105005000

Unavailable

10

EXHAUST FLANGE 50 ''LC'' 20

45105003000

Unavailable

11

RETAINING PLATE

51005074000

Unavailable

12

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

13

CYLINDER BASE GASKET 0,2 MM

46030035020

Unavailable

13

CYLINDER BASE GASKET 0,5 MM

46030035050

Unavailable

14

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

15

PRE-FORM HOSE CYL.-W.COVER

45135027000

Unavailable

16

CIRCLIP 2001

45130074000

Unavailable

17

NEEDLE BEAR.PISTONPIN 12X15X15

45130034000

Unavailable

18

PRIMARY DRIVE 50CCM LC 2001

45132000044

Unavailable

19

CLUTCH BLOCK 50CCM LC 20

45132011000

Unavailable

20

WASHER 10,4X16,8X0,4

45132020000

Unavailable

21

SPECIAL NUT 10X1,25X8

45130029000

Unavailable

22

KICKSTARTER SLEEVE 2001

45133052000

Unavailable

23

KICKSTARTER SLEEVE SPRING 2001

45133056000

Unavailable

24

BEARING BOLT F. KICKST SLEE.01

45133058000

Unavailable

26

CLUTCH CPL. 20

45132002044

Unavailable

27

WASHER 8X15,3X0,5

45132120000

Unavailable

27

WASHER 8X15,3X1

45132120100

Unavailable

29

SPACER 6X8X19

45132004000

Unavailable

30

CLUTCH SPRING 2001

45132005000

Unavailable

31

HH SCREW DIN0933-M 6X25

0933060253

Unavailable

32

NEEDLE BEARING 15X18X17

45132015000

Unavailable

33

OIL SEAL RING 17X35X7

45130077000

Unavailable

34

BALL BEARING 17X40X12

45130082000

Unavailable

35

CRANKSHAFT 50CCM LC 2001

45130018000

Unavailable

36

WOODRUFF KEY 2,5X3,7

45130075000

Unavailable

37

OIL SEAL RING 15X24X7

45130076000

Unavailable

38

SPECIAL NUT M10X1,25X6

45130028000

Unavailable

39

SPACER WASHER 15X25X0,3

45132020030

Unavailable

39

SPACER WASHER 15X25X0,4

45132020040

Unavailable

39

SPACER WASHER 15X25X0,6

45132020060

Unavailable

39

SPACER WASHER 15X25X0,8

45132020080

Unavailable

40

FLYWHEEL STATOR 50CCM LC 2001

45139004000

Unavailable

41

FLYWHEEL ROTOR 50CCM LC 2001

45139005000

Unavailable

44

CON.ROD REPAIRS. 50CCM LC 2001

45130015000

Unavailable

45

PISTON PIN 50CCM LC 2001

45130033000

Unavailable

47

PISTON CPL.39,5 ''AB'' 50 LC

45130007000 A

Unavailable

47

PISTON CPL.39,5 ''B'' 50 LC' 0

45130007000 B

Unavailable

47

PISTON CPL.39,5 ''CD'' 50 LC

45130007000 C

Unavailable

47

PISTON CPL.39,5 ''D'' 50 LC 20

45130007000 D

Unavailable

47

PISTON CPL.39,5 ''EF'' 50 LC

45130007000 E

Unavailable

47

PISTON CPL.39,5 ''F'' 50LC 01

45130007000 F

Unavailable

48

PISTON RING 50CCM LC 2001

45130030000

Unavailable

49

OIL PLUG 50 LC 2001

45130020000

Unavailable

50

GASKET FOR OIL PLUG

45130019000

Unavailable

51

PLUG M6X7

46035061000

Unavailable

52

COPPER GASKET 6X12X2

0603061202

Unavailable

53

CLUTCH COVER 50CCM LC 2001

45130001000

Unavailable

54

flanged nut M8 WS10

46030045000

Unavailable

55

STUD M8X41

46030043000

Unavailable

56

GASKET FOR CLUTCH COVER 2001

45130025000

Unavailable

57

ENGINGE CASE 50CCM LC 2001

45130000044

Unavailable

58

WATER PUMP SHAFT 60/65 '99

46035054000

Unavailable

59

WATER PUMP BEARING 10X19X5

46035057000

Unavailable

60

WA.PU.BEAR. 10X19X5 DOUBLELIP

46035058000

Unavailable

61

SHAFT SEAL RING 10X18X4

46035056100

Unavailable

62

WATER PUMP WHEEL 60/65 '99

46035055100

Unavailable

63

CIRCLIP DIN0471- 9X1

0471090010

Unavailable

64

O-RING

46035053000

Unavailable

65

WATER PUMP COVER 60/65 '98

46035052000

Unavailable

68

DOWEL 7X9X10

45130023000

Unavailable

69

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

70

OIL DRAIN PLUG M10 WS=14

46030021000

Unavailable

71

ENGINE CASE GASKET 50 LC 2001

45130039000

Unavailable

72

ANGLE PIECE 50CCM LC 2001

45130022000

Unavailable

73

IGNITION COVER 50CCM LC 2001

45130002000

Unavailable

74

PVC-HOSE 3X5MM

52031137001

Unavailable

75

CIRCLIP DIN0471-15X1

0471150010

Unavailable

76

SPROCKET 9-T 50 LC 2001

45133029009

Unavailable

76

SPROCKET 10-T 50 LC 2001

45133029010

Unavailable

76

SPROCKET 11-T 50 LC 2001

45133029011

Unavailable

76

SPROCKET 12-T 50 LC 2001

45133029012

Unavailable

76

SPROCKET 13-T 50 LC 2001

45133029013

Unavailable

77

OIL SEAL RING 15X24X5

45133031000

Unavailable

78

BALL BEARING 15X35X11

45133028000

Unavailable

79

COUNTER SHAFT 50CCM LC 2001

45133002000

Unavailable

80

WOODRUFF KEY 5X5X12

45133024000

Unavailable

82

LOCKING PLATE D=14MM

46030078000

Unavailable

83

HH NUT 14X1,25X7 WS=22

46030029000

Unavailable

84

KICKSTARTER SHAFT 50 LC 2001

45133050000

Unavailable

85

O-RING 12,5X1,5

45133057000

Unavailable

86

KICKSTARTER SPRING 2001

45133054000

Unavailable

87

WASHER 16X25X1

45133059000

Unavailable

89

KICKSTARTER 50CCM LC 2001

45133070000

Unavailable

92

Hose clamp 25-40 SGT 4

10001120000

Unavailable

93

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

94

INLET MANIFOLD 50CCM LC 2001

45130050000

Unavailable

95

MEMBRANE HOUSING CPL.50LC 20

45130051044

Unavailable

96

MEMBRANE LOOSE 60/65 CCM

46030052000

Unavailable

98

INTAKE VALVE GASKET

46030049000

Unavailable

99

WASHER DIN0125-A 6,4

0125060003

Unavailable

100

BRACKET IGNITI. COIL 50LC 2001

45139028000

Unavailable

101

rubber grommet D=8mm open

31008060000

Unavailable

102

COLLAR BUSHING 6,3X8X7,5

45139128000

Unavailable

103

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

104

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

105

IGNITION COIL 50CCM LC 2001

45139006000

Unavailable

111

GASKET SET CPL. 50 LC 2001

45130099000

Unavailable

115

FLAT HEAD SCREW DIN7985-M 3X6

0985030063

Unavailable

116

AH SCREW DIN0912-M 5X25

0912050253

Unavailable

117

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

118

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

119

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

120

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

121

AH SCREW DIN0912-M 6X40 A2

0912060404

Unavailable

122

HH COLLAR SCREW M 8X60 WS=10

0015080603

Unavailable
