- 50 SX PRO SENIOR <1998>
CARBURETOR

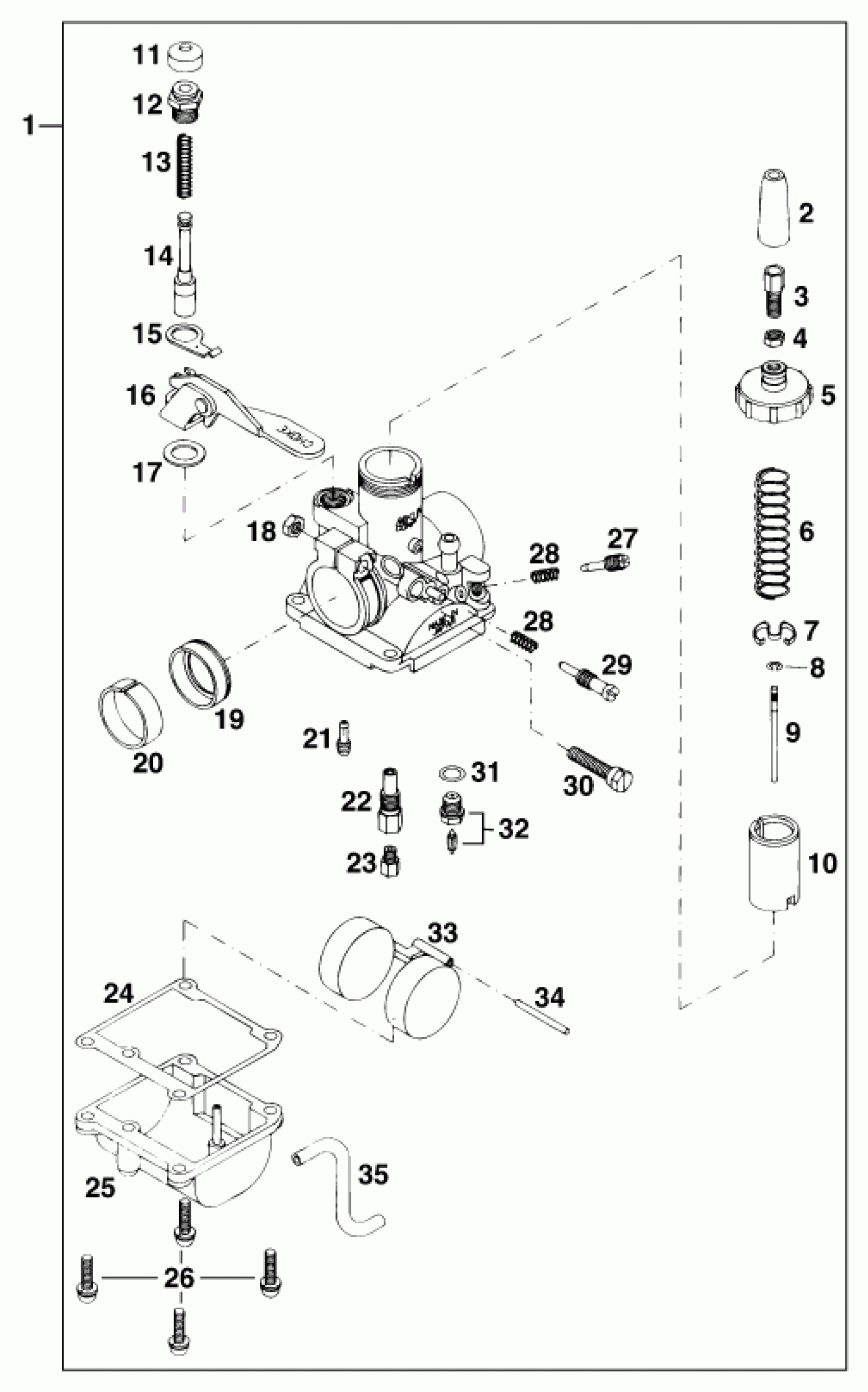

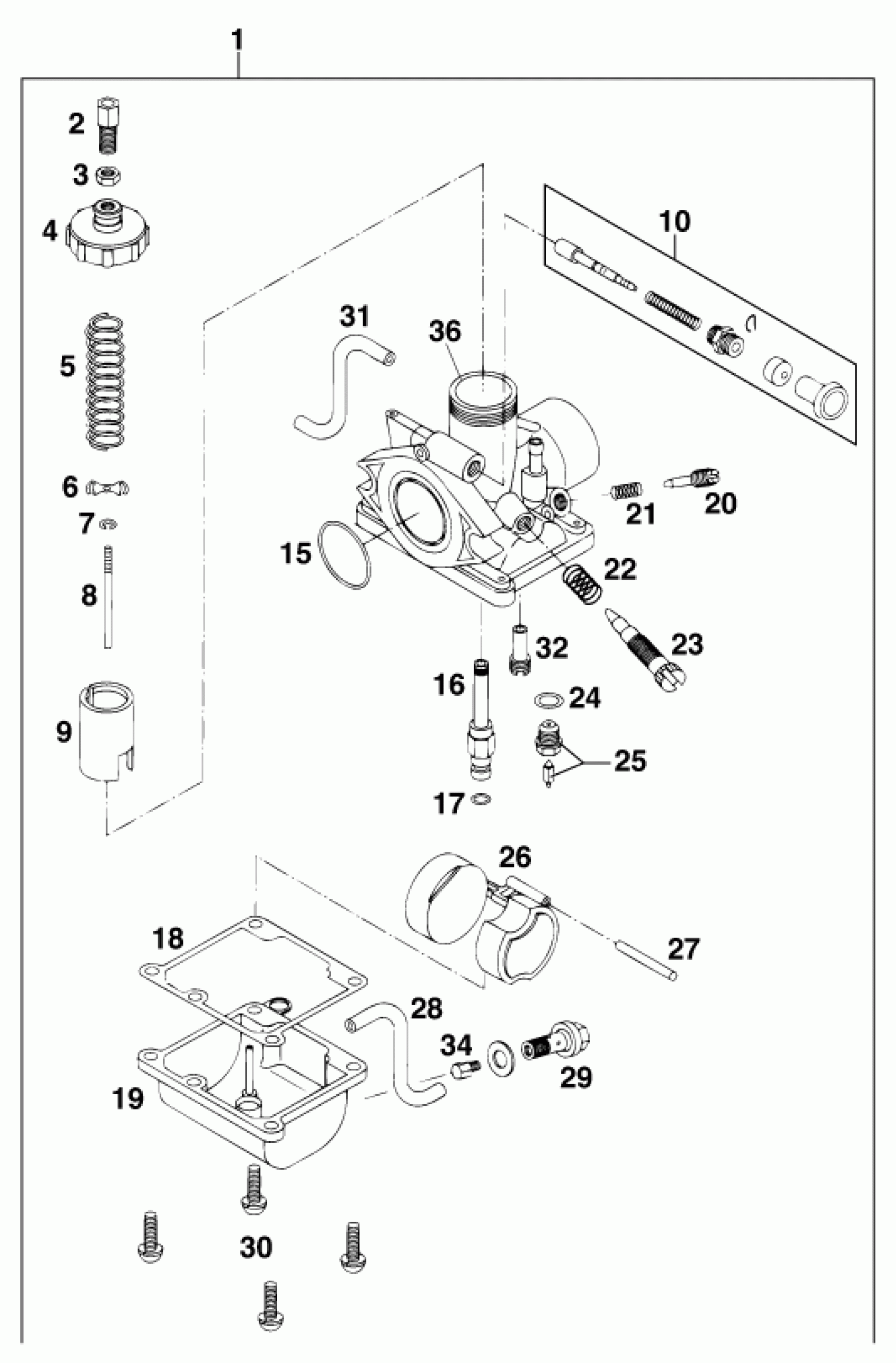

KTM 50 SX PRO SENIOR <1998> CARBURETOR Diagram
#
1
CARBURETOR MIKUNI VM20-352
45031001144
Unavailable
2
ADJUSTMENT SCREW M6X0,75
57031525000
Unavailable
3
HEXAGON NUT M 6X0,75 DIN0439
52031126000
Unavailable
4
CARBURETOR COVER VM20-352
45031027100
Unavailable
5
THROTTLE VALVE SPRING VM20-352
45031030100
Unavailable
6
RETAINING SPRING VM20-352 MIK.
45031009100
Unavailable
7
SPRING
45031045000
Unavailable
8
JET NEEDLE 4J13 MIKUNI
45031034100
Unavailable
9
*THROTTLE VALVE 23MM MIK. NO.2
45031035100
Unavailable
10
STARTER KNOB CPL. VM20
45031048144
Unavailable
15
O-RING 24X2 MIKUNI
45031039100
Unavailable
16
NEEDLE JET 0-6 VM20-352 MIKUNI
45031021100
Unavailable
17
O-RING 3X2 MIKUNI
45031044000
Unavailable
18
GASKET FLOAT BOWL
45031010100
Unavailable
19
FLOAT BOWL VM20-352
45031011100
Unavailable
20
AIR REG. SCREW
45031017000
Unavailable
21
SPRING
45031015000
Unavailable
22
SPRING MIKUNI
45031015100
Unavailable
23
IDLE ADJ. SCREW VM20
45031019100
Unavailable
24
SEAL RING
45031018000
Unavailable
25
NEEDLE VALVE
45031020000
Unavailable
26
FLOAT VM20-352 MIKUNI
45031006100
Unavailable
27
PIN 2,5X27
45031008000
Unavailable
28
PVC-HOSE 3X5MM
52031137001
Unavailable
29
* MAIN JET HOLDER M10X1
45031014100
Unavailable
30
LENTIL HEAD SCREW M4X14 (SET)
45031014000
Unavailable
31
PVC-HOSE 3X5MM
52031137001
Unavailable
32
IDLING JET VM20-352 MIKUNI
45031007100
Unavailable
34
MAIN JET 160 MIKUNI
45031023160
Unavailable
34
MAIN JET 165 MIKUNI
45031023165
Unavailable
34
MAIN JET 170 MIKUNI
45031023170
Unavailable
34
MAIN JET 175 MIKUNI
45031023175
Unavailable
34
MAIN JET 180 MIKUNI
45031023180
Unavailable
36
* WASHER RUBBER 16X27
45031028000
Unavailable
