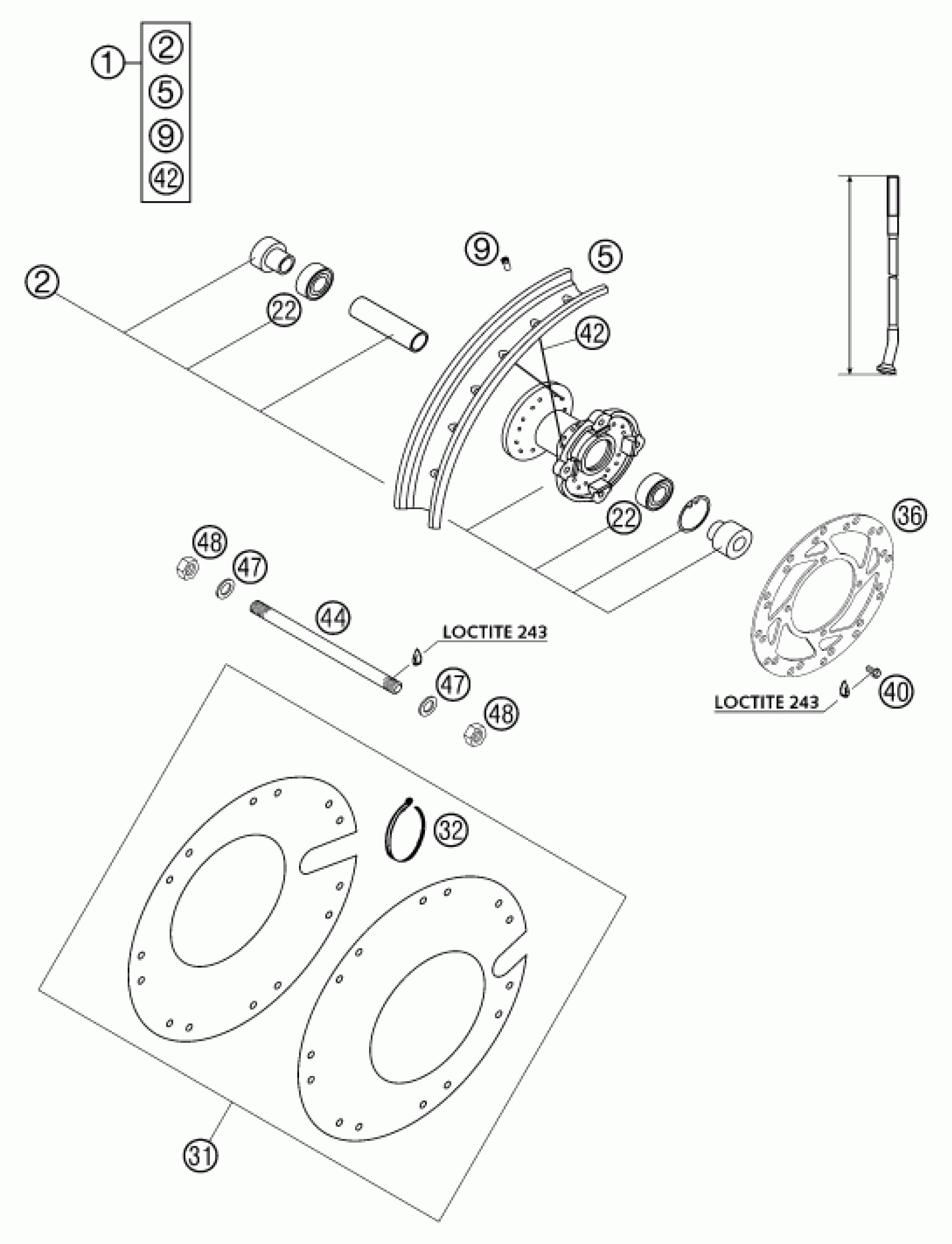

KTM 50 SX PRO JUNIOR LC 2002 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL-SP CPL.1,6X10'' AL

45109001144

Unavailable

2

FRONT WHEEL HUB CPL. 2002

45109010044

Unavailable

5

RIM 1,6X10'' ALUMINIUM

45109001001

Unavailable

9

SPOKE NIPPLE 3MM

45109072000

Unavailable

22

BALL BEARING 6202 2RS1 C3

0625062027

Unavailable

31

WHEEL COVER CPL. 50 SXR

45010092000

Unavailable

32

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

36

BRAKE DISC FRONT JUN/SEN 02

45109060000

Unavailable

40

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

42

SPOKE 3X100X6MM-110°

45109071102

Unavailable

44

AXLE 207MM M12X1

46010085000

Unavailable

47

FLAT WASHER DIN0125-A13

0125120003

Unavailable

48

Nut M12x1 h10 WAF19 DIN 934

0934120103

Unavailable
