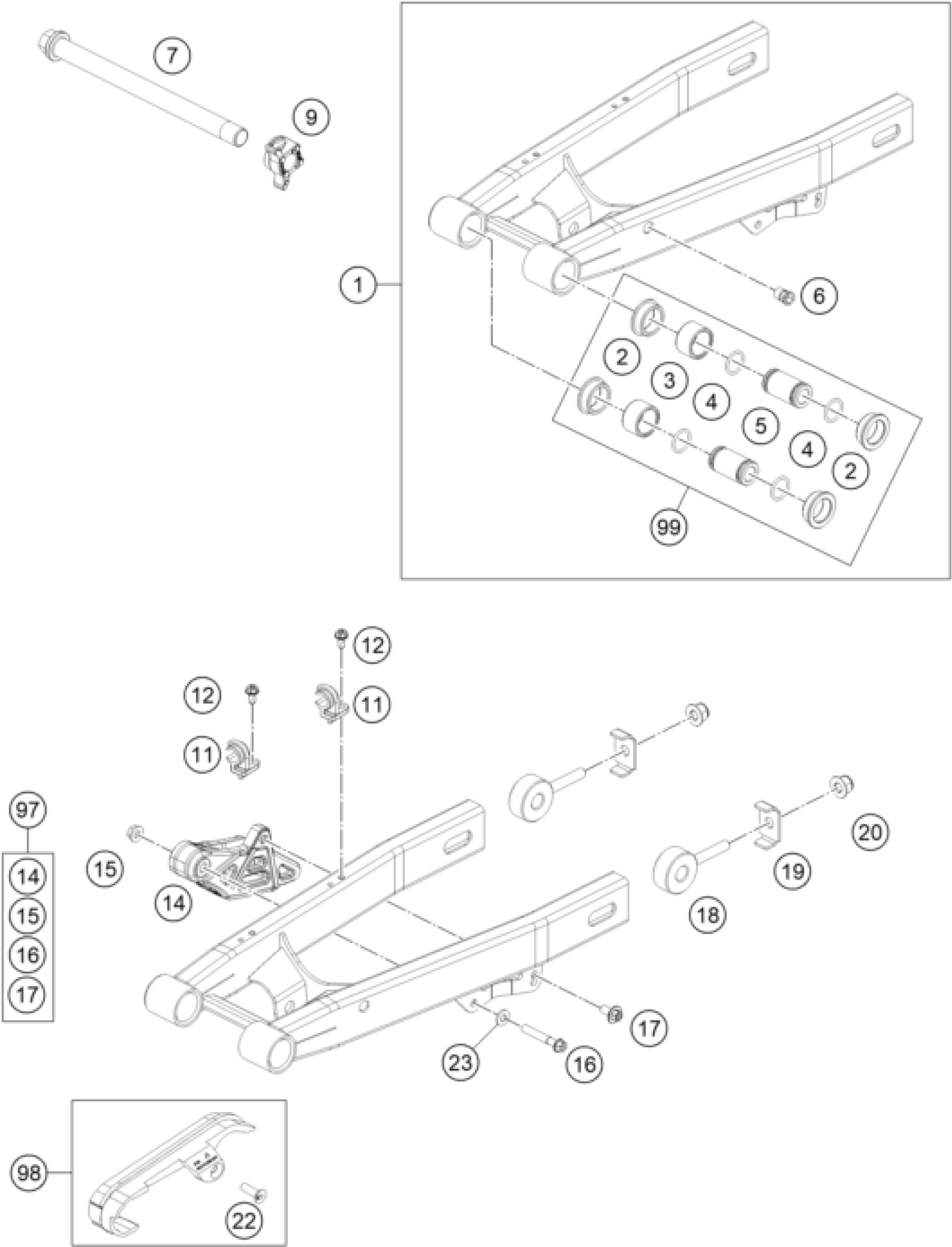

KTM 50 SX Mini 2020 SWING ARM Diagram

#

Description
Price

1

SWING ARM CPL. 50 SX MINI 16

4530403014491

Unavailable

2

Spacer bushing 20X26X30X9.7

46004030070

Unavailable

3

Needle bushing HK 2016 / 20x26

54603097000

Unavailable

4

O-ring 16x2 Viton 75

0770160021

Unavailable

5

Bearing bush 12x20x36.5

46004030071

Unavailable

6

BLIND RIVET THREAD M6 STE. 4MM

55003139900

Unavailable

7

Swingarm pivot

45404037000

Unavailable

9

Nut with anti-rotation lock

45404038000

Unavailable

11

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

Unavailable

12

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

14

CHAIN GUIDE

46304070000

Unavailable

15

Self locking nut M6 - 10

56509064100

Unavailable

16

HH collar screw M6x40 TX30

0025060406

Unavailable

17

HH collar screw M6x13 TX30

0024060136

Unavailable

18

CHAIN ADJUSTER

45010083000

Unavailable

19

SUPPORTING BRACKET

45010083060

Unavailable

20

STOP NUT DIN6926 M8 SS

0926080003

Unavailable

22

Flat head screw DIN7991 M6X20

0991060202

Unavailable

23

WASHER DIN0125-A 6,4

0125060003

Unavailable

97

CHAIN GUIDE KIT MINI

46304070044

Unavailable

98

CHAIN GUARD KIT 50 SX

45204066010

Unavailable

99

SWINGARM REP. KIT 50/65 SX

45204230010

Unavailable
