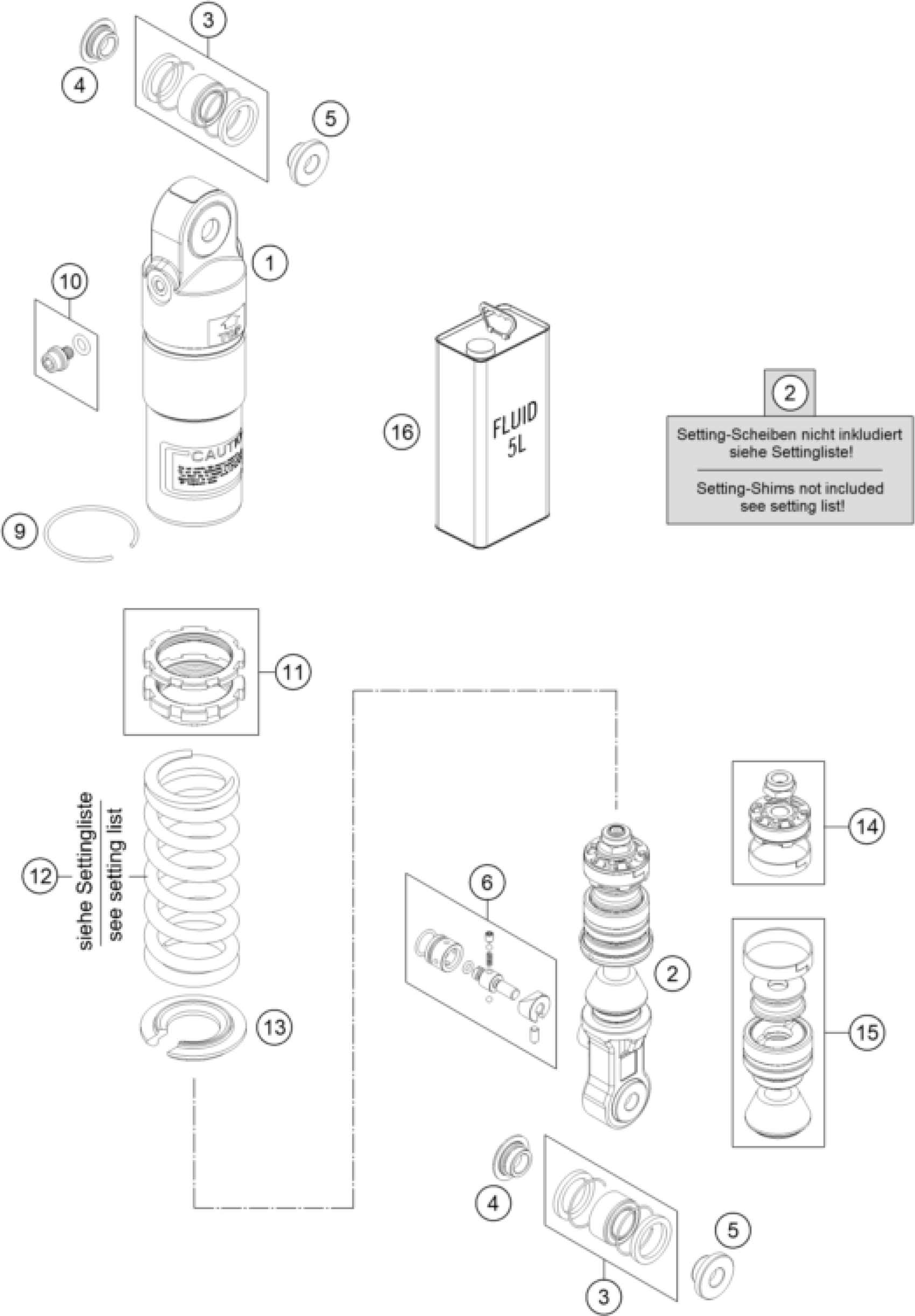

KTM 50 SX Mini 2018 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

MONOSHOCK UPPER PART CPL.WHITE

36120861S1

Unavailable

2

MONOSHOCK LOW.PART CPL.SX MINI

36120781S15

Unavailable

3

Ball joint bearing kit top 12m

R12012

Unavailable

4

Distance bush 10x15/18/24,5x8,

46180008

Unavailable

5

Distance bush 10x15/18/24,5x10

46180010

Unavailable

6

TAP ADJ. REBOUND

46180522S1

Unavailable

9

Round-wire snap ring 38x1,5

40540015

Unavailable

10

PLUG SCREW M5X6 CPL.

36120151S

Unavailable

11

ADJUSTING NUT CPL.

36120418S

Unavailable

12

SHOCK SPRING 65N/MM - 120MM

93010221S

Unavailable

12

SHOCK SPRING L= 120 75 N/MM WH

93010222S

Unavailable

12

SHOCK SPRING 85N/MM - 120MM

93010223S

Unavailable

13

Spring retainer 27x53x3

36120461

Unavailable

14

shock absorber pisone set SX M

R310

Unavailable

15

shock absorber repair kit SX M

R311

Unavailable

16

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable
